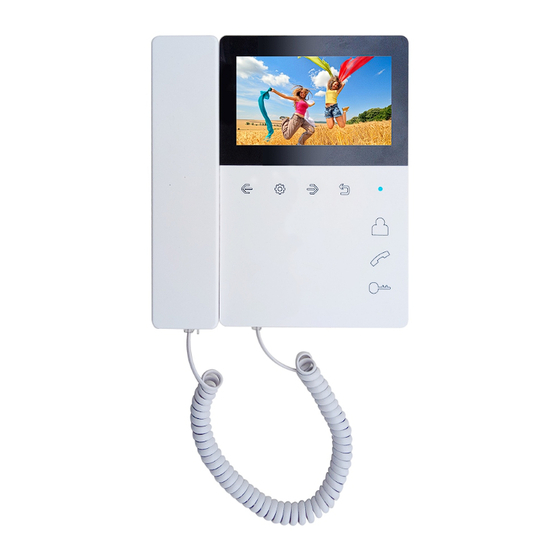

COLOR VIDEO DOOR PHONE
USER MANUAL
Model no.: IMATB4H
Thank you for purchasing our products.
The company is not responsible for any safety accidents caused by abnormal
operation of the product.
Please carefully read this User's Guide(in particular, precautions for safety) before
using this product .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMATB4H and is the answer not in the manual?

Questions and answers

Related Manuals for Micron Security Products IMATB4H

Summary of Contents for Micron Security Products IMATB4H

  • Page 1 COLOR VIDEO DOOR PHONE USER MANUAL Model no.: IMATB4H Thank you for purchasing our products. The company is not responsible for any safety accidents caused by abnormal operation of the product. Please carefully read this User's Guide(in particular, precautions for safety) before...

  • Page 2: Table Of Contents

    Index 1. Warning and Caution 2. The function and name of each part 3. Features and main function 4. Package contents 5. Wiring diagram 6. Installation 7. Buttons function 8. Operation guide 9. System setting 10. Specification Version1.1...

  • Page 3: Warning And Caution

    1. Warning and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. Warning It indicates disassembly. Death or serious injury is expected. It indicates prohibition of contact. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket.
  • Page 4 It indicates prohibition. Caution It indicates disassembly. A injury or property losses are expected. It indicates prohibition of contact. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. CAUTION The socket holes are lager than usual.

  • Page 5: The Function And Name Of Each Part

    2. The function and name of each part 2.1 Front view Function description Item Handset Answer/Hang up Choose/Adjust Left button Menu button Enter system settings/Confirm Right button Choose/Adjust Back button Back/Hang up Unlock button Unlock Answer button Answer/Call Monitor button Monitor Power indicator light Indicator light...
  • Page 6 2.1 Rear view Speaker 1 Port 1 Port 2 Ports Port 3 Port 4 Speaker 2 Microphone Ports detail For connecting IMARJ Port 1 Port 2 Port 3 Port 4 For connecting slave monitor For connecting power supply Page 4...

  • Page 7: Features And Main Function

    3. Features and main function MODEL LIST 3.1 Features 4.3" color digital LCD, high definition Talk hands free or with handset, meet different people’s favor Friendly interface, simple operation 12 polyphonic ring-tones switch freely 3.2 Main function Unlock Broadcast function Monitor listening Call transfer Make internal call to other monitors...

  • Page 8: Wiring Diagram

    5. Wiring Diagram The DIP switch in IMAMD the last IMAMD should set to be ON. Port 1 V-OUT V-IN DATA IMARJ Cat-5 5 wires Cat-5 A D 1 DATA IMAMD IMARJ Cat-5 5 wires A D 1 DATA IMARJ V-OUT V-IN 5 wires...

  • Page 9: Installation

    6. Installation 1.Refer to relevant wiring diagram for the system you have chosen and ensure you have the correct cable. 2.Determine Monitor positions and heights: -suggest to install at 1.5~1.6Meters; -suggest distance between indoor monitor and doorbell is at least 350 mm; 3.Ensure no power supply connection before installation finished 4.Take off the bracket from the back of the monitor.

  • Page 10: Buttons Function

    7. Buttons function Buttons Functions Press this button to wake up the screen and display the system Settings menu in standby mode. Can able to enter into lower menu by adjusting left/right button to choose and 【Menu button】 confirm any function Press this button in the "Setting"...

  • Page 11: Operation Guide

    8. Operation guide DEVICE ADDRESS set Press to go to system settings, press to go to DEVICE ADDRESS. Press to select the item, press to set the master monitor to be ROOM 1. For slave monitors, please set the address to be ROOM 2/3/4.
  • Page 12 press to enter volume adjustment interface. Press switch to BRIGHT/CONT/COLOR/display model interface, press to adjust as the user wants. “Don’t disturb” function You can use SYSTEM SETTINGS menu to turn “DO NOT DISTURB” function on or off. If enable this function, there will be no chime during ringing/intercom/broadcast.
  • Page 13 If there are slave monitors in the same apartment Internal call among monitors If you want to make internal call to another monitor in the same apartment, press at standby state. If there are more than 1 slave monitors in the same apartment, you need to press to select target room no., then press to confirm the call.

  • Page 14: System Setting

    how to enable the CAN BE MONITORED function. 9. System setting In standby status ,short- press button to enter system setting menu. Setting items Options Notes CHIME TIME Default 30seconds , (10 - 60 seconds adjustable) CHIME VOLUME Default 03, 01 - 07 adjustable. Door1 ring type 01 by default, 00-11 optionals RING TYPE...

  • Page 15: Specification

    10. Specification Items Content LCD Screen 4.3inch digital screen Resolution 480 x272 Intercom function Hands free / Handset Audio frequency 300mVp-p (1KHz， 300 Ohm load) ＜3% Audio Distortion Frequency Range 400-3.5K 30m（RVV4*0.5），100m Intercom distance （RVV2*0.5+SYV75-3 ） Video 1Vp-p 75OHM（Input） Button Touch buttons Outdoor panel Support 2 (5PIN*1,4PIN*1)
  • Page 16 The parameters of product are subject to changes without prior notice.
