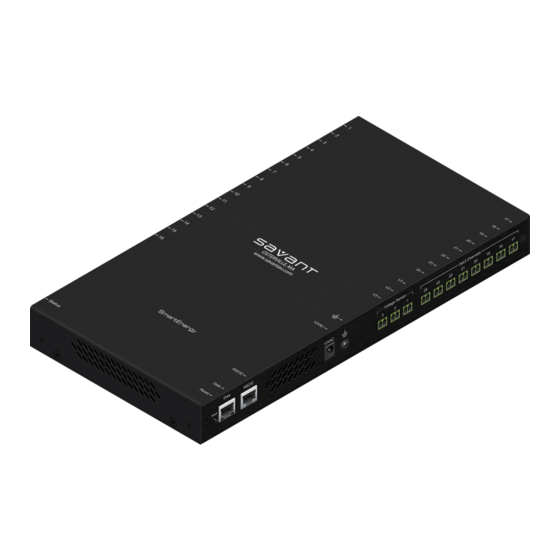

Savant SEM-1024 Deployment Manual
Standalone energy monitor
Hide thumbs
Also See for SEM-1024:
- Quick reference manual (2 pages) ,
- Quick reference manual (2 pages)
Table of Contents
Advertisement
Quick Links
Savant® Standalone Energy Monitor Deployment Guide
Document Number:
009-1928-01
Document Date:
July 2020
Document Supports:
da Vinci 9.2.2 and higher
This guide describes the process for installing, configuring, and adding a Savant Energy Monitor to a RacePoint Blueprint™ configuration. Savant Energy Monitors
are connected to a home's existing electrical panel using clip-on current transformers, and to the Savant Host via the local network. They allow the user to
monitor all aspects of energy usage including heating, appliances, lighting, and more. Savant Energy Monitoring can provide data on the home's overall energy
use and production that is viewable any time - locally or remotely.
IMPORTANT! This guide focuses on deploying a Savant Energy Monitor for use in the Savant Pro App.
Products supported by this guide include:
–
SmartEnergy Monitor [SEM-1024]
–
Savant Standalone Energy Monitor [SEM-2015]
Copyright 2020 Savant Systems, Inc
- 1 -
45 Perseverance Way, Hyannis, MA 02601
Savant.com
| 508.683.2500
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Savant SEM-1024
Summary of Contents for Savant SEM-1024
- Page 1 This guide describes the process for installing, configuring, and adding a Savant Energy Monitor to a RacePoint Blueprint™ configuration. Savant Energy Monitors are connected to a home’s existing electrical panel using clip-on current transformers, and to the Savant Host via the local network. They allow the user to monitor all aspects of energy usage including heating, appliances, lighting, and more.
-
Page 2: Table Of Contents
4. Blueprint ..........................12 4.1. Adding a Energy Monitor to a Configuration ..........12 4.2. Energy Monitor Data Table .................. 13 Add Parent Circuit (SEM-1024 Only) ............... 13 Add Parent Circuit (SEM-2015 Only) ............... 14 Adding a Child Circuit ................... 15 Example Data Tables .................... - Page 3 All safety instructions below must be read, understood, and carefully followed that each dealer, integrator, installer, etc. access and read all relevant technical under all applicable circumstances when working with any Savant equipment. documentation. Savant technical documentation can be located by visiting Follow all input power ratings marked on product near power input! Savant.com.
-
Page 4: Deployment Steps
Deployment Steps Follow the steps below to successfully deploy a Savant Energy Monitor. This page can be used as a checklist to mark progress as steps are completed. Review product specifications and connection details ................................ See the device’s Quick Reference Guide on the Savant Customer Community. -
Page 5: System Diagrams
2. System Diagrams 2.1. Single Phase Consumption Only (Typical 200 Amp Service) Power from Utility Main Branch Monitors Voltage Transformers Current Transformers Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 6: Three Phase Consumption Only
2.2. Three Phase Consumption Only Main Branch Monitors Voltage Transformers Current Transformers Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 7: Single Phase With Power Generation
TIP! The diagram above shows one example of how to connect solar cells to an electrical system. While the wiring method may vary across individual systems, current transformers should always be placed to monitor the incoming lines as close to their junctions as possible. Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc... -
Page 8: Installation
If no sub-wall is available, wall anchors can Do not over-tighten. be used. Set the SEM-1024 onto the wall where it will be mounted. The SEM-1024 can be positioned with ports facing vertically or horizontally. Level the unit and mark the positions of the mounting holes on the wall. -
Page 9: Din Rail
Align the Universal Din Rail Mounting Clip on the bottom of the of the unit. unit. NOTE: The clip can be mounted facing either direction. Attach using the screws from the mounting plate. Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 10: Voltage Transformers
Voltage transformers should be installed on there own breakers with no load attached. Savant requires a licensed electrician be used to connect the SEM-VT01 to the high voltage side. Follow instructions below to install. The instructions assume the electrical outlet boxes are mounted and an electric circuit is run into the box. -
Page 11: Current Transformers
Route the wire through a cable clamp on the side of the panel and run wire to the SEM-2015/SEM-1024. Following steps below, install the supplied 2-pin screw down connector onto the wires of each current transformer. -
Page 12: Blueprint
4. Blueprint The subsections below describe the required steps for configuring a Savant Energy Monitor device within RacePoint Blueprint. 4.1. Adding an Energy Monitor to a Configuration From on open Blueprint configuration do the following: Components All Components Click Show Library. -
Page 13: Energy Monitor Data Table
IMPORTANT! When configuring SEM-2015 devices, the size and voltage source must be defined within the component’s web UI. Refer to the Web User Interface section below for details. Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 14: Add Parent Circuit (Sem-2015 Only)
Production Type Main Power None Choose... Feed SEM2015 None Utiliy Ro... Phase 1 Channel 250 A Voltage Sensor 1 Phase 2 Channel 250 A Voltage Sensor 2 Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 15: Adding A Child Circuit
Select an Image for the circuit. Enter Group. Use the drop-down or type a new group. Select the Channel. 10. Select Parent Circuit. Select the Savant Zone. Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... -
Page 16: Example Data Tables
Phase 1 Channel hvac Choose... Consumption SEM2015 None Utiliy Ro... Phase 1 Channel Phase 2 Channel Family Room Room Choose... SEM2015 None Family R... Consumption Phase 1 Channel Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828... - Page 17 Room Choose... SEM2015 None Family R... Consumption Phase 1 Channel Gas Generator None Choose... SEM2015 None Utiliy Ro... Generator Production Phase 1 Channel Phase 2 Channel Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828...
- Page 18 Work Shop Work Sh... Consumption Phase 1 Channel Shop Heat Pump hvac Choose... SEM2015 02 Work Shop Work Sh... Consumption Phase 1 Channel Phase 2 Channel Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828...
-
Page 19: Web User Interface (Web Ui Sem-2015 Only)
The SEM-2015 includes a web-based user interface (web UI) with additional programming and configuration options, some of which are required for successful deployment. To access and configure the Web UI, follow the steps listed below from the Savant Development Environment (SDE/MacBook) while connected to the same local network as the SEM-2015. -
Page 20: Appendix A: Accessories
Appendix A: Accessories Description Image SEM-VT01 SEM-VT01 is an optional Voltage sensor, for use in conjunction with Savant Energy Monitors. SEM-020A5 SEM-020A5 is a 5 pack of 20 Amp, split-core, clip-on current transformers. SEM-050A5 SEM-050A5 is a 5 pack of 50 Amp, split-core, clip-on current transformers. - Page 21 SEM-250A1 is a 250 Amp, split-core, clip-on current transformer. SEM-400A1 SEM-400A1 is a 400 Amp, split-core, clip-on current transformer. SEM-600A1 SEM-600A1 is a 600 Amp, split-core, clip-on current transformer. Savant Standalone Energy Monitor Deployment Guide Copyright 2020 Savant Systems, Inc 009-1928-01 | 200828...
-
Page 22: Appendix B: Energy Monitor Data Table Index
Production: Used for any circuits that add power to monitored system. Feed: Designates that this circuit is the Main Power input from the utility company. Allows the user to select an icon to appear in the Savant Pro App for the selected load to be monitored. Available icons are Image Geo-Thermal, Wind, Stove, Solar, Pool Garage, HVAC, Dish Washer, Washing Machine, None, Lighting, Hydro, Refrigerator, Room, Water Heater, and Appliances. - Page 23 Under this category, for those circuits that have Savant-controllable resources, double click on Choose… to be presented with Control a Service or Zone selector. Convenient links will be presented within Savant’s end-user Energy Monitoring UI to control these resources and impact energy utilization.
- Page 24 Savant Systems, Inc. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
