TDK Varistors(SMD) AVF16 Series Specifications

Varistors(SMD)
For High-speed Differential Signal Line
AVF16 Series
A low-voltage varistor applicable in high frequencies has been manufactured by using TDK circuit and material technology.
FEATURES
• Chip size: 1608 (L1.6× W0.8mm), applicable in 2 Line-in 1 (2in1)
differential line.
• 2GHz or more of cutoff frequency in differential mode (Sdd21).
• Superior electrostatic absorption characteristics due to reduction
of varistor voltage.
• Meeting Electrostatic Discharge Test IEC61000-4-2, HBM
(human body model) contact 8kV.
APPLICATIONS
• Protective circuit for high-speed differential signal from static
electricity
• HDMI, USB, IEEE1394, etc.

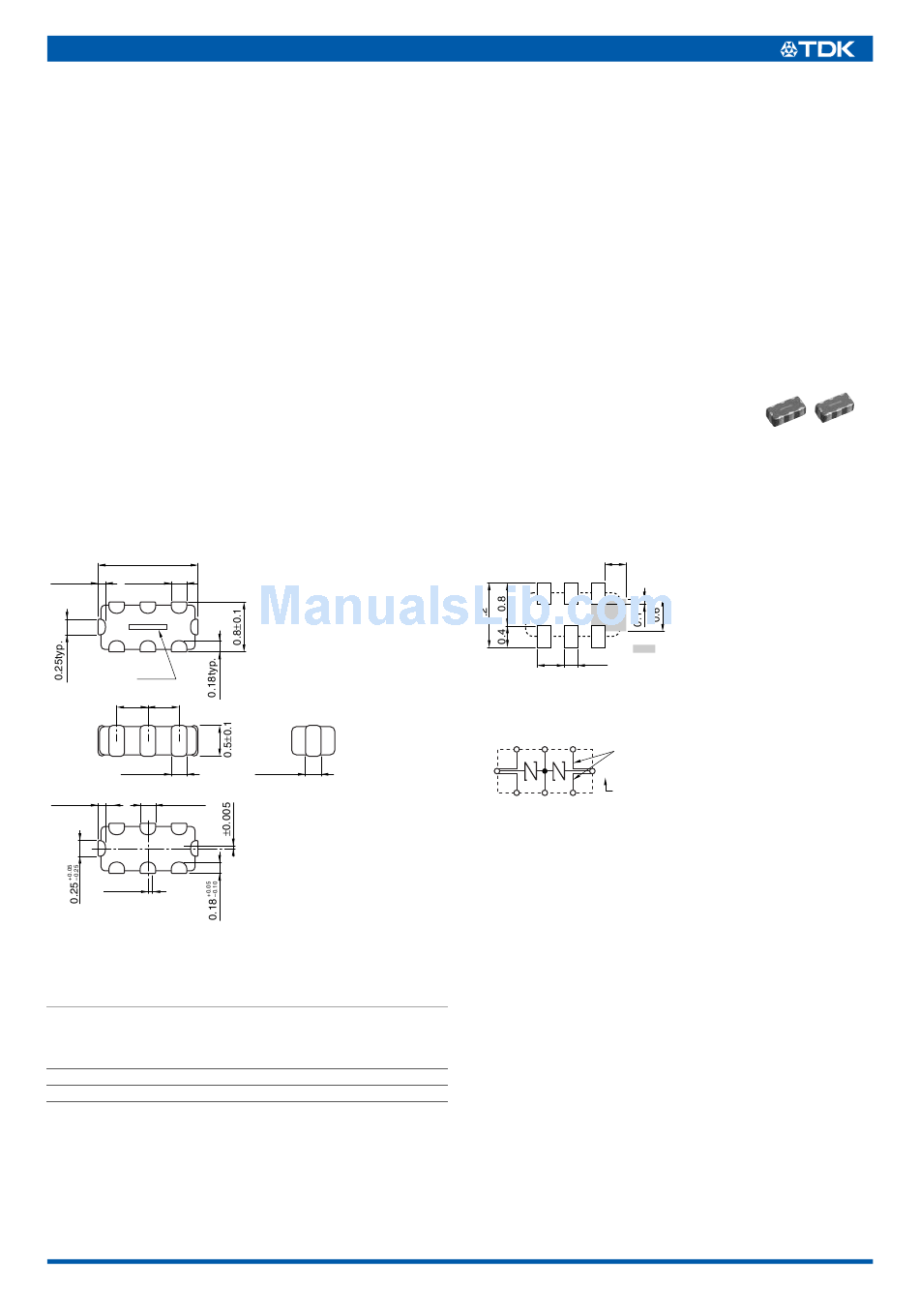

SHAPES AND DIMENSIONS
1.6±0.1
0.12typ. 0.25typ.
2 6 4
∗1 ∗1
NC NC
1 5 3
∗2
Mark
P P
P=0.5typ.
0.25±0.1
+0.05
0.25±0.1
0.12
–0.12
±0.065
∗1
Do not solder the terminal NC(not connected) with land etc.
∗2
Mark is unrelated to the polarity (directionality) of the terminal.
ELECTRICAL CHARACTERISTICS
Varistor voltage
Part No. V A
1m
(V)
AVF16C212A000F205 12
AVF16C225A000F405 25
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
0.25±0.1
Dimensions in mm
Maximum Cut-off
continuous frequency
voltage [Sdd21]
Edc(V) (GHz)
5.5 2 min.
5.5 4 min.
RECOMMENDED PC BOARD PATTERNS
0.4
0.5 0.25
CIRCUIT DIAGRAM
IN1 GND IN2
Transmission line
NC NC
Not externally connectable
OUT1 GND OUT2 : Terminal for internal circuit connection
Conformity to RoHS Directive
Area of solder resist
Dimensions in mm
