Summary of Contents for Pro Lite DIGI-Q

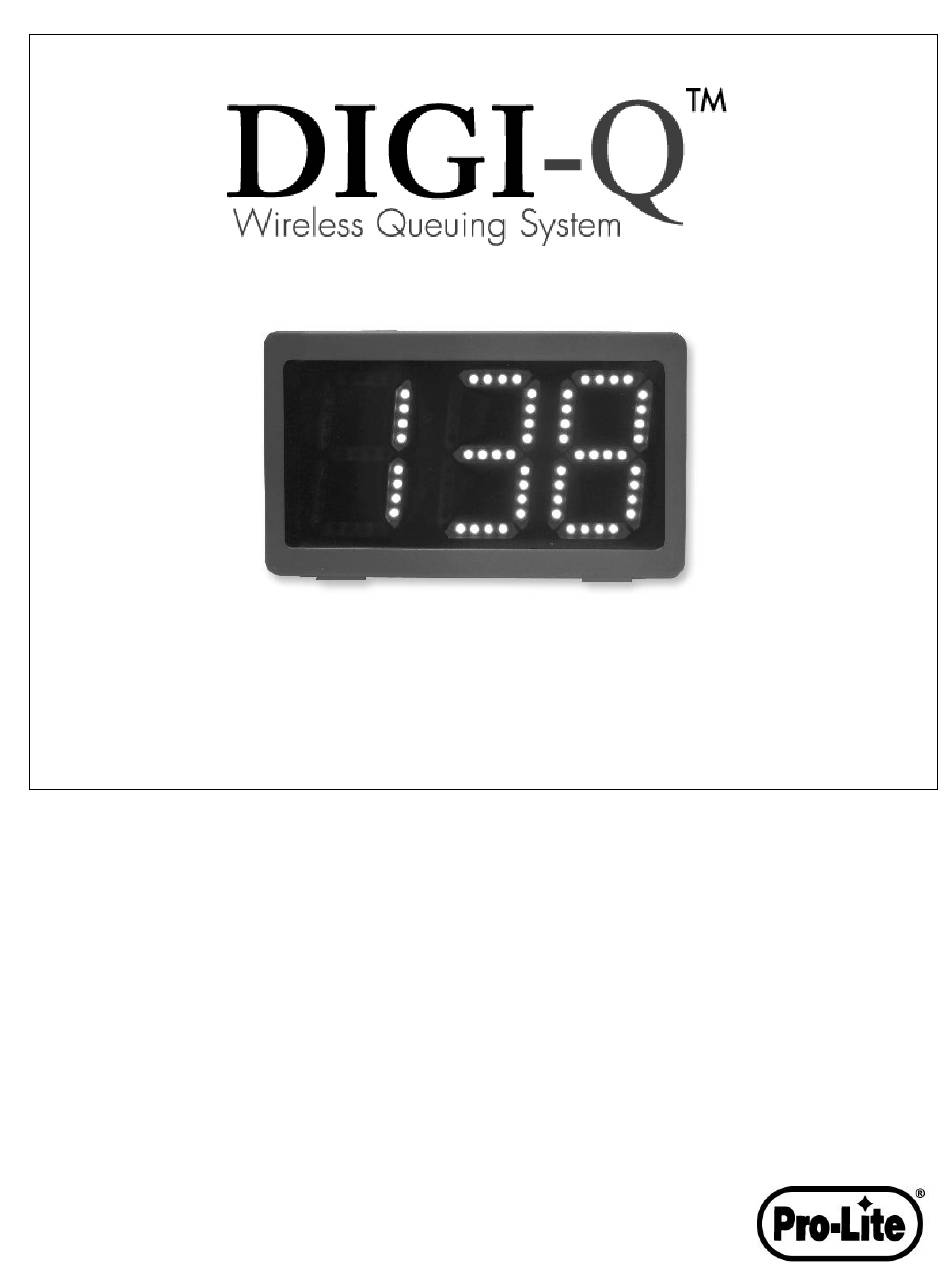

- Page 1 User Manual What’s in the box Ticket Dispenser Installation Ticket Roll Installation LED Queuing Unit Installation Operation / Troubleshooting Contact Us...
- Page 2 What’s in the box? LED queuing unit Power adaptor Wireless transmitter Ticket number dispenser Ticket dispenser hardware o “L” bracket o Swivel with mounting screws (4 pcs) Ticket roll holder Ticket number roll Ticket Counter Dimensions: 12.625” (L) 6” (H) 3.625”...
- Page 3 Ticket Dispenser Installation 1) Mount the “L” bracket on a flat sturdy surface. Note: “L” bracket surface mounting screws are not included. 2) Using the included mounting screws, install the Swivel onto the “L” bracket. 3) Snap the swivel onto the Ticket Dispenser. 11.75”...
- Page 4 Ticket Roll Installation 1) Press the release buttons to open the Ticket Dispenser. 2) Remove the Ticket Roll Holder from dispenser 3) Insert the Ticket Roll Holder through the center of the Ticket Number Roll. 4) Insert the assembled roll back into the Ticket Dispenser. 5) Before closing dispenser, feed the ticket to the front of the dispenser mouth.
- Page 5 LED Queuing Unit 1) Sit LED Unit on a flat sturdy surface. 2) Make sure the power switch is off (down position). 3) Remove the back cover from unit. 4) Connect the power adaptor to a wall outlet. 5) Connect the power connector to the inner connection inside the unit. 5) Replace back cover onto unit.
- Page 6 Operation Simply press the button on the Wireless Transmitter to advance the number. A beep will sound every time the button is pressed. Troubleshooting The LED Queuing Unit does not turn on. Make sure the light on the power adaptor is on. If it is not on, please try another outlet.
- Page 7 Phone: 714-668-9988 Fax: 714-668-9980 Web: www.pro-lite.com Web Support: www.pro-lite.com/support Email (Sales): sales@pro-lite.com Email (Support): support@pro-lite.com...
