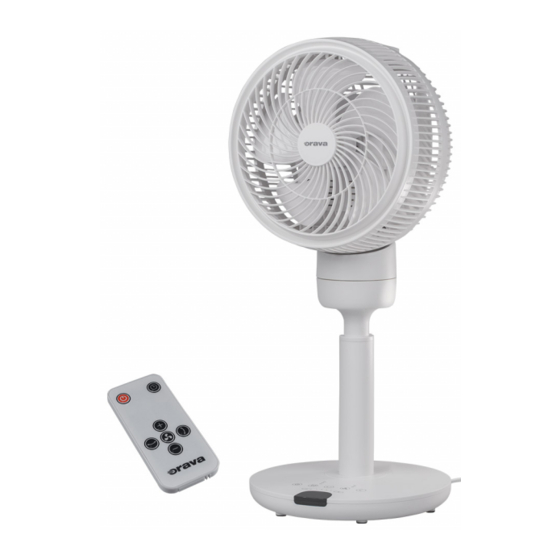

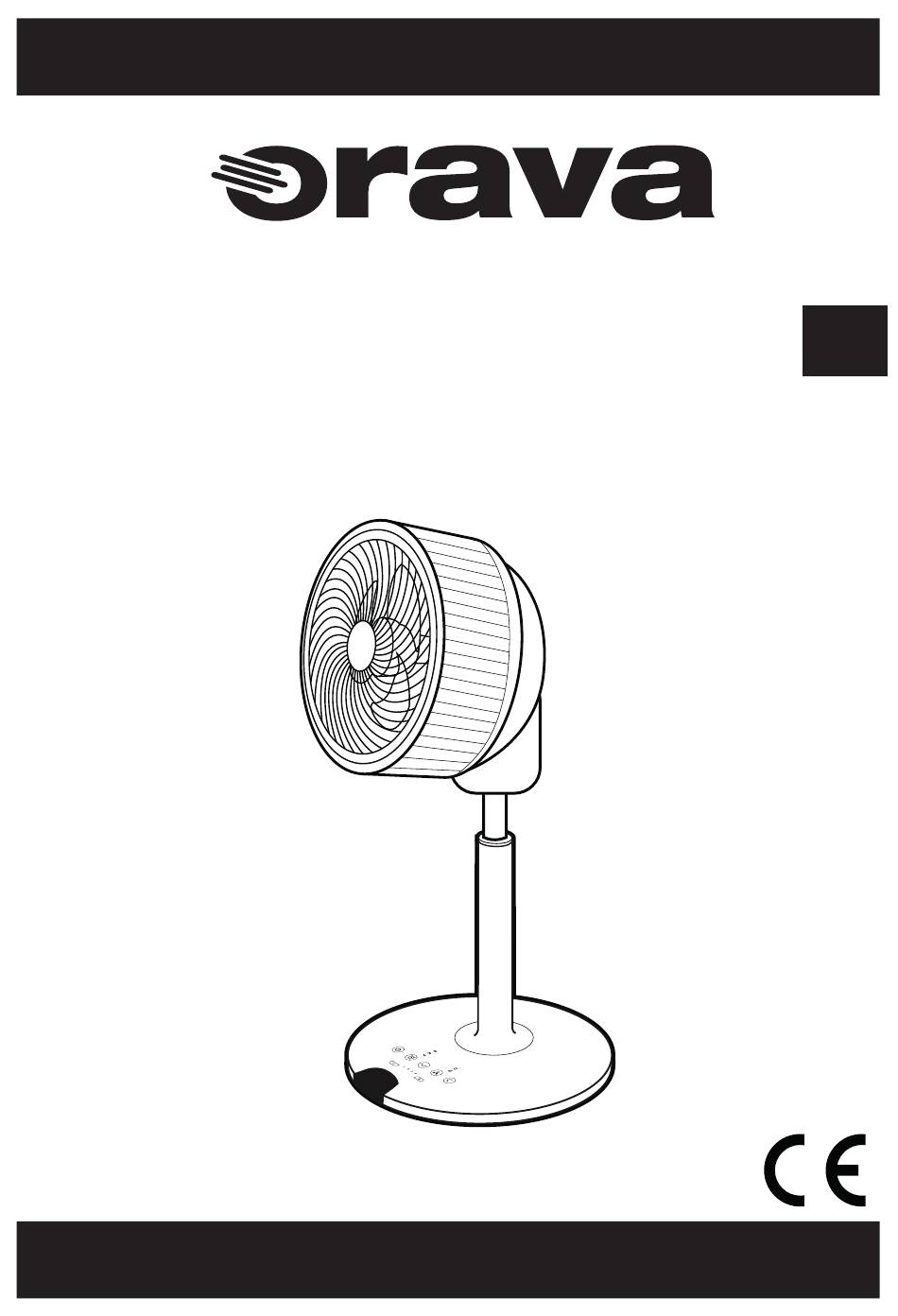

- Page 1 Indoor fan SF-300 Instruction manual SF-300...
-
Page 2: General Safety Instructions And Warnings
ORAVA electrical appliances are manufactured according to current state of the engineering and recognized safety-technical rules. Nevertheless, incorrect or improper use, or use contrary to designation may result in the risk of injury or endanger the life of the user or third person, damage to the device and other material values. - Page 3 • Failure to follow the safety instructions and warnings is forbidden by the manufacturer for any damage to health or property! • Keep the instruction manual as close to the device as possible throughout its service life. Always keep the instruction manual together with the appliance for future use and use by new users.
- Page 4 • If the protection class of the product is different from IPX0, this information is then displayed on the label of the appliance or in the technical data of the operating instructions. • Other characteristics of the domestic operating environment (mechanical stress - vibrations and vibrations, occurrence of plant, animals, weather effects ...) are negligible in terms of effect on the correct and safe use of electrical equipment.
- Page 5 • Do not pull off the power cord by pulling the cable. Disconnect the power cord by pulling the plug behind the power cord plug. • If you use an extension cord, make sure that the total rated power of all devices connected to the extension cord does not exceed the max.
- Page 6 1.4 Safety of persons • This appliance is intended for use and operation by persons without electrotechnical qualification - lay people, according to the instructions specified by the manufacturer. • Device operation includes activities such as switching on and off, user manipulation and setting of operating parameters, visual or auditory inspection of the equipment, and user cleaning and maintenance.
- Page 7 1.5 Cleaning, maintenance and repairs • Observe the normal user cleaning and maintenance of the appliance in the recommended way. Do not use solvents or harsh cleaners for cleaning. Pollution and visible stains from finger contact, respectively. The hands can be cleaned using detergent detergents specially designed to clean household appliances.
- Page 8 2. Special Safety Instructions. Read carefully! • Electrical equipment is designed and manufactured in such a way as to allow for safe operation and use by persons without a professional qualification. Despite all measures taken by the manufacturer for safe use, handling and use, they carry with them some residual risks and associated potential hazards.
- Page 9 Unpacking / Packaging • Unpack and remove all parts and accessories of packaging materials, labels, and labels before putting the device into operation. Keep all packaging materials in a safe place or keep them out of the reach of children and inappropriate persons. There is a risk of serious injury! There is a risk of choking! Check / Commissioning...
- Page 10 Location / Installation • The appliance is intended for use as a stand-alone appliance. Do not attach the appliance to the building parts of the living areas - walls, ceilings, etc. Warning! • Do not place or operate the appliance where it is likely to overturn it. Only use the device on a horizontal, flat, stable mat - on the table or on the floor.
- Page 11 • Do not expose the device to: - direct sunlight, sources and equipment producing heat, - vibration and mechanical stress, - excessive dust, - water and excess moisture, - insect, - aggressive effects of the external environment. There is a risk of serious injury! There is a risk of damage to equipment or other property damage! Operation / Supervision Warning!
- Page 12 Warning! • Do not use the appliance in a fire or explosive environment in the presence of flammable substances and vapors, mist or dust, and under atmospheric conditions, where air is easily propagated after ignition. • Do not use the appliance near gas stoves or open flame sources.
- Page 13 • The device contains sharp-edged rotating parts. Never place your fingers in the space with these parts and do not bend any other objects. • Always wait for the rotating parts to stop completely before handling the device. There is a risk of serious injury! •...
- Page 15 Advice • When using the control, route it towards the signal sensor on the fan. Notes • Do not leave the remote control in very hot or humid places. • Do not place the fan so that the sensor of the remote-control signals is exposed to direct sunlight or light from the lights.
-
Page 16: Cleaning And Maintenance
Cleaning and maintenance In order for the fan to function properly, it needs regular cleaning. 1. Switch off the appliance, disconnect the power cord from the mains and allow the engine to cool completely. 2. Clean all parts from dust and dirt. Use only a slightly moistened cloth for cleaning. -
Page 17: Technical Specifications
Technical specifications Power supply: 220 - 240 V~ 50/60 Hz Power consumption: 55 W Protection class: II (protection against electric shock is ensured by double insulation) Blade diameter 23 cm Min. height: 65 cm Max. Height: 75 cm Weight: 3,3 kg Noise level: 55 dB (A) The declared noise emission of this appliance is 55 dB (A), which is the... - Page 18 Producer: ORAVA retail 1, a.s. Seberíniho 2 821 03 Bratislava Slovenská republika Importer: ORAVA retail 1, a.s. ORAVA distribution CZ, s.r.o. Seberíniho 2 Ostravská 494 821 03 Bratislava 739 25 Sviadnov Slovenská republika Česká republika DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT The symbol on the product or on its packaging indicates that this product does not belong to household waste.
