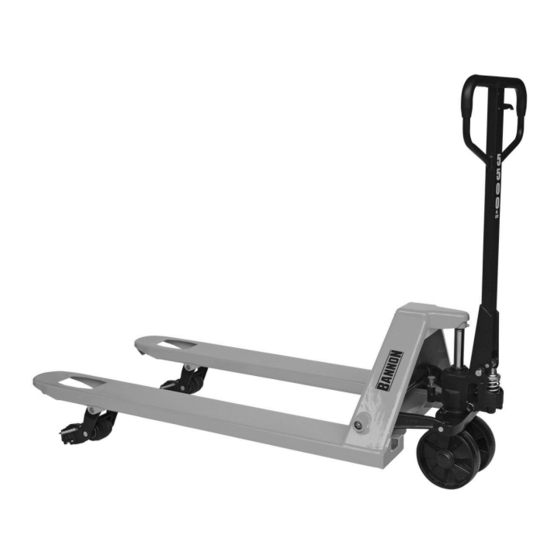

5500-lb. capacity multi-directional pallet jack
Hide thumbs Also See for 55829:
Table of Contents

Advertisement

Quick Links

Download this manual
BANNON
5500-Lb. Capacity
Multi-Directional Pallet Jack
OWNER'S MANUAL
_6wARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Item# 55829
