Summary of Contents for Trikdis RL14

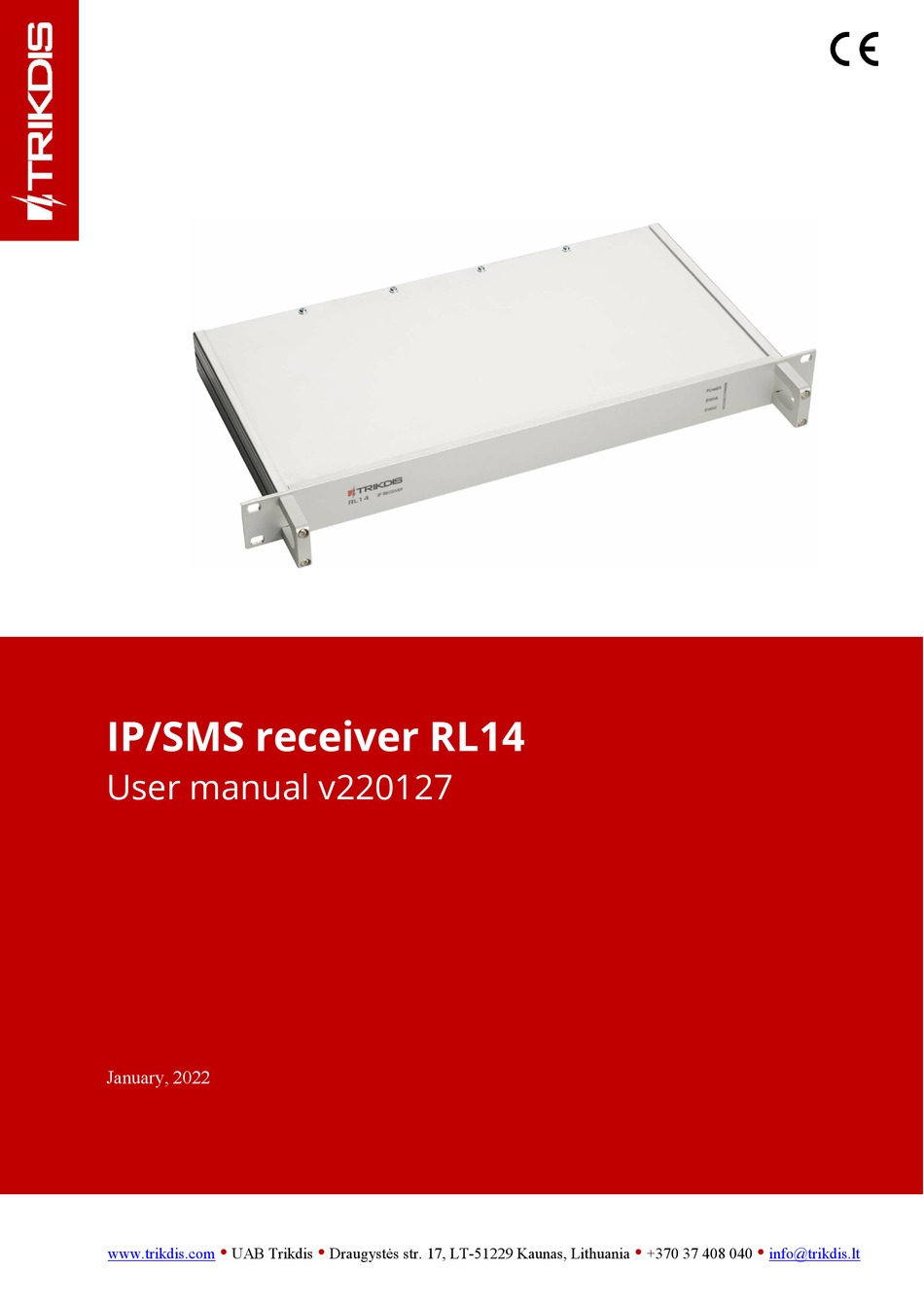

- Page 1 IP/SMS receiver RL14 User manual v220127 January, 2022 www.trikdis.com UAB Trikdis Draugystės str. 17, LT-51229 Kaunas, Lithuania +370 37 408 040 info@trikdis.lt...
-
Page 2: Table Of Contents
User Manual v220127 IP/SMS receiver RL14 Contents Safety requirements ..........................3 Warranty ..............................3 III. About receiver ............................4 Receiver functionality ..........................4 Technical parameters ..........................5 Equipment ..............................5 VII. Receiver elements ..........................6 A. Front view and light indication........................ 6 B. -
Page 3: Safety Requirements
User Manual v220127 IP/SMS receiver RL14 Safety requirements IP/SMS receiver RL14 is an electrical device, therefore it may only be installed by qualified specialists following this manual. IP/SMS receiver RL14 must be operated following this manual. Warranty According to the user manual of the receiver and general regulations for installing electrical equipment, the manufacturer provides a 24-month warranty to the installed and operated product. -
Page 4: About Receiver
III. About receiver IP/SMS receiver RL14 is purposed for Central Monitoring Stations (CMS). It is designed to receive messages transmitted through Trikdis transmission modules, which are sent in TCP/UDP protocols or SMS messages. After processing received messages, it sends the data to the monitoring software through LAN or RS232 port. -
Page 5: Technical Parameters
User Manual v220127 IP/SMS receiver RL14 Technical parameters Parameter Description Number of IP communicators Unlimited Number of reception channels Initial license allows two channels Communication protocols TCP/UPD TRK-3, TRK-6, TRK-7 Physical port of network adapter card RJ-45 (FastEthernet 10/100) Modem of integrated SMS receiver... -
Page 6: Receiver Elements
User Manual v220127 IP/SMS receiver RL14 VII. Receiver elements A. Front view and light indication. Front view of the receiver Light indication Indicator Description Power Green light when power supply is on. Green light when physical and protocol connection between the receiver and message monitoring software is online. -
Page 7: Preparing The Receiver For Operation
Insert an already registered regular size SMS card of the chosen network provider into receiver‘s SMS card slot in order to receive SMS messages from Trikdis message transmission modules. Position the receiver on a solid clean horizontal surface, unscrew fixing screws and remove the top cover. - Page 8 Install software IPcomControl v4 (see Configuring the receiver) on the computer that will be used to configure receiver RL14. Change the IP address of the computer that will be used to configure receiver RL14 to that required by the receiver manufacturer (see item A under section Configuring the receiver).
-
Page 9: Configuring The Receiver
IP/SMS receiver RL14 Configuring the receiver Operation parameters of receiver RL14 are set and edited using software IPcomControl v4 on a computer with OS MS Windows operating in the same LAN. Software may be found in the supplied CD or on www.trikdis.lt. -
Page 10: Connecting To A Receiver Operating In Lan
User Manual v220127 IP/SMS receiver RL14 5. Enter the User name (administrator) and password (admin) when prompted. Click Login. 6. Select IPcomControl v4 tab Configure. Click Get. Enter LAN values into boxes Primary IP, Subnet and Gateway in order to connect the receiver to the network. Click Set. - Page 11 User Manual v220127 IP/SMS receiver RL14 2. Enter the User name (administrator) and password (admin) when prompted. Click Login. 3. Click Read in an open window of software IPcomControl v4. Modem – status (offline/online) of the receiver physical and programmable connection SMS modem GM15 Offline (receiver event E/R 753).
-
Page 12: Configuring Remote Server Ip Address For Communication Channel Testing, Receiver Sound Signals And Clock (Tab Configure)
User Manual v220127 IP/SMS receiver RL14 C. Configuring remote server IP address for communication channel testing, receiver sound signals and clock (tab Configure). Receiver sound signals 1. Every received message will be followed by a sound signal. 2. Sound signal will indicate accumulation of messages in TCP/IP buffer. -
Page 13: Controlling Communication With Gprs And Gsm Objects (Tab General)
Receivers. – RS232 port for directing data to message monitoring software. Port name: COM0 – Integrated SMS receiver data port. Operation mode must be set to “Trikdis”. COM1…COM3 – Receiver RS232 ports. Card_1…Card_4 – receiver card sockets. www.trikdis.com January, 2022... -
Page 14: Sms Messages Using Smpp Protocol (Tab Smpp Settings)
SMPP – protocol for SMS message transmission using TCP/IP communication, i.e. it allows receiving SMS messages sent by Trikdis message transmission modules via LAN instead of integrated SMS modem. Number of receivers that may be added by double-clicking on cell Click to add new SMPP receiver is limited by license. -
Page 15: Directing Messages To The Message Monitoring Software (Tab Outputs)
User Manual v220127 IP/SMS receiver RL14 Data stream redirection parameters: Line number – specify line number Protocol – specify data stream transfer protocol Port – specify input port COM input - specify physical input port ... -
Page 16: Message Filtering (Tab Filter)
User Manual v220127 IP/SMS receiver RL14 Message filtering (tab Filter). IP address to which all received messages are additionally directed may be set in tab Filter. IP address and port number to which all received messages will be sent are entered in field Raw data. -
Page 17: User Permissions (Tab Users)
View events and objects – specify permission to open software IPcomControl v4 tabs Data and Objects. Set zone bypass – specify permission to send control commands to Trikdis control panel installed in a secured object in order to activate or deactivate Zone bypass mode in a specific zone. ... - Page 18 User Manual v220127 IP/SMS receiver RL14 Receiving Messages (tab Data) Received messages can be seen in the tab Data. Click Clear to delete all entries. Filter bar Use filters to see wanted data from selected receivers, Objects or others. After selecting filter press button Apply.
-
Page 19: Resetting Default Parameters
Messages are sent with set receiver, line numbers and object identification numbers: 1) Received from the device from object, if event is connected with the object. 2) 0000, if event is connected with general function events. List of receiver RL14 event codes Event Event name... - Page 20 User Manual v220127 IP/SMS receiver RL14 E350 Connection Transmission a) Transmission module is working in a GPRS mode, trouble module ID no messages were received from it within a set time period. b) Transmission module is working in GSM mode, no messages were received from it within a set time period.
- Page 21 User Manual v220127 IP/SMS receiver RL14 E733 WAN cable 0000 Receiver Network cable removed from Ethernet connector. disconnected R733 WAN cable 0000 Receiver Network cable plugged back into Ethernet connected connector. E751 0000 Receiver GSM modem alarmed about lost connection to GSM connection is network by a service message.
-
Page 22: License Activation
User Manual v220127 IP/SMS receiver RL14 XII. License activation Parameters of the initial license can be changed (upgraded) by installing a new license. Go to Options → Activate product browse and select license file, which is in .lic format. To install new license press the Apply button.
