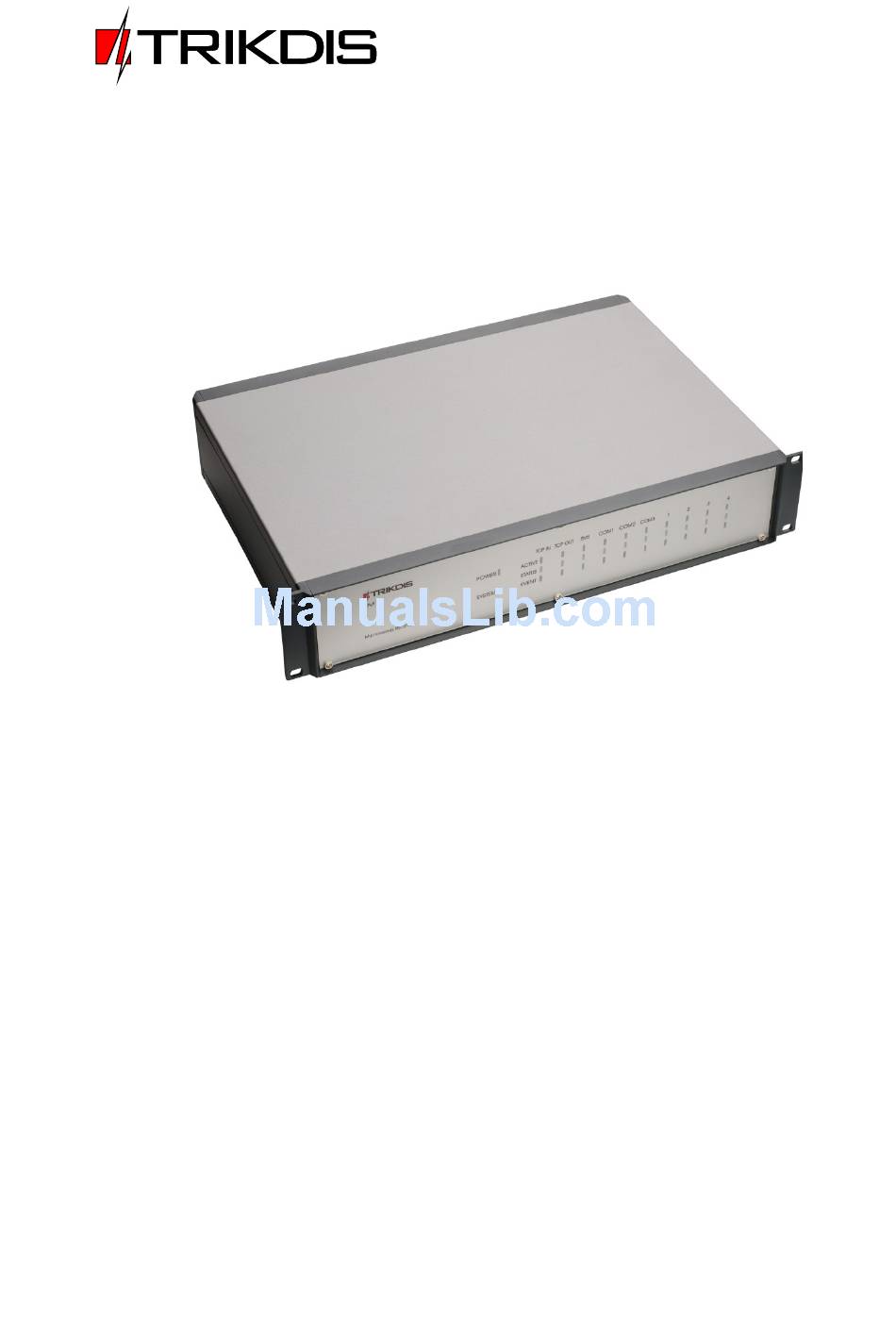

- Page 1 Multichannel IP/SMS receiver RM14 User Manual UAB TRIKDIS Draugystės g. 17, LT-51229 Kaunas Tel.: +370 37 408040 Fax: + 370 37 760554 E-mail: info@trikdis.lt www.trikdis.lt...
-
Page 2: Table Of Contents
User Manual v151003 Multichannel receiver RM14 Contents Safety requirements ................... Error! Bookmark not defined. About your receiver ..................Error! Bookmark not defined. III. Technical parameters ................. Error! Bookmark not defined. Equipment ....................Error! Bookmark not defined. Receiver elements ............................. 6 Front view and light indication. -
Page 3: Safety Requirements
Safety requirements Multichannel receiver RM14 is an electrical device, therefore it may only be installed by qualified specialists following this manual and regulations for installing electrical equipment. Multichannel receiver RM14 must be operated following this manual and regulations for safe... -
Page 4: About Your Receiver
Multichannel receiver RM14 About receiver IP/SMS receiver RM14 is purposed for Central Monitoring Stations (CMS). It is designed to receive messages transmitted through Trikdis transmission modules, which are sent in TCP/UDP protocols or SMS messages. After processing received messages, it sends the data to the monitoring software through LAN or RS232 port. -
Page 5: Technical Parameters
Dimensions 19” 2U (450 x 50 x 320 mm) Weight 3.8 kg Equipment Multichannel receiver RM14 1 pc. 2.5 m length GSM antenna with a magnetic pad 1 pc. 1.5 m length power supply cable 1 pc. -
Page 6: Receiver Elements
User Manual v151003 Multichannel receiver RM14 Receiver elements Front view and light indication. Front view of receiver RM14 Light indication Indicator Description Power Blue light when power supply is on. Green light when receiver is operating without problems. Red light when receiver is System experiencing problems. -
Page 7: Rear View And Rear Panel Elements
2. Insert an already registered regular size SMS card of the chosen network provider into receiver‘s SMS card slot in order to receive SMS messages from Trikdis message transmission modules. 3. Position the receiver on a solid clean horizontal surface and remove side and top covers. Insert the SIM card into a SMS receiver‘s SIM card slot. - Page 8 9. Install software IPcomControl v4 (see Configuring the receiver) on the computer that will be used to configure receiver RM14. 10. Change the IP address of the computer that will be used to configure receiver RM14 to that required by the receiver manufacturer (see Configuring the receiver).
-
Page 9: Configuring The Receiver
VIII. Configuring the receiver Operation parameters of receiver RM14 are set and edited using software IPcomControl v4 on a computer with OS MS Windows operating in the same LAN. Software may be found in the supplied CD or on www.trikdis.lt. Install software IPcomControl v4 on the computer. -
Page 10: Connecting To A Receiver Operating In Lan
User Manual v151003 Multichannel receiver RM14 5. Enter the User name (administrator) and password (admin) when prompted. Click Login. 6. Select IPcomControl v4 tab Configure. Click Get. Enter LAN values into boxes Primary IP, Subnet and Gateway in order to connect the receiver to the network. Click Set. -
Page 11: Configuring Remote Server Ip Address For Communication Channel Testing, Receiver Sound Signals And Clock (Tab Configure)
User Manual v151003 Multichannel receiver RM14 2. Enter the User name (administrator) and password (admin) when prompted. Click Login. 3. Click Read in an open window of software IPcomControl v4. Modem – status (offline/online) of the Number of GPRS objects. -
Page 12: List Of Receiver Events. Disabling Generation Of Event Messages (Tab Events)
User Manual v151003 Multichannel receiver RM14 List of receiver events. Disabling generation of event messages (tab Events). Enable/disable generation Event name Event code of an event message Upon occurance of an event listed in the window above, a message will be formed and sent to the monitoring software. -
Page 13: Setting Operation Mode Of Com Ports (Tab Com Settings)
SMPP – protocol for SMS message transmission using TCP/IP communication, i.e. it allows receiving SMS messages sent by Trikdis message transmission modules via LAN instead of integrated SMS modem. Number of receivers that may be added by double-clicking on cell Click to add new SMPP receiver is limited by license. -
Page 14: Adding Receivers And Setting Their Parameters (Tab Receivers)
User Manual v151003 Multichannel receiver RM14 Adding receivers and setting their parameters (tab Receivers). Double-click on cell Click to add new line to describe message traffic Double-click on cell Click to add new receiver to assign a name and number to a newly added received by an added receiver: assign a port (Port or COM input), line receiver. -
Page 15: Message Filtering (Tab Filter)
User Manual v151003 Multichannel receiver RM14 Output parameters for sending messages to the monitoring software: Name – specify port name Output type – specify connection type with the monitoring software: TCP or COM IP – specify monitoring stations IP address ... -
Page 16: User Permissions (Tab Users)
View events and objects – specify permission to open software IPcomControl v4 tabs Data and Objects. Set zone bypass – specify permission to send control commands to Trikdis control panel installed in a secured object in order to activate or deactivate Zone bypass mode in a specific zone. -
Page 17: Resetting Default Receiver Operation Parameters
Messages are sent with set receiver, line numbers and object identification numbers: 1) Received from the device from object, if event is connected with the object. 2) 0000, if event is connected with general function events. List of receiver RM14 event codes Event Event name... - Page 18 User Manual v151003 Multichannel receiver RM14 E704 Massive 0000 Receiver ID There was a set number of connection losses with GPRS connection lost or GSM transmission modules. Zone number indicates port ID. E712 Receiver i/o error 0000 Receiver ID An error occurred while reading data from the port.
-
Page 19: Warranty
User Manual v151003 Multichannel receiver RM14 R762 Restored GPRS Transmission Transmission module is working in GPRS mode and a set connection module ID number of messages were received, stating that connection is restored. Zone number indicates port ID. R764...
