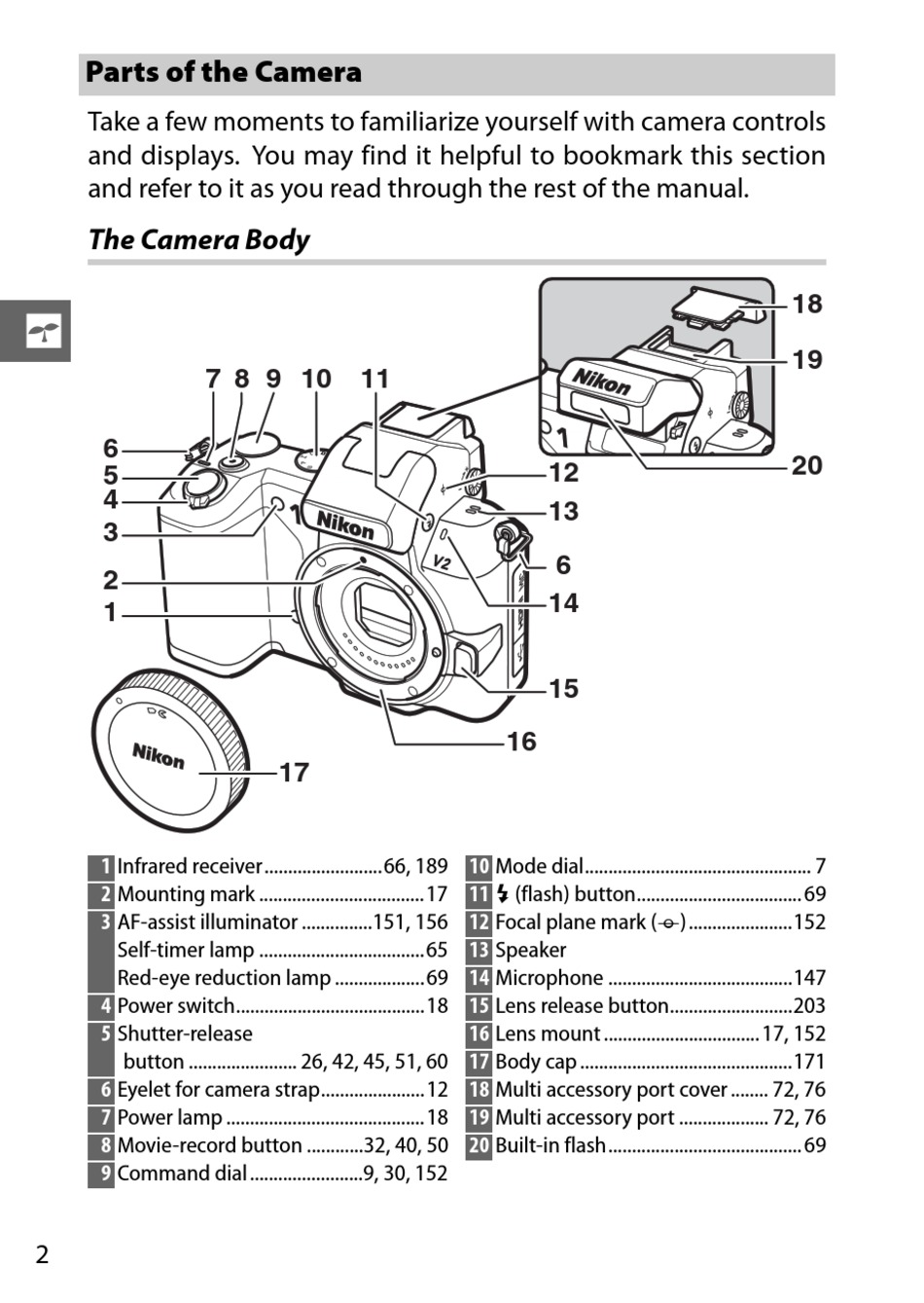

Parts of the Camera

Take a few moments to familiarize yourself with camera controls
and displays. You may find it helpful to bookmark this section
and refer to it as you read through the rest of the manual.

The Camera Body

s
6
5
4
3
2
1
1 Infrared receiver.........................66, 189
2 Mounting mark ...................................17
3 AF-assist illuminator ...............151, 156
Self-timer lamp ...................................65
Red-eye reduction lamp ...................69
4 Power switch........................................18
Shutter-release
5
button ....................... 26, 42, 45, 51, 60
6 Eyelet for camera strap......................12
Power lamp ..........................................18
7
8 Movie-record button ............32, 40, 50
9 Command dial........................9, 30, 152
2
7 8 9 10 11
17
12
13
6
14
15
16
10 Mode dial................................................ 7
M (flash) button................................... 69
11
12 Focal plane mark (E)......................152
Speaker
13
14 Microphone .......................................147
15 Lens release button..........................203
Lens mount ................................. 17, 152
16
17 Body cap .............................................171
18 Multi accessory port cover ........ 72, 76
Multi accessory port ................... 72, 76
19
20 Built-in flash......................................... 69
18
19
20
