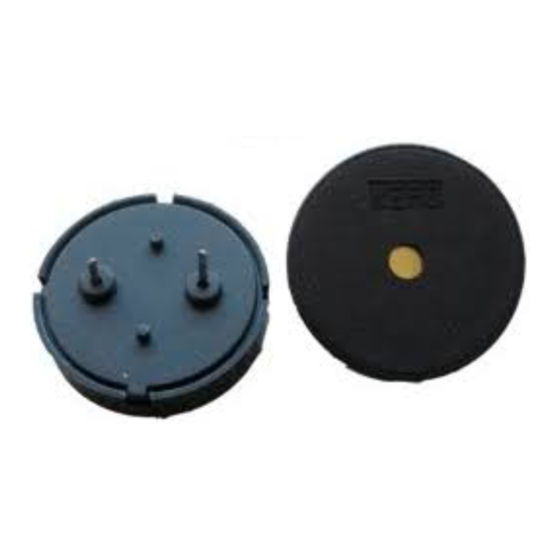

- Page 1 SPECIFICATION Customer : Applied To : Product Name : Piezo Buzzer Model Name : KPT-G2212 Drawing No. : KP3.842.240 Compliance with ROHS( 本品符合 ROHS 指令 ) Signature of Approval Signature of KEPO Approved by Checked by Issued by Date 宁波凯普电子有限公司...
-
Page 2: Table Of Contents
额定极限条件 4. Electrical Characteristics 电性能 5. Measuring Method 测试方法 6. Physical Characteristics 机械性能 7. Environmental Characteristics 环境性能 8. Dimensions 尺寸 9. Packaging Standard 包装标准 10. Cautions 警告 11. Cautions for Use 注意事项 12. Revision 履历表 Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 3: Maximum Rating
PBT +20%玻纤 / 黑 3. 额定极限条件 Maximum Rating 项目 规 格 Item Specification 最高输入电压 30Vp-p Square Wave /max. Maximum input Voltage 工作温度范围 -30 ～ +85 ℃ Operating Temperature Range 储存温度范围 -40 ～ +95 ℃ Storage Temperature Range Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 4: Electrical Characteristics
温度+25±3℃，湿度60±10%R.H.标准测试状态,在没有疑问的场合,可以在温度+5 ～+35℃,湿度45～85 %R.H.的范围内测试. Part shall be measured under a condition (Temperature :+5 to +35 ℃ ,Humidity :45 to 85%R.H.)unless the standard condition (Temperature :+25 ± 3 ℃ ,Humidity :60 ± 10 %R.H.) is regulated measure. Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 5: Physical Characteristics
+230 ± 5 ℃ for 3 ± 0.5 seconds. 分别在每个插针的轴向施加9.8牛顿的静荷 插针没有断开和 重10秒. 插针强度 可见的损伤 No visible Terminal The force 10 seconds of 9.8N is applied to damage and Strength Pulling each terminal in axial direction. cutting off Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 6: Environmental Characteristics
After 5 above cycles, sounder shall be measured after being placed in natural condition for 4 hours. 表 1 Table 1 项 目 试验后变化量 Specification after test Item 声压级 初始值±10dB Sound Pressure Level Initial Value ± 10dB Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 7: Dimensions
Page Specification for Buzzer Revision No. Model No. : KPT-G2212 Drawing No. KP3.842.240 8. Dimensions Ø22 KPT-G2212 2-0.8± 0.2 10± 0.5 FIRST ANGLE PROJECTION UNIT ± 0.5 Tolerance : Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... -
Page 8: Packaging Standard
11.5 在使用烙铁的情况下,应注意烙铁头的温度应该保持在+350℃以下,并且焊接时间 控制在3秒内. In case of using solder iron for soldering, the top of soldering iron's temperature should be kept less than +350 ℃ .Moreover the soldering time should be also kept with in 3seconds. Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com... - Page 9 Page Specification for Buzzer Revision No. Model No. : KPT-G2212 Drawing No. KP3.842.240 12. Revision Rev. DATE PAGE DESCRIPTION SIGN primary 2008.11.14 Ningbo Kepo Electronics Co.,Ltd. http://www.chinaacoustic.com...
