Drawing No.OEM1824SPC
Specification for Piezoelectric
Date
1 . 范 围 Scope
本规格书适用于压电式声响器 通常它用在系统中做报警或提示的声响器用。如果将该产
品用于其它领域，请与我们取得联系。
This product specification is applied to the piezoelectric sounder used for sounder in alarm
systems. Please contact us when using this product for any other applications than
described in the above.
2. 品名 及 相关事项
2.1 凯普型号
2.2 客户名称
2.3 客户型号
2.4 客户编号
2.5 符合 ROHS 标准 Compliance with RoHS
3. 额定极限条件
最高输入电压
3.1
Maximum input Voltage
工作温度范围
3.2
Operating Temperature Range
储存温度范围
3.3
Storage Temperature Range
回流焊条件
3.4
Reflow condition
宁波凯普电子有限公司
No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121)
E-Mail: sales@chinaacoustic.com
规 格 书
Sounder

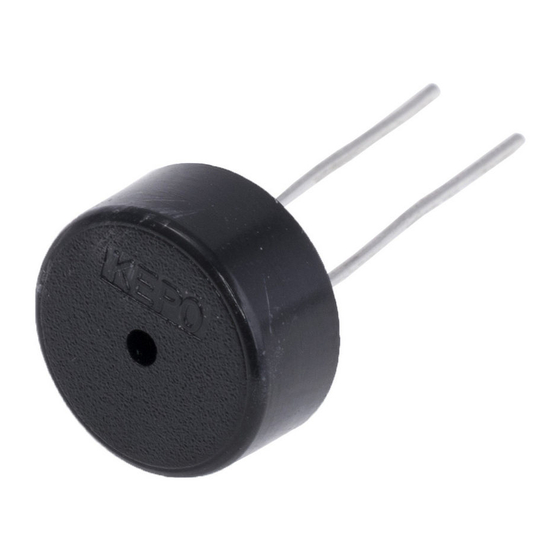

KPT-1340P22
Part Number
Kepo Part Number
Customer's Name
Customer's Part Number
Customer's Drawing Number
Maximum Rating
项目
Item
Approved by
Checked by
: KPT-1340P22
:
fujitsu general
:
:
9900387013
规 格
Specification
30 Vp-p 以下 /max.
-20 ～ +70 ℃
-30 ～ +85 ℃
Max Temperture 160 ° C
Max 260sec
Ningbo Kepo Electronics Co.,Ltd.
http://www.chinaacoustic.com
P. 1/10
Issued by
Advertisement
Related Manuals for KEPO KPT-1340P22
Summary of Contents for KEPO KPT-1340P22
- Page 1 Operating Temperature Range 储存温度范围 -30 ～ +85 ℃ Storage Temperature Range Max Temperture 160 ° C 回流焊条件 Max 260sec Reflow condition 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 2 Part shall be measured under a condition (Temperature :+5 to +35 ℃ ,Humidity :45 to 85%R.H.)unless the standard condition (Temperature :+25 ± 3 ℃ ,Humidity :60 ± 10 %R.H.) is regulated measure. 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 3 No visible The force 10 seconds of 9.8N is applied to damage and Strength Pulling each terminal in axial direction. cutting off 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 4 表 1 Table 1 项 目 试验后变化量 Specification after test Item 声压级 初始值 ± 10dB Sound Pressure Level Initial Value ± 10dB 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 5 TOLERANCE : ± 0.5 Piezp-Element 蜂鸣片 Piezo Ceramic Case PBT(G20) 壳体 插针 FR-4 印制板 Remarks Part Name Q'TY Material 备注 型号 数量 材质 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 6 Orientation Distance 产品上限位置 26.0 max. Upper Limit Place 孔直径 Ø4.0 ± 0.2 Hole Diameter 纸带厚度 ± 0.2 Paper Tape Thickness 单位：mm(参考值) △h 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 7 P. 7/10 Drawing No.OEM1824SPC Picture 2 500PCS Picture 1 500PCS Picture 4 5000PCS Picture 3 5000PCS Eligibility Certificate Company Name ： NingBo KEPO Electronics co.,LTD P/N ： QTY ： Production Date ： Inspector ： Shipment Date ： Lot Number ：...
- Page 8 In case of using solder iron for soldering, the top of soldering iron's temperature should be kept less than +350 ℃ .Moreover the soldering time should be also kept with in 3seconds. 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 9 Change case high to short 2006.05.26 Change pin rigidity to soft 2006.05.26 Change Material 2008.02.21 Change Packing Size 2008.07.03 2008.07.03 Add Reflow condition 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
- Page 10 The products must be measured up to Rank A of Fujitsu General Group on the restriction of the use of certain hazardous substance. The Data of Rank A please refer to accessory. 宁波凯普电子有限公司 Ningbo Kepo Electronics Co.,Ltd. No.25 Baoyuan road Dongqian Lake, Industry Area, Dongqian town,Ningbo City,China(Post Code:315121) E-Mail: sales@chinaacoustic.com http://www.chinaacoustic.com...
