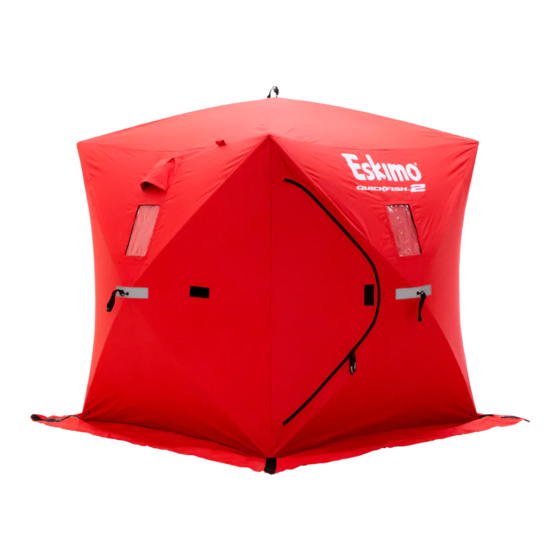

Eskimo QUICKFISH Series Assembly And Use Instructions

QUICKFISH SERIES
™
ASSEMBLY AND USE INSTRUCTIONS
SET-UP INSTRUCTIONS:
1. Remove ice shelter from backpack carrying bag. Remove the tie
strap from around the shelter.

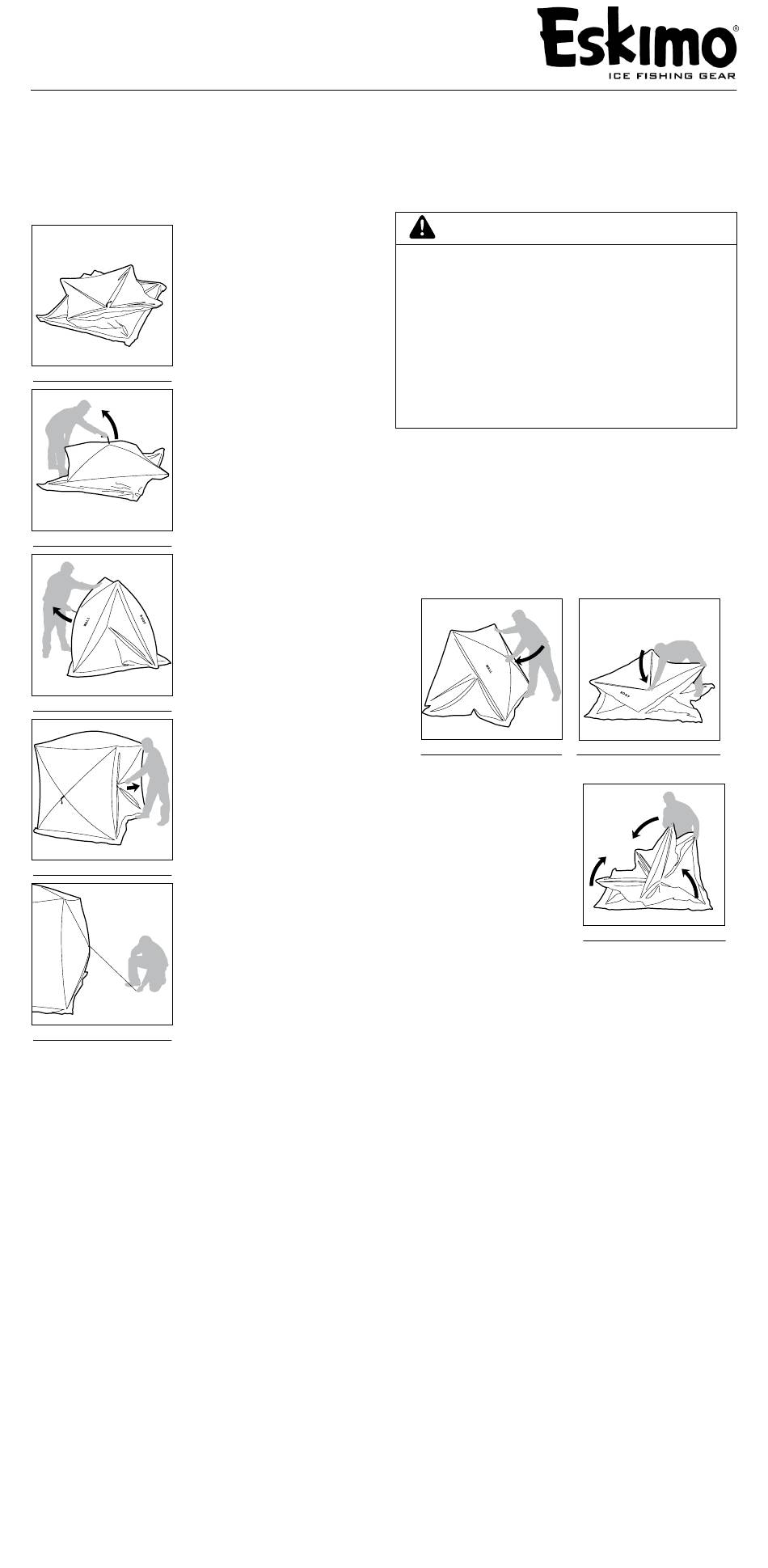

2. Lay the ice shelter flat on the ground and check that there is
no material twisted or overlapping the ends of any poles. SEE
FIgURE 1. DO NOT force shelter when folding or unfolding.
Watch for entanglement of poles.
ROOF
FIgURE 1
ROOF
FIgURE 2
FIgURE 3
FIgURE 4
FIgURE 5
™
QUICKFISH 6 - Screw six (6) anchors through the grommets lo-
cated in each corner and on the long sides of the shelter completely.
On the windiest side of the shelter, screw in the remaining anchors
several feet away from the hubs. Use the provided ropes and tie
one end to the hub eyelet on each wall, and the other end to one
of the anchors previously screwed in. Use adjustment slides on rope
to achieve proper tension.
ONE YEAR LIMITED WARRANTY
Ardisam, Inc., a manufacturing company, warrants this Eskimo Ice Shelter
to be free from defects in the material or workmanship for a period of
one year from the date of purchase. During the one-year warranty of
this product, Ardisam will, at their discretion, furnish parts and/or labor to
correct any defect caused by faulty material or workmanship. The warranty
does not cover cracked windows, tent tears, or bent poles due to high
wind conditions or unattended use. Warranty work must be sent directly
to Ardisam, Inc. or to an authorized service center. To obtain warranty
service you must have prior approval by calling our customer service
department at 1-800-345-6007. Ardisam, Inc. will at no charge, repair
or replace, at their discretion, any defective part which falls under the
conditions stated above. Ardisam retains the right to change models,
specifications and price without notice. This product if used as intended,
will give you years of trouble free service. We hope you will enjoy the
quality of our products for years to come. For replacement parts, phone
1-800-345-6007 or go online to getEskimo.com.
This warranty applies to the original owner with a proof of purchase and
is not transferable. It supersedes all other warranties either expressed or
implied and all other obligations to liabilities on our part. Ardisam, Inc. does
not assume, and does not authorize any other person to assume for us, any
liability in connection with the sale of our products. The warranty applies
only to products which have not been subjected to negligent use, misuse,
alteration, accident or repairs made by anyone not certified by Ardisam,
Inc. This guarantee is void unless the warranty card is properly filled out
and received by Ardisam, Inc., within 30 days of purchase.
NOTE: In windy conditions and be-
fore pulling outward on the roof
or walls to pop open the shelter,
securely anchor at all corners
with provided ice anchors. This
will prevent shelter from blowing
away when setting up in windy
conditions.
3. Grasp the webbing loop sewn onto
the eyelet located in the center of
the roof and pull outward until the
roof section pops open. For the
™
QUICKFISH 6 , do the same for
the other roof section. Both roof
sections should now be popped
open. SEE FIgURE 2.
4. Grasp the webbing loop sewn onto
the eyelet located in the center of
one of the walls and pull outward
so that the wall pops open. SEE
FIgURE 3.
NOTE: Place your foot on the
ground skirt to help hold the shel-
ter in place when popping open
the walls.
5. Proceed by walking around entire
shelter and pulling on each wall
webbing loop to pop out each wall
until all sides are popped out. SEE
FIgURE 4.
NOTE: There are four (4) wall
sections on the QUICKFISH
3 and six (6) wall sections on the
™
QUICKFISH 6.
6. Your shelter should be standing up
completely. You may now proceed
by anchoring the shelter to the ice
using the provided ice anchors and
rope. SEE FIgURE 5.
™
QUICKFISH 2 & 3 - Screw four
(4) anchors through the grommets
located in each corner completely.
On the windiest side of the shelter,
screw in the remaining anchors
several feet away from the hubs.
Use the provided ropes and tie
one end to the hub eyelet on each
wall, and the other end to one of
the anchors previously screwed in.
Use adjustment slides on rope to
achieve proper tension.
WARNINg
READ AND UNDERSTAND ALL ASSEMBLY, INSPECTION, & USE
INSTRUCTIONS PROVIDED BEFORE EACH USE. FAILURE TO
FOLLOW INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
OR DEATH.
DO NOT USE OPEN FLAME HEATERS IN YOUR ICE SHELTER.
WARNINg: KEEP ALL FLAME AND HEAT SOURCES AWAY
FROM THIS TENT FABRIC. THIS TENT IS MADE WITH FABRIC
THAT MEETS CPAI-84 SPECIFICATIONS FOR FLAME RESIS-
TANCE. IT IS NOT FIRE PROOF. THE FABRIC WILL BURN IF
LEFT IN CONTINUOUS CONTACT WITH ANY FLAME SOURCE.
TAKE-DOWN INSTRUCTIONS:
1. Remove all ropes and ice anchors and store them in the provided
pouch.
NOTE: Zip all doors shut. Do not leave them open. Close all
windows and vents. In windy conditions, remove ice anchors
after collapsing the roof and walls inward.
2. Using your hand, push the center hub in on roof and walls until
they collapse inward. Shelter will fall to the ice on its own.
™
2 &
FIgURE 6
3. The shelter will be back in its flat
stage just as it was when it was
unfolded out of the backpack
bag. Gather all corners of the
shelter and fold together. SEE
FIgURE 8. Do not force the
shelter when folding. Watch for
entanglement of poles.
4. Take provided tie strap and wrap
around folded shelter to allow
for easier insertion into back-
pack. Place folded shelter back
into the backpack carrying case with the hubs always towards
the bottom end of bags. Place the pouch with the ice anchors
and rope into backpack as well.
SAFETY AND MAINTENANCE INSTRUCTIONS:
Due to traffic on lakes, ice fishing can be hazardous at night. If you choose to
fish at night or in conditions with poor visibility, be sure to take precautions.
Never leave the ice shelter unattended.
Take down shelter when not in use to avoid unnecessary damage.
Use extra tie-downs during excessive winds.
LONg TERM STORAgE:
Make sure your Eskimo ice shelter is completely dry before storing for long
periods of time. Store shelter in a cool, dry place away from rodents.
SHELTER COMPONENTS:
™
QUICKFISH 2
(2) tie down ropes (48723)
(6) ice anchors (69141)
(4) 8 in. x 12 in. windows (69531)
™
QUICKFISH 6
(3) tie down ropes (48723)
(9) ice anchors (69141)
(6) 13.5 in. x 13.5 in. windows (69534)
Eskimo, A Division of Ardisam, Inc.
800-345-6007 · Fax (715) 822-4180
INCLUDES THE FOLLOWING MODELS:
COMPREND LES MODÈLES SUIVANTS:
QUICKFISH ™ 2 (69151)
QUICKFISH ™ 3 (69143)
QUICKFISH ™ 6 (69149)
SEE FIgURES 6 & 7.
FIgURE 7
™
QUICKFISH 3
(2) tie down ropes (48723)
(6) ice anchors (69141)
(4) 13.5 in. x 13.5 in. windows (69534)
Get parts online at
www.GetEskimo.com
1160 Eighth Avenue; P.O. Box 666
Cumberland, Wisconsin 54829
E-mail: info@ardisam.com
FIgURE 8
OMQUICKFISH
Rev. 06/08/11
© 2011 Ardisam, Inc.
All Rights Reserved
Tous Droits Réservés
