Trivum RA410v2 Quick Installation Manual

Connections and Control
Power 24V / 4A
Balance L/R
Control (Trigger)
Max. Volume
Connection example:
SC311m
A.NR: 201016
Line out
WLAN/BT
Ethernet USB
FM/DAB+ Trigger
Dig-In
in/out
Input Output
Line in
SDAT/MDAT MDAT G 1
We reserve the right to make misprints, mistakes and changes in the case of product progress, even without prior
notice. 04/2022
Speakers
Left Right
Power

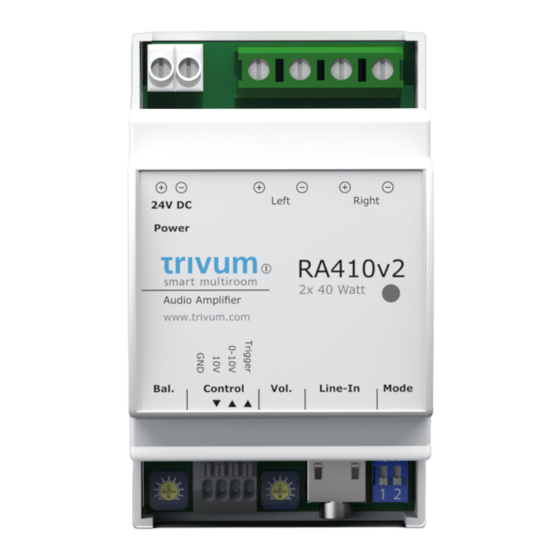

RA410v2
2x 40 Watt
Audio Amplifi er
www.trivum.com
Bal. Control Vol. Line-In Mode
Device Mode
Line In
Streamer, Bluetooth receiver,
SoundSystem etc.
Speakers
Power 24V / 4A
Left
Power
RA410v2
2x 40 Watt
Audio Amplifi er
www.trivum.com
2 R L
Mains 100-240V AC Bal. Control Vol. Line-In
Trigger
Line-In
Quick Installation Guide
Required components for installation:
• 24 V DC power supply, at least 4A
• Switch wire
• Audio cable
• Speakers with 4 or 8 Ohms impedance
Technical Data
Connections
Amplifier
Power Supply
Casing
Weight
Right
Mode
RA410v2
A.NR: 500056
RA410v2
AN: 500056
(e.g. PS24/100 4.2A by trivum AN: 500023)
1x 0-10V input
1x Speaker Stereo (4-Pin connector)
1x Analog Line Input 3.5mm stereo jack
1x Power (2-pin connector)
1x Trigger input (5-24V)
Class D, 2x 40W @ 8 Ohm
24V, 4A (80 W) 2-pin connector
REG 3 units (54 mm)
0,085 kg
