Trivum RP311v2 Quick Installation Manual

Connection example:
LAN
Browser or App
Power 24V / 4A
wireless
trivum TouchPad
Power
(optional)
DHCP 1-Zone SoundSystem
NAS
(optional)
DHCP
Connection example with trivum Audio Extenders:
Bluetooth receiver
Analog Out
CAT 5/6/7
RCA
��
All trivum products are available in our online shop www.trivum.com
Article Numbers:
1. RP311v2: 301022
2. XT:LINE: 500041
3. XR:LINE:
500042
We reserve the right to make misprints, mistakes and changes in the case of product progress, even without prior
notice. 01/2022
Line In
TV, CD Player, etc
Speakers
Output

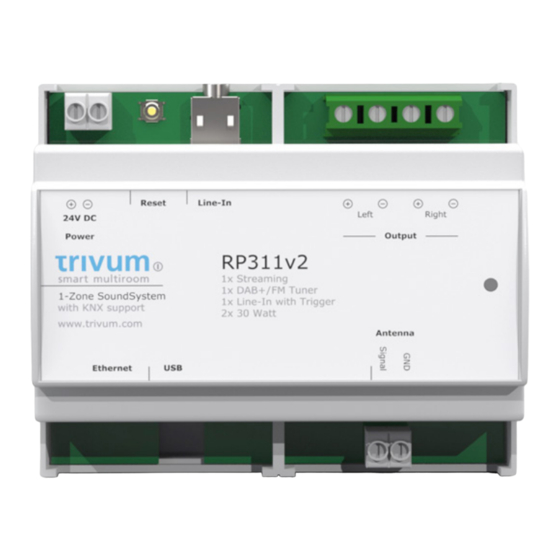

RP311v2
1x Streaming
1x DAB+ / FM Tuner
1x Line-In with Trigger
2x 30 Watt
Antenna
Network DAB+/FM
Radio
Analog Line In
Power
RP311v2
1x Streaming
1x DAB+ / FM Tuner
1-Zone SoundSystem
1x Line-In with Trigger
2x 30 Watt
Power 15V
4. REG PS 24/100 (4.2A):
5. Audio Extender PvS 15V:
6. TouchPad 7":
Quick Installation Guide
Required components for installation:
• 24 V DC power supply, at least 4A
• ethernet cable
• network with DHCP capable router
• Browser (PC / Mac) or trivum App
• speakers with 4 or 8 Ohms impedance
Technical Data
Zones
Output
Source
Antenna
Streaming
Radio
External Sources
Music Formats
Connections
500023
500049
600013
Amplifier
Power Supply
Casing
Weight
RP311v2
AN: 301022
(e.g. PS24/100 4.2A by trivum AN: 500023)
1 Zone
Expandable to up to 64 zones
1x Streaming
1x DAB+/FM Tuner
1x analog Line Input
1x up to 192kHz 24Bit
DAB+/FM
1x Line In analog via 3.5 Jack
MP3, AAC, FLAC, M4A, WMA, ALAC
1x Network (RJ45 Socket)
1x Speaker Stereo (4-Pin connector)
1x Analog Line Input
1x Antenna (2-pin connector)
1x Power (2-pin connector)
Class D, 4x 30W @ 4 Ohm
24V, 4A (192 W) 2-pin connector
REG 6 units (142mm)
0,166 kg
