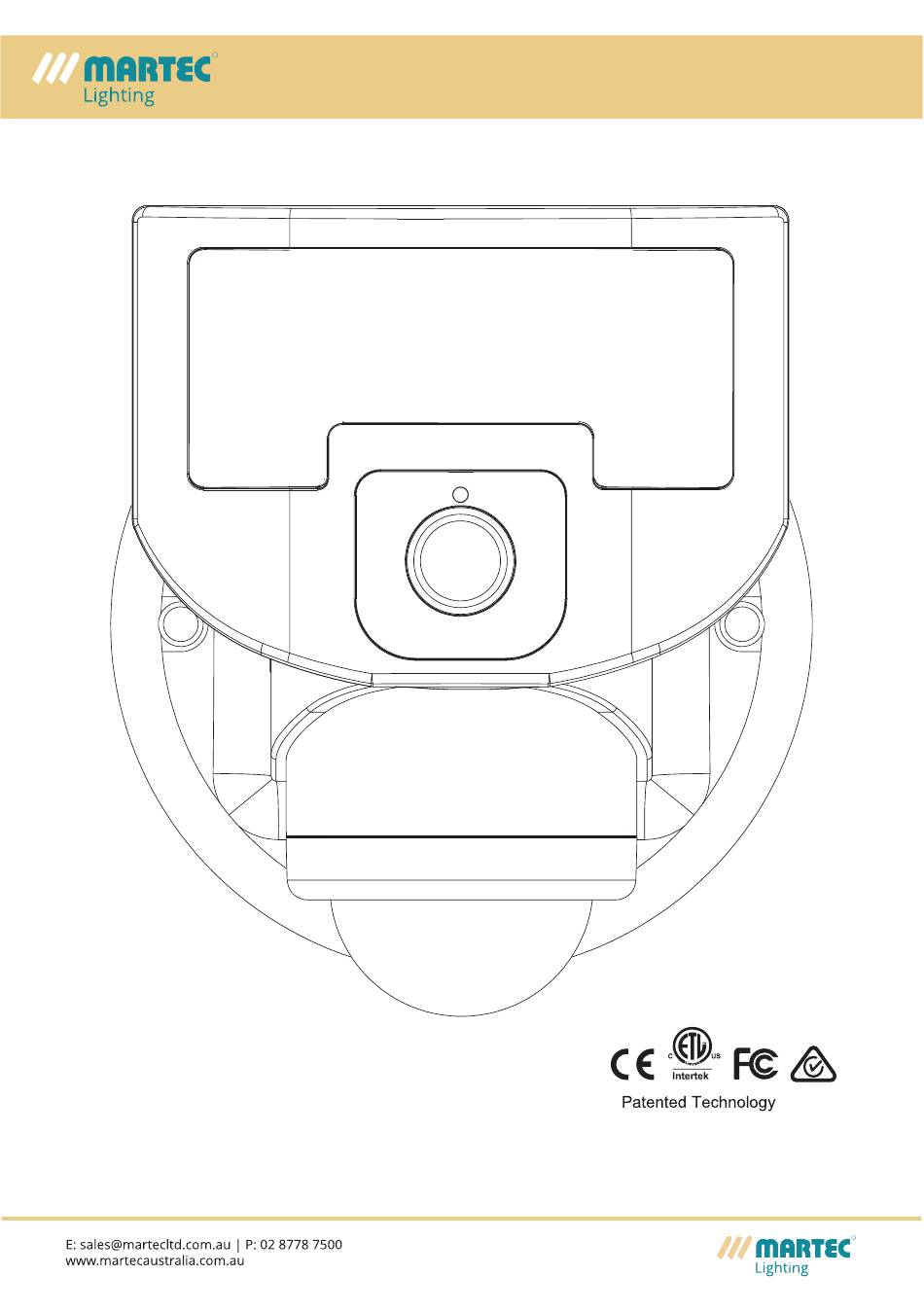

- Page 1 Sentinel InstaIIation Guide Sentinel InstaIIation Guide MLXSP524WS/ MLXSP524MS Protect yourself. Please read these instructions carefully prior to installstion and retain them for future reference. Failure to follow any of these instructions could void product warranties.
-
Page 2: Important Safety Instructions
Near the outlet of a central heating unit or near an air conditioning unit Where other lights could shine on the sensor you may contact Martec customer service. Turn of f electrical power at fuse or circuit breaker box before wiring the Sentinel WIFI Security Light f ixture to the power supply. - Page 3 Note: The Sentinel WIFI Security Light should be in stalled by a person with experience in household wiring or by a qualif ied electrician. The electrical system and the method of connecting this Install the f ixture on a height between f ixture must be in accordance with the National Electrical or local building regulations.
- Page 4 The Sentinel WIFI Security Light 8gb memory card included and inserted into the f ixture card slot...
-
Page 5: Installation Steps
INSTALLATION STEPS Loosen the Sentinel WIFI Security Light mounting screws to remove the base cover bracket and seal. Feed the wall power cable through the back base cover bracket and through the Fixture Backplate Seal (C) before securely f ixing the wall plate and connecting the wires to the terminal block. Step 2. - Page 6 INSTALLATION CONTINUED CONNECTING THE SENTINEL WIFI SECURITY LIGHT TO THE WI-FI NETWORK The Sentinel WIFI Security Light has a built-in Wi-Fi module which can be connected to the local Wi-Fi network, enabling the broadcast of live video and message alerts to a dedicated app, running on an iOS or Android smartphone.
- Page 7 CONNECTING THE SENTINEL WIFI SECURITY LIGHT TO YOUR PHONE OR TABLET Firstly ensure your phone or tablet is connected to the Wi-Fi network you intend to use for the Sentinel WIFI Security Light 1 .Open the Tuya Smart App and follow the steps on your smartphone 2.First time in, select “Sign Up “...
- Page 8 4.Add and connect your the Sentinel WIFI Security Light to the Wi-Fi network following these easy 5 screenshots steps below: 1) Click on Add Device explained here below( only to add to existing devices click top right 2) Click on Security & Video Surveillanee 3) Click on Smart Camera(Wi - Fi) 4) After step 3 click next by following the APP screenshot guideline here below 5) Ensure to select 2.4 GHz and enter your Wi-Fi details and password and click next...
- Page 9 PAIR AND CONNECT THE SENTINEL WIFI SECURITY LIGHT FIXTURE TO YOUR ROUTER AND NETWORK 5.There will be 2 (two) consecutive electronic beep sounds as indication that you can pair and connect the Sentinel WIFI Security Light to your router and network - Your phone will generate a QR code which is pointed at the Sentinel WIFI Security Light camera lens at a distance between 15 to 20cm apart to connect to the Wi-Fi network.
- Page 10 PAIR AND CONNECT THE SENTINEL WIFI SECURITY LIGHT FIXTURE TO YOUR ROUTER AND NETWORK 6. When the Sentinel WIFI Security Light, f ixture is successfully connected to the Wi-Fi network, the camera images from the installed Sentinel WIFI Security Light, f ixture can be viewed. Push to record a Click for horizontai view...
- Page 11 THE SENTINEL WIFI SECURITY LIGHT CAMERA MEMORY CARD STORAGE FEATURE There is a 8gb memory card included and inserted into the Sentinel WIFI Security Light,. The Sentinel WIFI Security Light, memory card loading options for onboard storage is from 8GB until 128GB. When the memory card reaches its maximum capacity, the newest video overwrites the oldest video ensuring that your device will continuously record.
- Page 12 FOR USING AMAZON ECHO OR GOOGLE HOME For using Amazon Echo or Google Home click on “Me”shown here below on the App screenshots with options .
-
Page 13: Specifications
APP FUNCTIONS SUMMARY 1. App Control Sensitivity Adjustment: 12 meters High,9 meters Medium,6 meters Low 2. App Control IR's infrared illumination to enhance camera images 3. 2 way audio communication and record video to on-board SD card 4. App Control switching LED light on or of f 5. -
Page 14: General Information
GENERAL INFORMATION Each house or business building /premises has dif ferent structural layouts and uses dif ferent routers and all these factors have to be taken in account during the planning stage when installing and set-up the Sentinel WIFI Security Light f itxure to ensure enough interaction signal strength to the dedicated internal router. 1.Make sure the mobile device you are using is connected to the same Wi-Fi router the Sentinel WIFI Security Light is connected to and also try your 4G network.
