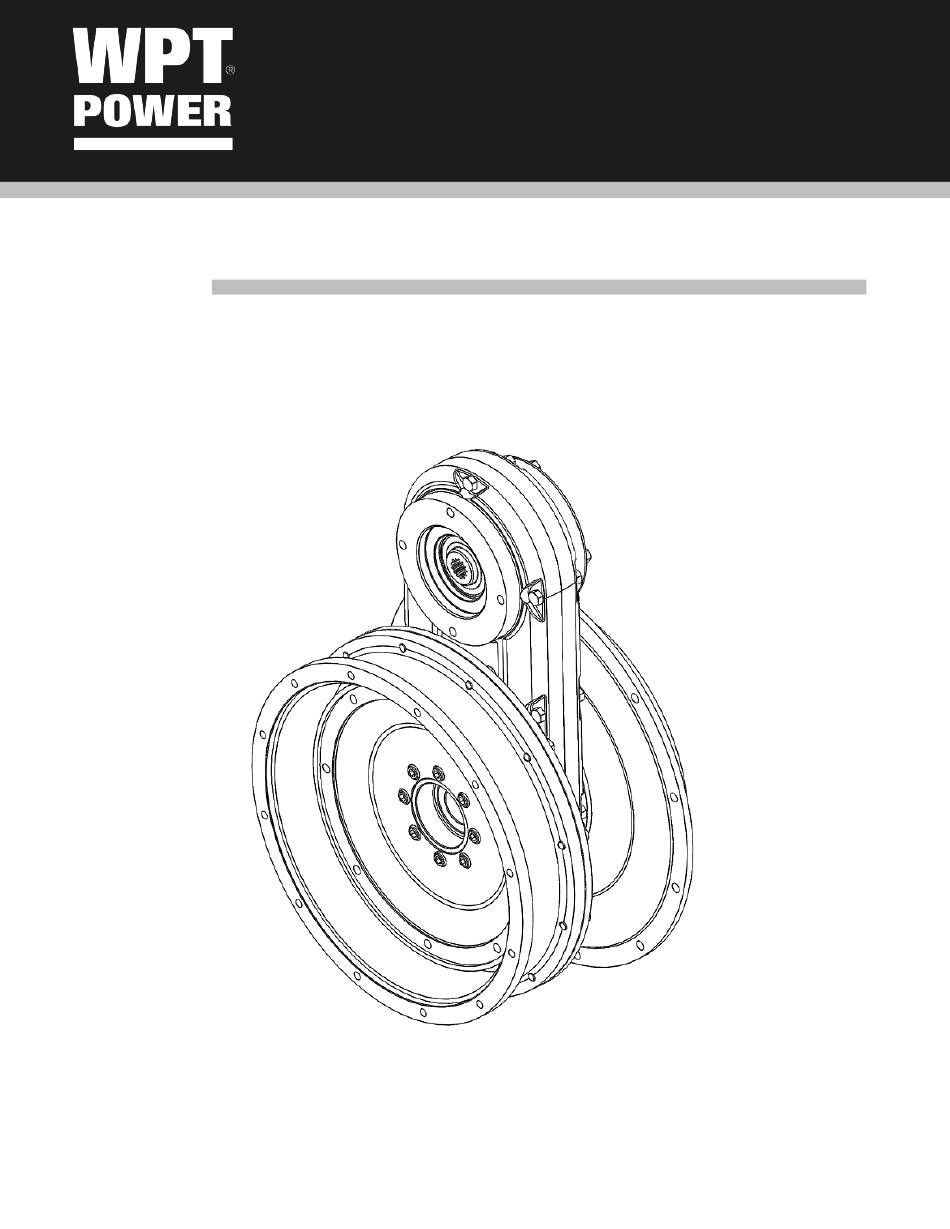

- Page 1 Power Pump Drive (PPD) Installation & Maintenance Manual Unit #’s WP1-03-000, WP1-03-001 & WP1-03-002 Page 1 of 10 WIM-PD-003 REV_D...
-
Page 2: Table Of Contents
Contents Introduction ____________________________________________________________ 3 General Warnings _______________________________________________________ 4 Installation _____________________________________________________________ 5 Maintenance ___________________________________________________________ 6 Belt Replacement _______________________________________________________ 6 Exploded View __________________________________________________________ 7 Page 2 of 10 WIM-PD-003 REV_D... -
Page 3: Introduction
Introduction The WPT Power Pump Drive model WPD-03 is an innovative modular pump drive designed to be mounted on industrial engines with SAE flywheels and housings. The input is a rugged Rubber Block Drive flywheel coupling. This elastic coupling absorbs radial and angular misalignments as well as dampens torsional vibrations. -
Page 4: General Warnings
General Warnings Before assembling and operating the product, carefully read all the safety and operating instructions in this manual. Always follow all the instructions and make sure that all operators standing by the machinery are wearing protective equipment necessary for the job type and application being performed. WARNING Do not use the machinery if you do not understand these instructions. -
Page 5: Installation
Installation CAUTION Before mounting the pump drive onto the engine, it is important to check that the flywheel is within SAE tolerances. Check that the flywheel is within SAE tolerances (see Figure 1). Mount aluminum drive ring of the elastic coupling to the flywheel. Figure 1: Checking that the flywheel runout is within SAE tolerances. -
Page 6: Maintenance
Maintenance There are no specific maintenance items for the WPT Power Pump model WPD-03. No lubrication is required for this unit. Belt Replacement To replace the belt, follow steps below. See exploded view in section 6. Remove pump drive from engine Remove rubber block coupling assembly by removing bolts (32) and install into (31), use them as jack bolts to separate from (25). -
Page 7: Exploded View
Exploded View Qty. DESCRIPTION Qty. DESCRIPTION SHAFT ELASTIC PIN BEARING TIMING BELT FLANGE KEY HEAD COIL BOLT SPACER PULLEY TEETH 48-D.50 BEARING RBD FLANGE ELASTIC WASHER HOUSING SOCKET HEAD BOLT SPECIAL BOLT RBD RUBBER BLOCK WASHER DRIVING RING WASHER QD-SDS HUB HEX HEAD BOLT SOCKET HEAD BOLT SCHNORR WASHER... - Page 8 Page 8 of 10 WIM-PD-003 REV_D...
- Page 9 Bolt Torque Specifications The following chart applies to ISO metric screws with coarse pitch grades 8.8, 10.9, and 12.9 with clean surfaces. Bolt Torque lbf-ft [Nm] Bolt Size Pitch [mm] [mm] 10.9 12.9 2 [3.1] 3 [4.3] 4 [5.2] 4 [6] 6 [8.5] 7 [10.1] 8 [10.4]...
- Page 10 WPT Power 1600 Fisher Road - Wichita Falls, TX 76305 P.O. Box 8148 - Wichita Falls, TX 76307 Ph. 940-761-1971 www.WPTpower.com Page 10 of 10 WIM-PD-003 REV_D...
