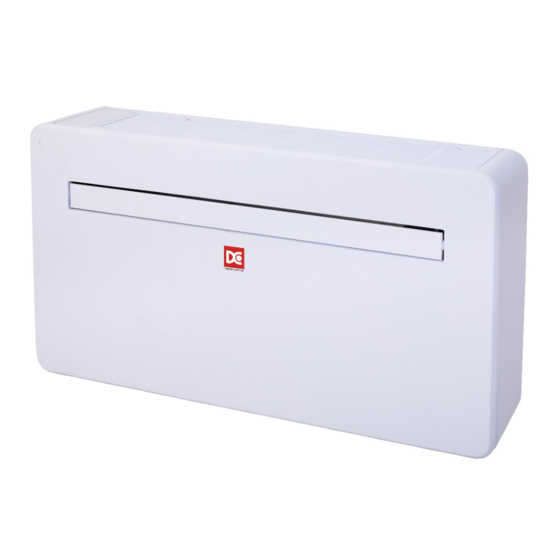

- Page 1 USER MANUAL TC12- Monobloc WALL MOUNTED AIR CONDITIONER WITH HEAT PUMP AND WIFI SMART APP...
- Page 3 SAFETY INSTRUCTIONS IMPORTANT! AIR CONDITIONERS MUST ALWAYS BE STORED AND TRANSPORTED UPRIGHT, OTHERWISE IRREPARABLE DAMAGE MAY BE CAUSED TO THE COMPRESSOR; IF IN DOUBT WE SUGGEST WAITING AT LEAST 24 HOURS FOLLOWING INSTALLTION BEFORE STARTING THE UNIT. ⚫ Carefully read the instructions before installing and/or operating the unit. ⚫...
- Page 4 ⚫ R290 has a low GWP (Global Warming Potential) of 3. ⚫ The air conditioner contains about 290g of R290 refrigerant gas. ⚫ Do not install or store in an unventilated space with an area smaller than 15 m per unit. The room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
-
Page 5: Product Overview
PRODUCT OVERVIEW PRODUCT DIAGRAM FRONT AIR INLET CONTROL PANEL LOUVR FRONT PANEL BACK WALL HANGING MOUNTS BACK PANEL AIR INLET AIR OUTLET DRAINAGE PIPE... -
Page 6: What's Included
FEATURES ◆ Simple operation. ◆ Self-evaporative function with energy saving technology. ◆ Sleek design that seamlessly fits into any style home. ◆ Bright LED screen-indicates temperature and current mode. ◆ On / off timer function-allows you to choose when the unit operates. ◆... -
Page 7: Installation
INSTALLATION TOOLS REQUIRED SPIRIT LEVEL DRILL 180mm CORE DRILL TAPE MEASURE SHARP KNIFE 8mm MASONRY DRILL PENCI 20mm MASONRY DRILL BIT BEFORE STARTING INSTALLATION, PLEASE ENSURE YOU HAVE ALL SUITABLE EQUIPMENT AVAILABLE AND UNDERSTAND THE STEPS INVOLVED IN INSTALLATION. IF IN ANY DOUBT, PROFESSIONAL ADVICE SHOULD BE SOUGHT. - Page 8 INSTALLATION This unit must be installed on an external wall, as it vents directly out of its rear.and ensure the wall is flat, solid and reliable. Leave at least 10 cm of space to the left, right and base of the machine. At least 20cm of space must be left above the unit to help air flow smoothly and stay away from curtains, plants, faucets, furniture and...
- Page 9 Roll the plastic vent sheets into a tube and feed them from the inside into the holes previously made. Ensure the tubes sit flush to the interior wall. Go outside and trim off the excess vent tube using a sharp knife, keeping the edge as neat as possible.
- Page 10 Once the chains are fitted and secure, any excess chain should be removed by cutting the chain. Lift the unit onto the wall, align the hanging holes with the hooks on the hanging rail and gently rest the unit into place. At the same time, slide the drain pipe through the drainage hole.
-
Page 11: Operation
OPERATION CONTROL PANEL Digital Display Air supply Cooling Speed Silent Heating Timer Increase/ Decrease Power Speed Mode REMOTE CONTROL The air conditioner can be controlled with the remote control. Two AAA-batteries are required. NOTE: Further details of the functions can be found on the following page. Press the POWER button to turn the machine on or POWER off. - Page 12 FUNCTIONS Press “POWER” to turn the unit On or Off. POWER Press to change between the 4 different modes. The display will show the symbol for the mode currently selected. The cooling function allows the air conditioner to cool the room and at the same time reduces air humidity.
-
Page 13: Connection Methods Available For Setup
There is a 3 minutes delay on power on. In order to protect the life of the compressor and COMPRESSOR electronic components please do not switch on the unit for at least 5 minutes after you turned PROTECTION the unit off. WIFI SETUP AND SMART FEATURES WIFI SETUP BEFORE YOU START... -
Page 14: Changing Between Connection Types
CHANGING BETWEEN CONNECTION TYPES To change the unit between the two wifi connection modes, hold the Speed button for 3 seconds. REGISTER THE APP Enter your email address or Press on the register button at Read the Privacy policy and phone number and press the bottom of the screen. - Page 15 SETTING UP YOUR HOME WITHIN THE APP SMART LIFE is designed so it can work with a large number of compatible smart devices within your home . It can also be set up to work with multiple devices within different houses As such during the setup process , the app requires that different areas are created and named to allow easy management of all your devices .
- Page 16 CONNECTING USING QUICK CONNECTION Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the wifi network. (We advise turning mobile data off during setup) Open app and press “+”...
-
Page 17: Connecting Using Ap Mode (Alternative Method)
CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the wifi light flashing once per second. If not follow the instructions for changing the wifi connection mode. Also ensure your phone is connected to the wifi network. (We advise turning mobile data off during setup) Open app and press “+”... -
Page 18: Device Screen
CONTROLLING YOUR DEVICE THROUGH THE APP THE HOME SCREEN Add Device: Add new device on the APP, and go through Change Home: You can the setup process change between them if you created more than one Room Management: home. Use to view the units set up within each room. - Page 19 DEVICE SCREEN The device screen is the main control screen for the air conditioner, providing access to the controls to amend the functions and settings. Edit Name: Use to change the name of Back: the air conditioner. Returns to the Home Screen Desired Room Temperature: Displays the desired room temperature.
- Page 20 SMART SCENES Smart Scenes is a powerful tool providing the option to customise the operation of the air conditioner based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two catagories Scene and Automation.
- Page 21 Once all the functions required have been added, press the Save button in the top right corner to finalise and save your new Scene. AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, indoor temperature, humidity of the room, weather conditions, and a range of other influences.
- Page 22 6. Chose the function, and then press the arrow button in the top left corner, to return to the previous screen. The profile tab gives you the option to edit both your detail, and use the added features of the unit. CHANGING THE NAME OF YOUR DEVICE When in any of the device screens further settings for the device can be accessed, by pressing on the three dots in the top right hand corner.
-
Page 23: Troubleshooting
INTEGRATION This allows the unit to be integrated with your favourite home automation hardware such as Google Home and the Amazon Echo. Select “More Services”, you could integrate with third-party voice services, pls refer to the left picture. TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. -
Page 24: Error Codes
Let the remote control get close to the air The remote control is not aligned with conditioner, and make sure that the the direction of the remote-control The remote control remote control directly faces to the receiver. does not work. direction of the remote-control receiver.
