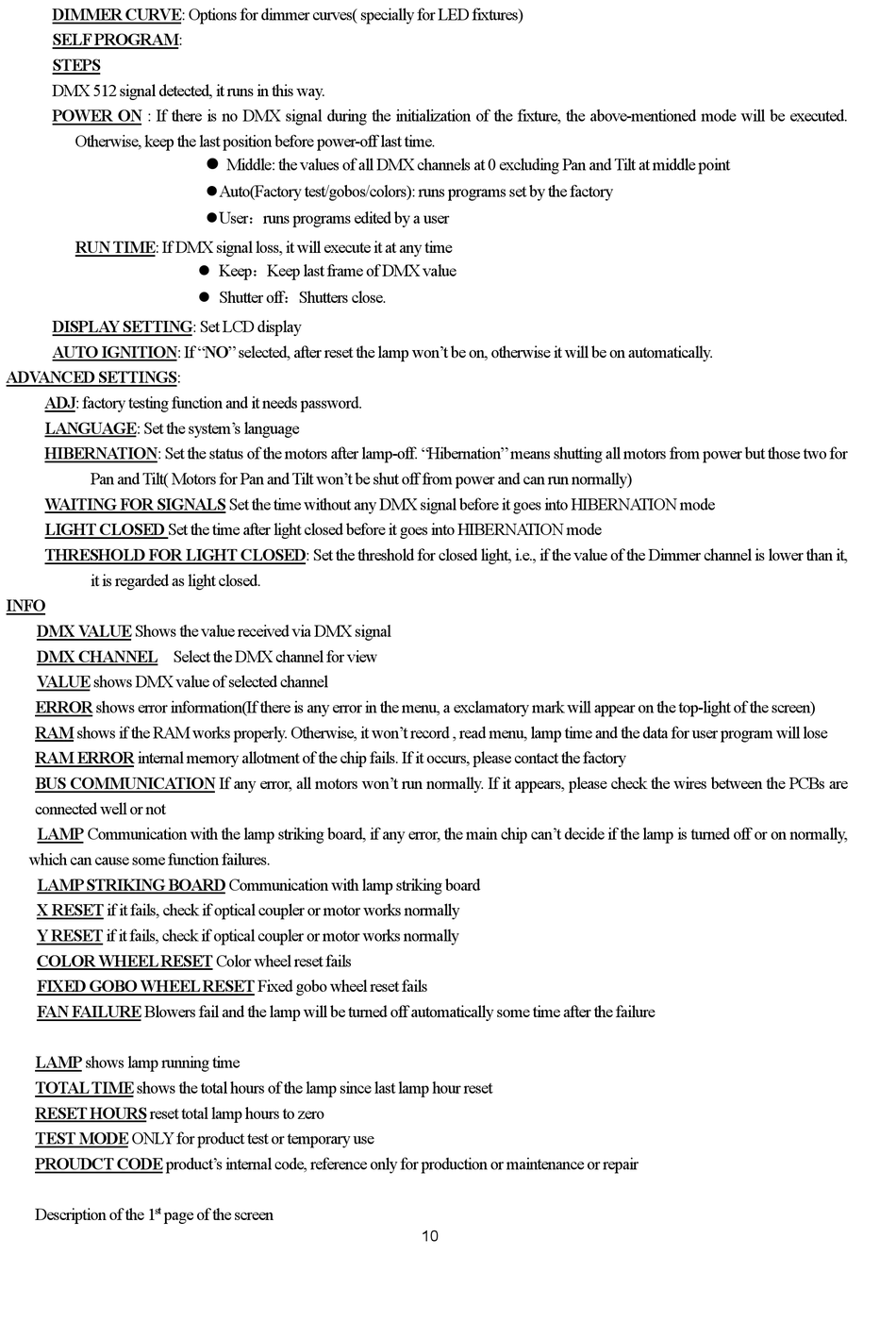

PR XR230 BEAM Manual page 10

DIMMER CURVE: Options for dimmer curves( specially for LED fixtures)
SELF PROGRAM:
STEPS
DMX 512 signal detected, it runs in this way.
POWER ON : If there is no DMX signal during the initialization of the fixture, the above-mentioned mode will be executed.
Otherwise, keep the last position before power-off last time.
RUN TIME: If DMX signal loss, it will execute it at any time
DISPLAY SETTING: Set LCD display
AUTO IGNITION: If "NO" selected, after reset the lamp won't be on, otherwise it will be on automatically.
ADVANCED SETTINGS:
ADJ: factory testing function and it needs password.
LANGUAGE: Set the system's language
HIBERNATION: Set the status of the motors after lamp-off. "Hibernation" means shutting all motors from power but those two for
Pan and Tilt( Motors for Pan and Tilt won't be shut off from power and can run normally)
WAITING FOR SIGNALS Set the time without any DMX signal before it goes into HIBERNATION mode
LIGHT CLOSED Set the time after light closed before it goes into HIBERNATION mode
THRESHOLD FOR LIGHT CLOSED: Set the threshold for closed light, i.e., if the value of the Dimmer channel is lower than it,
it is regarded as light closed.
INFO
DMX VALUE Shows the value received via DMX signal
DMX CHANNEL Select the DMX channel for view
VALUE shows DMX value of selected channel
ERROR shows error information(If there is any error in the menu, a exclamatory mark will appear on the top-light of the screen)
RAM shows if the RAM works properly. Otherwise, it won't record , read menu, lamp time and the data for user program will lose
RAM ERROR internal memory allotment of the chip fails. If it occurs, please contact the factory
BUS COMMUNICATION If any error, all motors won't run normally. If it appears, please check the wires between the PCBs are
connected well or not
LAMP Communication with the lamp striking board, if any error, the main chip can't decide if the lamp is turned off or on normally,
which can cause some function failures.
LAMP STRIKING BOARD Communication with lamp striking board
X RESET if it fails, check if optical coupler or motor works normally
Y RESET if it fails, check if optical coupler or motor works normally
COLOR WHEEL RESET Color wheel reset fails
FIXED GOBO WHEEL RESET Fixed gobo wheel reset fails
FAN FAILURE Blowers fail and the lamp will be turned off automatically some time after the failure
LAMP shows lamp running time
TOTAL TIME shows the total hours of the lamp since last lamp hour reset
RESET HOURS reset total lamp hours to zero
TEST MODE ONLY for product test or temporary use
PROUDCT CODE product's internal code, reference only for production or maintenance or repair
Description of the 1 st page of the screen
 Middle: the values of all DMX channels at 0 excluding Pan and Tilt at middle point
 Auto(Factory test/gobos/colors): runs programs set by the factory
 User：runs programs edited by a user
 Keep：Keep last frame of DMX value
 Shutter off：Shutters close.
