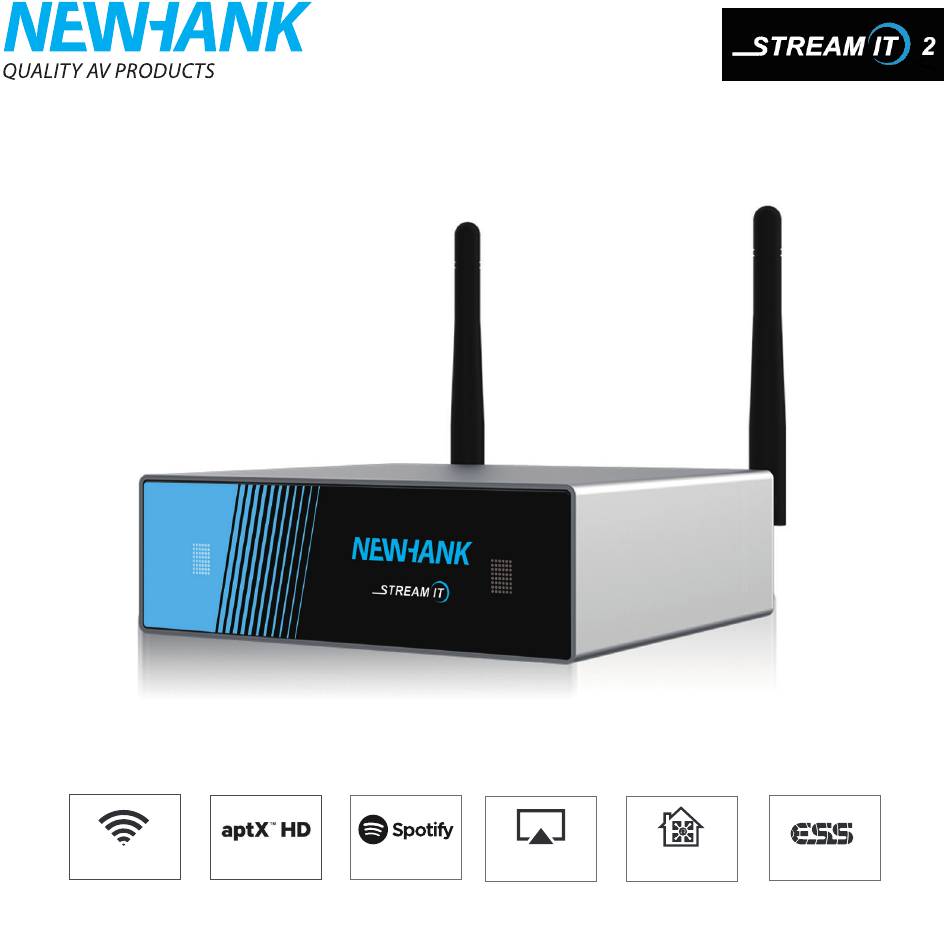

- Page 1 User's Manual Wireless Streaming Preamplifier aptX HD Spotify WiFi ESS SABR AirPlay Multi-Room www.newhank.com www.newhank.com...
-
Page 3: Table Of Contents
Table of contents 1. Introduction..............................1 2. What's in the box .............................1 3. Main Features ............................2 ............................3 5. Interface..............................4 6. Remote controller ............................5 7. Connection diagram ..........................6 8. How to use...............................6 8.1 App download ...........................6 8.2 Connection ............................7 8.2.1 Option 1 - Connection via app ....................7 8.2.2 Option 2 - Connection via LAN ....................8 8.2.3 Option 3 - Bluetooth pair ......................8 8.3 App features ............................9... -
Page 4: Introduction
Bluetooth aptX HD connectivity. Applying STREAM IT 2 to your current stereo system will enable you to stream music from your smart device, USB, NAS or streaming services, such as Spotify,Tidal or Qobuz in high resolution by Wiim Player App, AirPlay, Bluetooth or other third party compatible apps. -
Page 5: Main Features
3. Main Features - Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported. - Support streaming source from online services, smart device memory, USB pen drive, NAS, Bluetooth and line in. - All music sources can be restreamed in sync to other models from us. - Airplay,Spotify Connect, Qplay, DLNA, UPnP protocol and 3rd party app compatible. - Page 6 IEEE802.11 b/g/n 2.4G Ethernet Single 10/100M RJ45 Connectivity Bluetooth USB Host Play music from USB pen drive Coaxial output/input Digital output/input Optical output/input Analog output 1x RCA Audio input 1x RCA Power supply 5V-1A Micro USB input Decoding Music format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV 110dB 0.01%...
-
Page 7: Interface
5. Interfaces B LED: to show the device status. C IR receiver: for remote control. D Bluetooth antenna: external Bluetooth antenna for better signal strength. E Reset in WiFi mode), please change to WiFi mode when the device is in Bluetooth or line input mode. F RS232: Serial port for smart device communication. -
Page 8: Remote Controller
6. Remote controller... -
Page 9: Connection Diagram
7. Connection diagram 8. How to use 8.1 App download Download the Wiim Player application from App Store for iOS based devices and Google Play Store for Android based devices. Traditional Chinese and Japanese... -
Page 10: Connection
8.2 Connection 8.2.1 Option 1 - Connection via app 1. Power the device. 3. Go for mobile device WLAN settings> Connect mobile device to hotspot NHAUDIO_xxxx you will see a WiFi logo the .(short press the reset button if hotspot is not found) 4. -
Page 11: Option 2 - Connection Via Lan
1. Open the Wiim Player app. 2. Choose the Bluetooth mode at the bottom of the music source page of Wiim Player .(to activate the Bluetooth). 3. Open the Bluetooth on the mobile device. 4. Pair to device Bluetooth “NEWHANK”. -
Page 12: App Features
8.3 App features 8.3.1 Device setting Rename: to customize the device name Speaker info: you will see the device information Alarm Clock:to set the alarm clock Preset Content: you will see all the preset contents here. 8.3.2 To play local storage music... -
Page 13: To Play Music From Nas
- Choose line in mode on the application or remote control 8.3.5 To play Bluetooth mode - Choose the Bluetooth mode on the application or remote control, the LED will change to blue - Open the Bluetooth on your cellphone/tablet - Pair the device Bluetooth (NEWHANK) and play... -
Page 14: Streaming Services
8.4 Streaming services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. 8.4.1 Spotify To use Spotify, you have to own spotify premium account . NOTE: one Spotify account can only streaming to one device at a time. -
Page 15: Airplay
8.4.2 AirPlay The device supports AirPlay1, you can choose the AirPlay and play music 8.4.3 Qplay Our devices support QQ music using the Qplay protocol, you have to turn on the Qplay in the QQ music... -
Page 16: Multiroom And Multizone
8.5 Multiroom and Multizone Users can group multiroom and multizone on the Application, for example you can group device 1,2,3 and 4 together and play same music in sync, or group device 1 and 2 as zone A and device 3 and 4 as zone B, and play different music in zone A and zone B. -
Page 17: Left And Right Channel
8.6 Left and right channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel stereo. 8.7 Source mode change Method 1: change on application Users can change PLAY MODES WiFi, Bluetooth, Line input and USB, and optical, coaxial and HDMI on the application. -
Page 18: Firmware Update
8.9 Firmware update new features or services. 9. Play on PC There are several tools to play music from the PC 9.1 To play music from iTunes on Mac and Windows PC Our devices can stream audio sources from local storage, media library in Mac and Windows PC and online services from iTunes. -
Page 19: To Play Music From Windows Pc Via Foobar2000
9.2 To play music from Windows PC via Foobar2000 Our devices support UPnP protocol, with the popular foobar2000, you can play music from Windows PC to our devices. Please follow the steps below: 1. download the foobar2000 and install it. 2. -
Page 21: Faq
Q: Do your devices support airplay and third-party DLNA apps? Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal. - Page 22 Newhank assumes no responsibility for any differences between the product mentioned in this gu ide and the product you may have.
