6.4.

BLADE MAINTENANCE

WARNING! Failure to perform blade maintenance may cause excessive blade friction and shorten the operating time per battery
‰
charge.
6.4.1. Before and after operation, check the shear blades carefully. After operation, clean off the blades with a stiff brush.
6.4.2. Then wipe the blades with a cloth. And apply machine oil onto the blade edge and movable part.
6.5.

SHARPENING BLADES

Upper shearblade

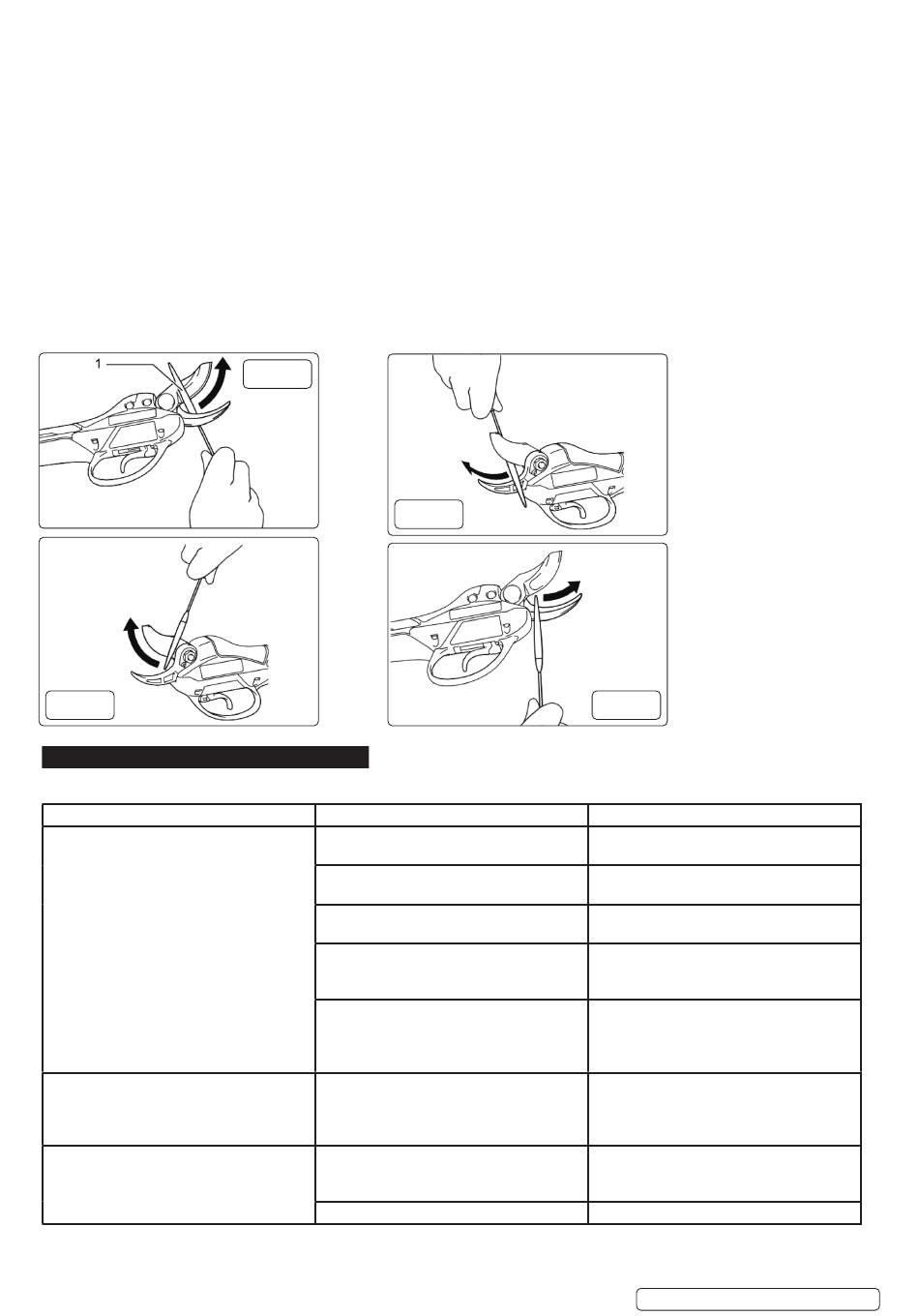

6.5.1. Apply the flat surface of the diamond file (not included, please see www.sealey.co.uk for more information) to the blade edge. Push
the diamond file towards the tip of the blade to sharpen along the entire blade edge. Maintain the same flat contact with the file
consistently along the entire blade edge (fig.6).
6.5.2. Apply the flat surface of the diamond file lightly to the opposite side of the blade. Move the diamond file towards the tip of the blade
lightly to remove burrs (fig.7).
Lower shearblade
6.5.3. Apply the round surface of the diamond file to the blade edge. Push the diamond file towards the tip of the blade to sharpen along the
entire blade edge (fig.8).
6.5.4. Apply the flat surface of the diamond file lightly to the opposite side of the blade. Move the diamond file towards the tip of the blade
lightly to remove burrs (fig.9).
DO NOT sharpen this side too much. File lightly only for removing burrs. Otherwise the blade clearance may become too much
8
or the blade life may be shortened.
fig.7

7. TROUBLESHOOTING

Warning! Remove battery before carrying out any maintenance.
‰
PROBLEMS
The shear blade does not move even after
pulling the switch trigger.
The shear blades are stuck on the branch.
The cut is not smooth.
© Jack Sealey Limited
fig.6
fig.8
POSSIBLE CAUSE
The battery is low.
I/O switch is"Off" position.
The shears are locked.
I/O switch is"on" position when inserting the
battery pack.
Switch trigger defect.
The branch is too thick.
The shear blades are dull.
The shear blades are worn out.
Original Language Version
fig.9
SOLUTION
Charge the battery.
Press the I/O switch to "I"position.
Unlock the shears by performing the steps
in "Switch action".
Press the I/O switch to the "O"(off) position
Once, and press the I/O switch to the "I" (on)
position again.
Stop using the tool immediately, and ask
your local authorized service centre for
repair.
Release the switch trigger. Press the I/O
switch to "O" position. Then pull the blades
straight out slowly from the branch.
Sharpen the shear blades, or adjust blade
clearance.
Replace the shear blades.
CP20VPS Issue 1 09/09/21
