Bunnings Weight Icons (2676)
30/3/04
10:11 AM
Page 3
40kg+
This product requires a two person lift
- use proper lifting techniques

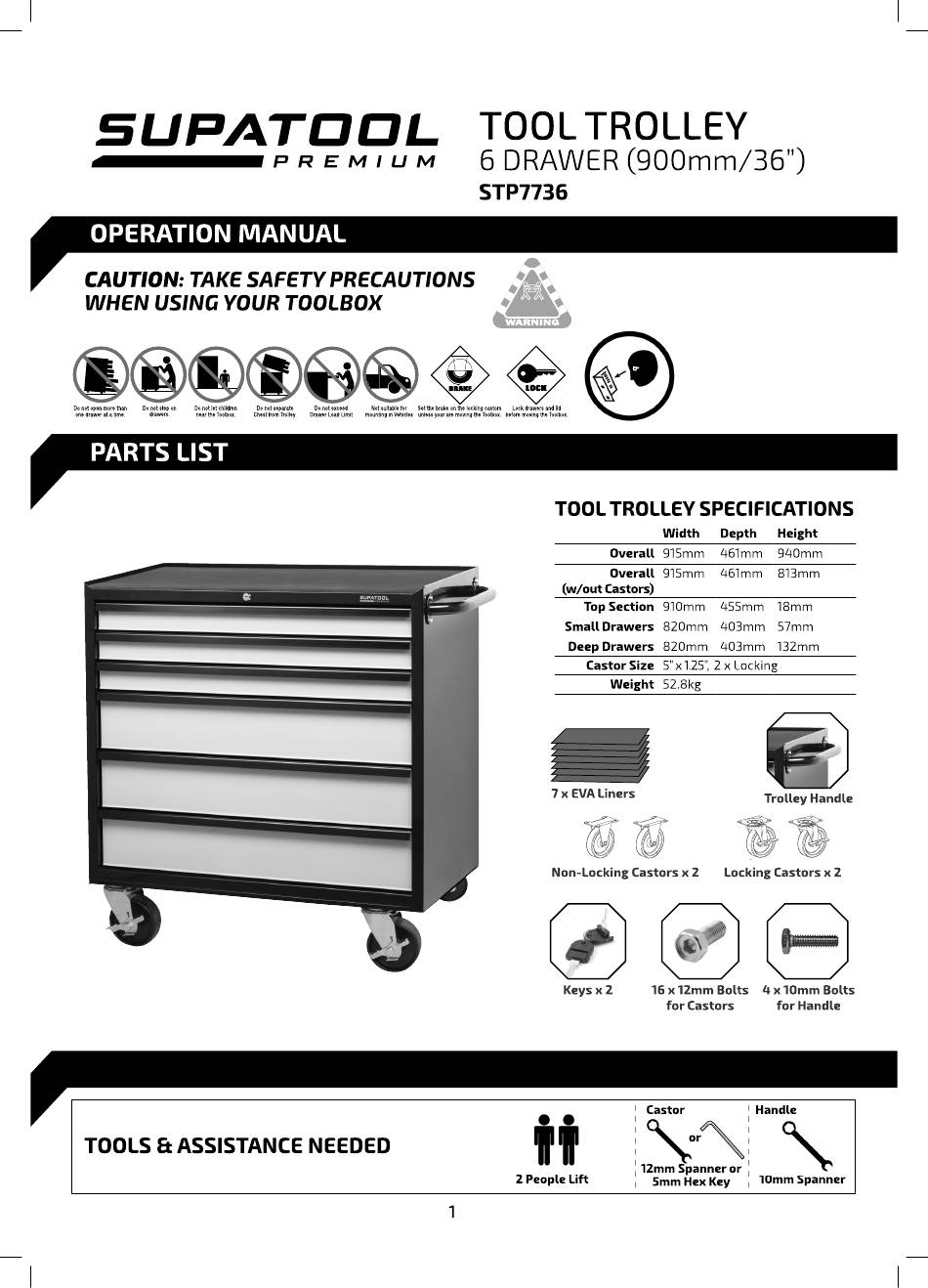

TOOL TROLLEY SPECIFICATIONS
Width
Overall 915mm
Overall
915mm
(w/out Castors)
Top Section 910mm
Small Drawers 820mm 403mm 57mm
Deep Drawers 820mm 403mm 132mm
Castor Size 5" x 1.25", 2 x Locking
Weight 52.8kg
IMPORTANT:
THIS OPERATING MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ CAREFULLY AND UNDERTAND ALL
INFORMATION BEFORE OPERATING TOOL.
SAVE THIS MANUAL FOR FUTURE USE.
Depth
Height
461mm
940mm
461mm
813mm
455mm 18mm
Advertisement
Related Manuals for Supatool PREMIUM STP7736
Summary of Contents for Supatool PREMIUM STP7736
- Page 1 Bunnings Weight Icons (2676) 30/3/04 10:11 AM Page 3 40kg+ This product requires a two person lift - use proper lifting techniques IMPORTANT: THIS OPERATING MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. READ CAREFULLY AND UNDERTAND ALL INFORMATION BEFORE OPERATING TOOL. SAVE THIS MANUAL FOR FUTURE USE. TOOL TROLLEY SPECIFICATIONS Width Depth...
- Page 2 1 : 10 Push up the right grey release lever Pull down the left grey release lever 技术要求 1、未注尺寸按模具； 2、未注公差按GB/T 1804-2000m级。 中山基龙工业有限公司 Zhongshan Geelong Manufacturin Company Limited Sign Signature Date Amount Change Number 签 名 标 记 处 数 更改文件号 年/月/日...
- Page 3 ITEM PART NO. DESCRIPTION QUANTITY S7736-1 Key Only (Specify Key Number) X 1 S7736-2 Lock & Key S7736-3 Trolley Handle S7736-4 Ball Bearing Slide (Pair) S7736-8 Castor Swivel x 1 S7736-9 Castor Swivel x 1 (Locking) S7736-10 Castor Bolt Pack S7736-11 EVA Mat Pack 7 Piece National Head Office...
