Supatool STP7536 Operation Manual

OPERATION MANUAL
CAUTION: TAKE SAFETY PRECAUTIONS
WHEN USING YOUR TOOLBOX
PARTS LIST
ASSEMBLY INSTRUCTIONS
Removing the Drawers
1
• Fully extend the empty drawer.
• Push up the right grey release
lever while pushing down the
left grey release lever.
• Pull the drawer outward until
it is released from the drawer
slide.
TOOLS & ASSISTANCE NEEDED
1
Push up the
right grey release lever
1

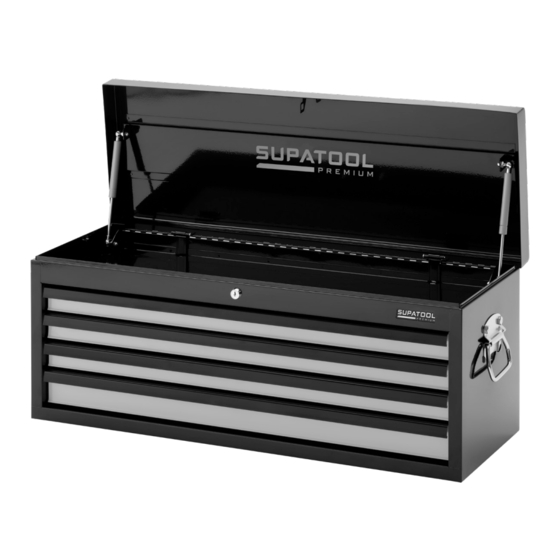

TOOL CHEST
4 DRAWER (900mm/36")
STP7536
TOOL CHEST SPECIFICATIONS
Overall 900mm 305mm 365mm
Top Tray 883mm 295mm 50mm
Small Drawers 810mm
Deep Drawers 810mm
Weight 21.4kg
5 x EVA Liners
MAINTENANCE
• Periodically tighten all hardware
• Lubricate the slides twice a year
• Lubricate the lock with graphite annually
• Use a damp Microfibre cloth to clean all surfaces
Re-Inserting The Drawers
2
• Extend the drawer slides.
• Insert the brackets on each side
of the drawer into the slots on
the slides, being careful that they
Pull down the
are properly positioned.
left grey release lever
• Once properly inserted,
completely close the drawer
to set the slides in their proper
positions.
IMPORTANT:
THIS OPERATING MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ CAREFULLY AND UNDERTAND ALL
INFORMATION BEFORE OPERATING TOOL.
SAVE THIS MANUAL FOR FUTURE USE.
Width Depth Height
268mm 40mm
268mm 50mm
Keys x 2
2 People Lift
