Lighthouse A136-15-OB Operation Manual

All-in-one led display a modular system for indoor applications
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1.5625 mm Pixel Pitch with SMD LEDs
A136-15-OB
All-in-one LED Display
A modular system for indoor applications
Operation Manual
2021.08
Document version 1.00
Document: LH-A136-15-OB-OPM-DR-1.00
Page 1 of 37
© Lighthouse Technologies Ltd.
HK: T +852 2192 1688
F +852 2423 1092
info@lighthouse-tech.com
www.lighthouse-tech.com

Advertisement

Table of Contents
loading

Related Manuals for Lighthouse A136-15-OB

Summary of Contents for Lighthouse A136-15-OB

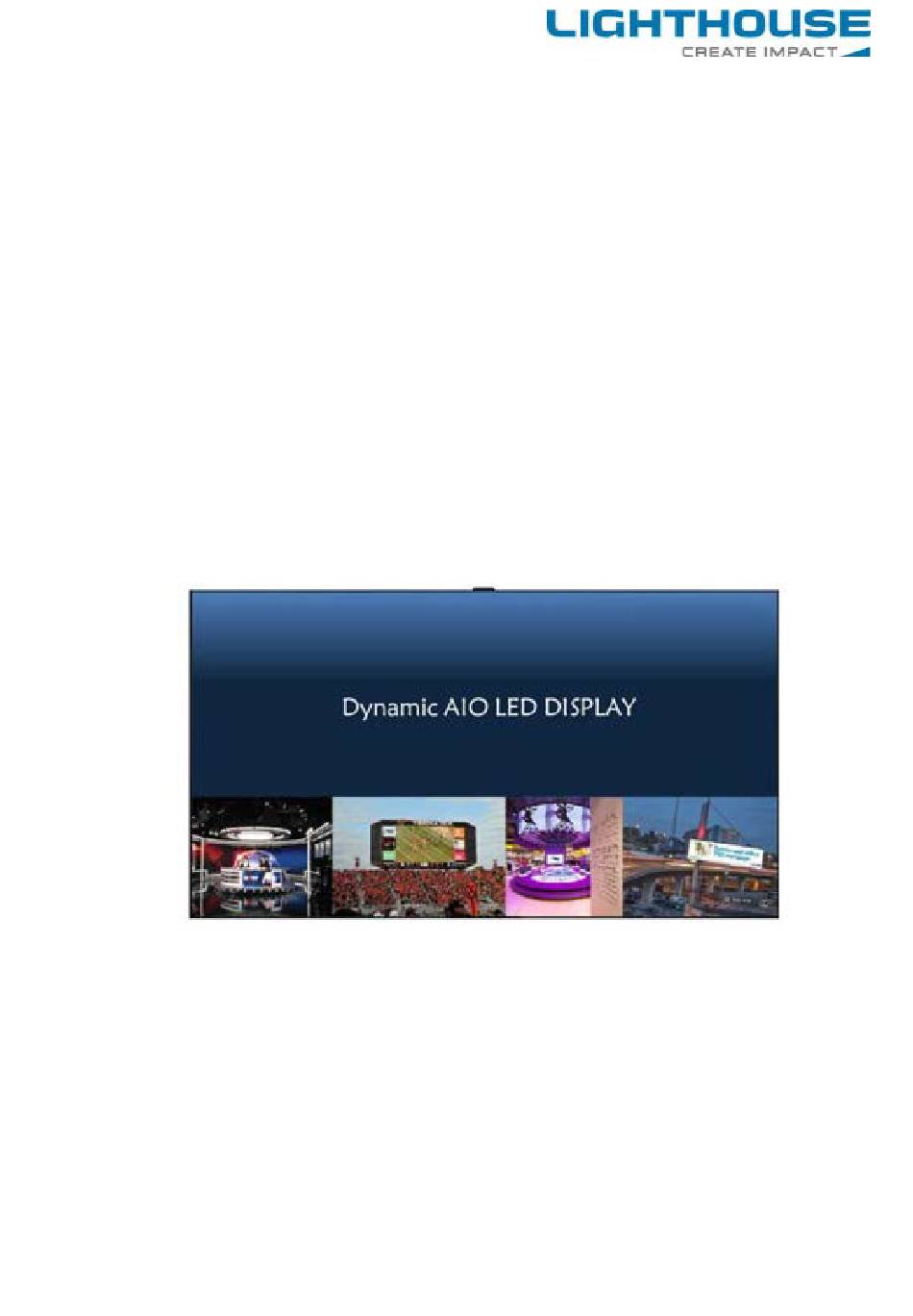

  • Page 1 1.5625 mm Pixel Pitch with SMD LEDs A136-15-OB All-in-one LED Display A modular system for indoor applications Operation Manual 2021.08 Document version 1.00 Document: LH-A136-15-OB-OPM-DR-1.00 Page 1 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 2  [Caution to prevent damage to the LED from static] Do not touch the product without anti-static gloves. Document: LH-A136-15-OB-OPM-DR-1.00 Page 2 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 3: Table Of Contents

    FCC Statement………………………………………………………….…..……………………………… Power Cable Wiring………………………………………………….……………………..…….………… 3.3.1 AC Power…………………………………………………………………………………………………… 3.3.2 Number of Power Cords…………………………………………………………………………………… 3.3.3 DC Power……………………………………………………………….…………………………………... Setting ……………………………………………………………………………………………………… The Introduction of A136-15-OB Screen Interface and Function…………………………………… 4.1.1 Remote Controller…………………………………………………………………………………………... 4.1.2 Interface Specifications……………………………………………………………………………………… 4.1.3 Connection………………………………………………………………………………………………… Parameter Settings………………………………………………………………………………………… 4.2.1 Set Up the Connection………………………………………………………………………………………...

  • Page 4: General

    Brief Description of Purpose and Operation of System The A136-15-OB LED display system is designed for indoor use, where a high quality dynamic image is to be made visible to large numbers of people. The panel size is designed from the beginning according to end-user requirements.

  • Page 5: A136-15-Ob Led Panel Specification

    A136-15-OB(12X6IM) LED Panel Specification 1.5625mm Indoor SMD LED AIO Screen Parameter Unit Value Brightness(typ*) nits Color temperature deg. K 6,500 Visual viewing angle - Horizontal deg. 160(+80/-80) Visual viewing angle - Vertical deg. 160(+80/-80) Panel weight(max) kg / lb 131/288.9 weight(max)(sq.m)

  • Page 6: A136-15-Ob Led Panel System Specification

    A136-15-OB LED Panel System Specification Control interface USB-B Display configuration interface Indicator light and Button Standby light(red) Indicator light Power light(green) Button Brightness Keys（up, down button） （customizable） Standby/Power On Button Other Ports USB3.0 1xUSB3.0, supports Ultra-highspeed USB device USB2.0 2xUSB2.0, supports external USB flash disk and other external...

  • Page 7: Main Assemblies

    The panel is designed to be mounted to a fixed framework. The listing in Table 2.1 is the main components of a A136-15-OB LED panel. The profile of the panel is shown in Figure 2.2.

  • Page 8: Intelligent Modules (Im)

    Intelligent Modules (IM) The front face of the A136-15-OB LED display is fitted with 72 light emitting diode (LED) dot LED modules known as Intelligent Modules. Each intelligent module is fitted with 28880 LEDs* plus associated drive electronics. Electrical connections (low voltage power, and digital data) are made to the rear of each intelligent module, from inside of the enclosure.

  • Page 9: Installation Guides

    The A136-15-OB LED display is designed to be mounted on the stand (sold separately) or on the wall. When installing, it is important to ensure that the entire screen is correctly aligned, both vertically and horizontally.
  • Page 10 Use 12pcs M3X12 screw (item 7) to install the right plate（item2） with right connection plate and bottom connection plate(item5/item6). Document: LH-A136-15-OB-OPM-DR-1.00 Page 10 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 11 It is suggested to fix the assemble frame of shelves completely according to the fixed points shown in the circle. Document: LH-A136-15-OB-OPM-DR-1.00 Page 11 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 12 PANEL CENTER LINE PANEL CENTER LINE PANEL CENTER LINE PANEL CENTER LINE HORIZONTAL HORIZONTAL HORIZONTAL HORIZONTAL PANEL CENTER LING VERTICAL Document: LH-A136-15-OB-OPM-DR-1.00 Page 12 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 13: Screen Installation

    First, the 8 PCS fixed screw behind the box are assembled to the box and locked with tools. b. The following figure is marked in red. Large-headed Screw Rear view 3.1.2 Screen Installation Brief installation diagram Document: LH-A136-15-OB-OPM-DR-1.00 Page 13 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 14 The two members jointly lifted the right half cabinet and placed it on the Stand's bracket. Place the left half cabinet on the bracket in order. Document: LH-A136-15-OB-OPM-DR-1.00 Page 14 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 15 NETWORK CABLE(4PCS) AC CABLE(1PC) Please pay attention to the labels,eg.RJ45 cable labelled OUT1 is matched to the connector labelled OUT1. Document: LH-A136-15-OB-OPM-DR-1.00 Page 15 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 16 After the cabinet is joined, follow the instructions of Label to quickly fix the cabinet with the hexagonal plate. Document: LH-A136-15-OB-OPM-DR-1.00 Page 16 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 17 4 PCS M4 screws Install M4 screws. Install 11 pcs fasten screws Install 20 pcs M4 flat head screws Document: LH-A136-15-OB-OPM-DR-1.00 Page 17 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 18 2. Connect the cable to the convertor board. Align the sensor box to the panel and tighten it with two screws. Document: LH-A136-15-OB-OPM-DR-1.00 Page 18 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 19 Step3. Take the tool up and horizontaly fit it closely to the display surface. Please pay more attention to the direction. Step4. Pull the handles towards the centre. Step5. Ensure the magnet is locked. Detach the tile carefully. Document: LH-A136-15-OB-OPM-DR-1.00 Page 19 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 20 Also, there is a panel serial number at the left bottom of case which match to the one on the back side of intelligent modules and spare intelligent modules. Document: LH-A136-15-OB-OPM-DR-1.00 Page 20 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 21 Pack up six intelligent modules into an antistatic bag separately and set them into the foam box. (Pack up all the intelligent modules in this way. ) 6 pcs IM Document: LH-A136-15-OB-OPM-DR-1.00 Page 21 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 22 2. Pack up the mounting plate. 3. Pack up the cabinet and put them into the carton. Document: LH-A136-15-OB-OPM-DR-1.00 Page 22 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 23: Electrical

    Electrical The power distribution system used must provide adequate protection against excess line current and leakage currents to earth. Electrical Characteristics for ONE A136-15-OB At 100V AC Input At 240V AC Input Parameter Unit Rating Max. Parameter Unit Rating Max.

  • Page 24: Power Cable Wiring

    Colour of wire D.C. Supply connection White Green LED / Blue LED / Red LED /TTL Black Document: LH-A136-15-OB-OPM-DR-1.00 Page 24 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 25: Setting

    Setting The Introduction of A136-15-OB Screen Interface and Function 4.1.1 Remote Controller 4.1.2 Interface Specifications NOTE: The volume buttons are not placed on the cabinet. It can only be controlled by the remote controller. Document: LH-A136-15-OB-OPM-DR-1.00 Page 25 of 37 ©...

  • Page 26: Connection

    4.1.3 Connection Document: LH-A136-15-OB-OPM-DR-1.00 Page 26 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 27: Parameter Settings

    [Control] -> [LED Screen Settings] -> [Sending device] -> [Sender], click [Detect Senders].If detect the product model, it means the connection is successful. Document: LH-A136-15-OB-OPM-DR-1.00 Page 27 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...

  • Page 28: Basic Setup

    Input format is displayed according to HDMI and internal media source screen resolution. Clipping, which can be used to zoom out the input signal source screen. Document: LH-A136-15-OB-OPM-DR-1.00 Page 28 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...
  • Page 29 The resolution of the main screen can be modified. After the resolution is modified, power off and restart can take effect. Document: LH-A136-15-OB-OPM-DR-1.00 Page 29 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...

  • Page 30: Others

    On the right is the statistics of the receiver card loaded on the network port, and on the left is the detailed information of the receiver card. Click [Detect All Receivers] to refresh the current load condition. Document: LH-A136-15-OB-OPM-DR-1.00 Page 30 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...

  • Page 31: Appendix A Procedure For Im Replacement

    Inspection: Recheck the state of the network cable in the corresponding position to confirm that the connection is OK. Document: LH-A136-15-OB-OPM-DR-1.00 Page 31 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 32 The abnormal module position of IM is not bright, the state of the adapter board in the corresponding position is work abnormally. Inspection: Replace the adapter board in the corresponding position. Document: LH-A136-15-OB-OPM-DR-1.00 Page 32 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 33 If the signal source is switched without a black screen, confirm that the input source is normal, the signal line is normal, and the signal transfer board is working normally. Document: LH-A136-15-OB-OPM-DR-1.00 Page 33 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com...

  • Page 34: Appendix C A136-15-Ob Mechanical Assembly

    Appendix C A136-15-OB Mechanical Assembly Document: LH-A136-15-OB-OPM-DR-1.00 Page 34 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
  • Page 35 Document: LH-A136-15-OB-OPM-DR-1.00 Page 35 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 36: Appendix D A136-15-Ob Data Wiring Diagram

    Appendix D A136-15-OB Data Wiring Diagram Document: LH-A136-15-OB-OPM-DR-1.00 Page 36 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...

  • Page 37: Appendix E A136-15-Ob Power Wiring Diagram

    Appendix E A136-15-OB Power Wiring Diagram Document: LH-A136-15-OB-OPM-DR-1.00 Page 37 of 37 © Lighthouse Technologies Ltd. HK: T +852 2192 1688 F +852 2423 1092 info@lighthouse-tech.com www.lighthouse-tech.com...
