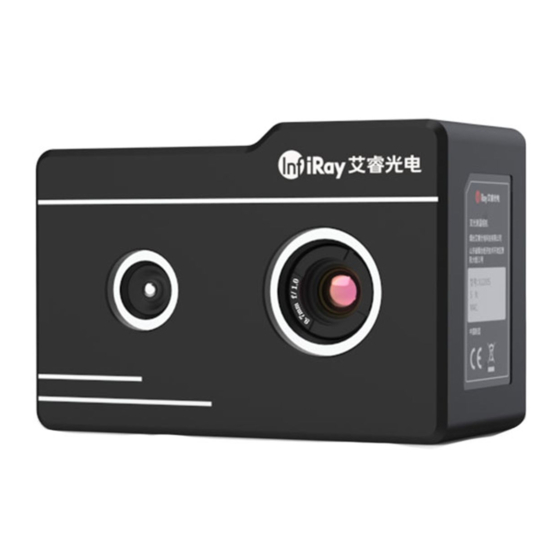

- Page 1 DTC300 Accurate Dual-spectrum Temperature Measurement Camera Quick Start Guide V1.0.1 Yantai IRay Technology Co., Ltd.
- Page 2 Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China ©IRay Technology Co., Ltd. 2018 Reserve all the right. All in this manual including texts, pictures, diagrams and other contents belong to IRay Technology Co.,Ltd (Hereinafter referred to as “Our company”or “IRay Photoelectric”).
-
Page 3: Table Of Contents
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China Contents 1. Overview ....................1 2. Product Performance ................2 3. Installation Guide..................4 3.1 Product and Accessory List ............... 4 3.2 Mounting and Connecting Thermal Camera ........5 3.3 Site Layout Solution ................ -
Page 4: Overview
Yantai 264006, P. R. China 1. Overview DTC300 is a dual-spectrum accurate temperature measurement camera, which is developed for the body temperature screening and has the characteristics of non-touch, high sensitivity and flexible installation etc. It can be used for quick temperature... -
Page 5: Product Performance
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China 2. Product Performance Table 1 Parameters of Product Model DTC300 Detector Parameters Detector type VOx Uncooled Infrared FPA Detector Resolution 384× 288 17μm Pixel pitch Response spectrum 8～14μm... - Page 6 Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China Operating temperature -10℃~50℃ Storage temperature -20℃～+65℃ Humidity 5~95%，no condensation Software Function Face recognition Support intelligent face recognition Secondary development Provide Windows /Android SDK and development manual Note：...
-
Page 7: Installation Guide
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China 3. Installation Guide 3.1 Product and Accessory List Before installation, please make sure that the equipment in the package is intact and all parts are available. Standard package Type-C cable and module connection cable（1pcs for each) DTC camera... -
Page 8: Mounting And Connecting Thermal Camera
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China 3.2 Mounting and Connecting Thermal Camera As shown in figure 2, there is a 1/4-20UNC hole at the bottom of camera, which is used to mount camera to adapter or bracket. Figure 2 Bottom Diagram of DTC Camera Take the example of fixing camera on a TV bracket as an example, please find the specific steps as following. - Page 9 Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China the hole on floor stand, then screw in the double nut rod. After loosening the screw on PTZ and adjusting the direction of camera at a suitable angle, fixed the adjustment screw.
-
Page 10: Site Layout Solution
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China body temperature after powering on 40 minutes, to make sure the camera is stable enough for the measuring accuracy. Figure 7 Overall Installation Effect Chart 3.3 Site Layout Solution 1）Reference layout Refer to Figure 8 for the layout plan in a wide space area. -
Page 11: Site Installation And Layout Considerations
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China ⚫ Installation direction and height of camera The installation distance and height of the camera should be arranged according to the actual situation, the recommended distance is 2m, and the installation height should ensure that all of the observed pedestrians can appear in the field of view. -
Page 12: Quick Start Of Client
The following operation guide is a simplified version, which is suitable for human body temperature screening application. For more detailed function introduction, please refer to the instructions in the corresponding software package, or contact with Model Tool User Guide DTC300 Intelligent Temperature DTS Intelligent Temperature Screening System Screening Operation Manual 1）Run Client APP... - Page 13 Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China Generally, the APP will run automatically after turn on computing box. Users can click iRayDTS APP icon to run this APP if the software is exited during using. The iRayDTS APP icon is shown in figure 10.
- Page 14 Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China value will display in real time. 5． Human face can be detected and face temperature can be displayed in real time both in visible image and infrared image. 6．...
-
Page 15: Trouble Shooting
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China Figure13 Menu Interface Menu Functions： 1. Switch the preview mode: Split screen mode, single visible light mode, single infrared mode. 2. Switch language between Chinese and English, App will restart automatically after switching. -
Page 16: Maintenance
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China of blue rectangle of visible image. USB interface are not connected Check the cable and connector is connected Image stuck well well, or restart the APP 6 Maintenance 6.1 Notice ⚫... -
Page 17: Safety Codes
⚫ Do not put the product into the fire. 7. After Sales Service The DTC300 high-precision temperature measuring infrared camera is developed by our company and has good after-sales service guarantee such as equipment maintenance and repair. If you have any needs, please contact our company. -
Page 18: Company Information
Yantai IRay Technology Co., Ltd. 11th Guiyang Street, YEDA Yantai 264006, P. R. China 8. Company Information IRay Technology Co.,Ltd. Website: www.IRaytek.com Phone: 86-0535-3410623 Fax: 86-0535-3410610 Email: sales@IRaytek.com Address:11th Guiyang Street, YEDA, Yantai, Shandong Province V1.0.1...
