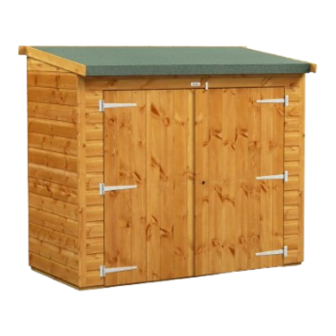

Power 6ft Instruction Manual

Pent bike shed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Pent Bike Shed Instruction Manual
6ft Models
________________________________________________________________
WARNING
UNPACKING SAFELY
Please follow these instructions to unpack your garden building safely
• Two people minimum to unpack
• Place the pallet on firm level ground
• Cut the plastic banding
• Remove each panel by removing screws one column at a time as indicated below
• Be careful of loose components inside the pack when removing panels
• Check all the components against the checklist prior to install
]
______________________________________________________________
BASE KIT AND FIXING PACK
Please note – if you have ordered a base kit it's unlikely you will be able to see the base kit from
the outside of the pack - it will be inside your panels. The fixings are also inside the pack.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power 6ft

Summary of Contents for Power 6ft

  • Page 1 Pent Bike Shed Instruction Manual 6ft Models ________________________________________________________________ WARNING UNPACKING SAFELY Please follow these instructions to unpack your garden building safely • Two people minimum to unpack • Place the pallet on firm level ground • Cut the plastic banding •...
  • Page 2 (Please note – this image is for illustration purposes only. The shed you ordered may be a different size or roof sloping other way) Watch the video! We recommend watching our installation video before starting assembly of your Power shed. This video can be applied to all pent sheds in our range...

  • Page 3: Table Of Contents

    Contents Page 3 – Before You Start Page 4 – Timber & Base Details Page 5 – Components Checklist Page 6 – Pre-Assembly Page 7 – Floor Page 8 - 11 – Walls Page 12 – Front Top & Gable Page 13 –...

  • Page 4: Before You Start

    We also strongly advise you to wear safety glasses when installing the felt to protect your eyes. 2 persons recommended Power Sheds Ltd cannot be held responsible for any damage or injury sustained due to incorrect unloading, unpacking, or assembly of any of our products.
  • Page 5 It is recommended that the floor is at least 25mm above the surrounding ground level to avoid flooding. If you have not chosen to purchase our Power Base, then other suitable bases would include a concrete base (75mm of concrete on top of 75mm of hardcore) or a paving slab base (slabs laid on top of 50mm of sharp sand).

  • Page 6: Components Checklist

    Component checklist Page 5 of 18...

  • Page 7: Pre-Assembly

    • 40mm galvanised nails If you have ordered a Power Base, you will also receive 80mm and 100mm screws. Please note 35mm screws are not needed for a pent (This is a standard pack used for both pent and apex sheds) On the rare occasion that not enough screws are provided please contact us and make us aware so we can send more out to yourself.

  • Page 8: Floor

    70mm screws. This will cover the ends of the floor joists. On our 6x2, 6x3 and 6x4 sizes the bearers will need to run the 6ft length, on our 6x5 and 6x6 sizes the bearers will fix to the gable end as pictured below.

  • Page 9: Walls

    Bike Shed. 3. Start with the 2ft panel that will be part of your 6ft wall – position this on top of the floor panel. Ensure the side of the panel is flush with outer edge of floor (but not overlapping the heavy duty bearer on the 6x5 and 6x6).
  • Page 10 5. Keep going until the back wall and both ends are secured together leaving the front section open. 6. Attach the one panel which goes at the side of doors (called the door wings). Again, continue to use 50mm screws (three screws per join). Page 9 of 18...
  • Page 11 9. Once the two panels are on which go at the side both sides of the doors (door wings), you can add the door head. This is the part which has the ‘Power’ brand on. To secure these to the panels below you need to screw up through the door wings and into the door head.
  • Page 12 Make sure all the side walls are square and aligned at the top 10. When you have secured all the wall panels together you then need to secure these to the floor using 70mm screws provided. Screw into the floor with 2x screws for every wall panel (internally) ensuring the screws are driven through the framing at the bottom of the side/gable walls, through the floorboards and into the floor joists.

  • Page 13: Front Top & Gable

    Front Top & Gables The Power Pent Shed can be higher at the front or the back – you can choose this as you assemble it. 1. Add the pent front top to the side you want to be higher and screw to the panels below with 50mm screws.

  • Page 14: Roof

    Roof 1. Your pent will come with one roof panel (if it’s a 6x2 or 6x3) or two roof panels (if it’s 6x4, 6x5 & 6x6). 2. Place the roof panel(s) in place so that the framing on the roof panel run parallel with the gables i.e. from the high side to the low side.

  • Page 15: Doors

    Doors 1. Your shed will come with two doors which you will need to hang. The door with the lock on will go on the right (as you look at the shed from the outside) and the door with the shoot bolts will go on the left. 2.

  • Page 16: Felt

    Felt Health and Safety – Use safety goggles when installing the roofing felt. 1. Before laying the felt, you will need to attach the back bargeboards with the 40mm galvanised nails. As you can see there are two for the back – one at the edge of the roof and one on the underside. These soffits may come in more than one section and may need cutting down to size with a saw depending on which size shed you have chosen.
  • Page 17 There is no bargeboard for the low side as it could trap rainwater from running off the roof. 2. Secure corner strips which are 58mm wide, at each corner of your Power shed with 40mm nails (at least four per strip). Extra strips are provided to cover the joins between side wall panels.

  • Page 18: Aftercare & Maintenance

    USEFUL TIP – Looking for some inspiration? Our Instagram has images of hundreds of Power Sheds which have all been sent to us by customers and is a great way to look at the different ways you can build and paint your shed!
  • Page 19 (4x) board lengths (at either 4ft or 6ft depending what you ordered). Please note: These are 70mm wide and are the same material as the bargeboards. Be careful not to use these during assembly of your Power Shed – These boards are usually taped together. •...
  • Page 20 Returns If Power is not for you and you’d like to return your shed within 14 days of delivery then we will collect the item from you without charging a collection fee. No fuss, no fees! All we ask is that you do not unpack the shed or take the shed off the pallet. You will be able to see the shed panels on the pallet if you want to double check the quality of the shed panels.
