MAN – FD220CV
Manufactured by MILIC, LLC with marketing support from Flight Display Systems.
This product does not have FAA PMA approval.
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
Rev:
C
FD220CV Ver HD
FD220CV Ver HDVC5
FD220CV Ver HDSDI
FD220CV Ver HDCV
Installation and Operation Manual

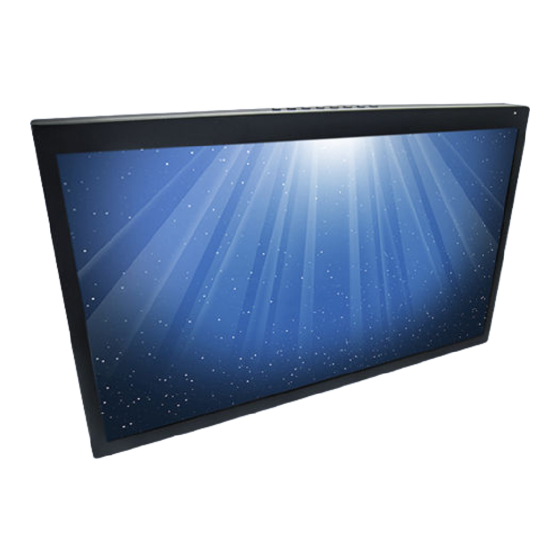

22" High-Definition Widescreen LCD
Revision Date:
07/01/2012
Page 1 of 25
Advertisement
Table of Contents
Related Manuals for Flight Display Systems FD220CV Ver HD
Summary of Contents for Flight Display Systems FD220CV Ver HD
- Page 1 FD220CV Ver HDVC5 FD220CV Ver HDSDI FD220CV Ver HDCV Installation and Operation Manual 22” High-Definition Widescreen LCD Manufactured by MILIC, LLC with marketing support from Flight Display Systems. This product does not have FAA PMA approval. TECHNICAL SUPPORT 678-867-6717, or www.FlightDisplay.com...
- Page 2 Revision Date: 07/01/2012 MAN – FD220CV Page 2 of 25 FD220CV Ver HD / FD220CV Ver HDVC5 / FD220CV Ver HDSDI / FD220CV Ver HDCV 22” High-Definition Widescreen LCD © 2011 Flight Display Systems. All Rights Reserved. Flight Display Systems...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 3 of 25 Table of Contents General Information ........................4 1. Front View ..........................4 2. Additional Information ....................4 Specifications ..........................6 Installation Instructions ......................6 1. Rear Connector Orientation ....................7 2. - Page 4 Technical Support ........................19 Instructions for Continued Airworthiness ................19 Warranty ............................20 Appendix A ..........................21 1. FD220CV Ver HD/Ver HDSDI (DB-25 Pinout)............21 2. FD220CV Ver HDVC5 (DB-25 Pinout) .................22 3. FD220CV Ver HDSDI (BNC Pinout) ................23 4. FD220CV Ver HDCV (DB-25 Pinout) ................24...
-
Page 5: General Information
Front View Additional Information The FD220CV Ver HD utilizes FIVE video source inputs. They are in order of picture quality: (2) HDMI, 1080p, (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1) VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). -
Page 6: Specifications
Page 6 of 25 The LCD is protected with a .060” Lexan lens to prevent scratching of the LCD and reduce glare. FD220CV Ver HD/Ver HDVC5/Ver HDSDI/Ver HDCV is made of all metal components. DO-160 testing documents are available upon request. -
Page 7: Rear Connector Orientation
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 7 of 25 Mounting against the bulkhead or on a bracket: The unit can be mounted internal, external, or partially internal to the bulkhead. It is recommended that you leave about ¼ inch of space around the rear, top and bottom of the display for the exhaust fan to have circulating air. -
Page 8: Power
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 8 of 25 Power This is a 28V DC monitor that requires 3.0 Amps (84 watts) of power. Wiring Suggestions All shields should be grounded to the connector at the source, and floating at the display. Avoid routing video wiring parallel to: ... -
Page 9: Rs-485 Wiring
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 9 of 25 We recommend coax cables be terminated using solder sleeve coaxial cable terminators such as Raychem Part Number CWT-4174-W122-5/9. RS-485 Wiring Shielded twisted-pair 22 AWG wire is recommended for RS-485 wiring. -
Page 10: Hdmi
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 10 of 25 HDMI HDMI (High-Definition Multimedia Interface) defines the protocol and electrical specifications for the signalling, pin-out, electrical, and mechanical requirements of cable and connectors used for transmitting High-Definition content .The Type A HDMI connector (shown below) has 19 pins with bandwidth to support all SDTV, EDTV, and HDTV modes. - Page 11 All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 11 of 25 The rated current of the equipment and associated voltage drop should be taken into consideration when selecting wire gauge. The following example is based on an install with a 28VDC power system and a total of 50 feet of wire between the circuit breaker, monitor and ground.
-
Page 12: Power/Video
Power/Video See Appendix A for Pinouts. RS-485 Control (For FD220CV Ver HD & Ver HDVCD5 ONLY) RS-485 is a two-wire communication interface that allows an external device such as a computer or switching unit to control the monitor’s functions remotely. Up to 99 monitors can be separately controlled by one unit. -
Page 13: Rs-485 Network
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 13 of 25 RS-485 Network: If there is more than one monitor connected to the aircraft’s RS-485 controller system, it is strongly recommended to connect the system in series, or daisy-chain, and terminate the twisted pairs with a 120 OHM resistor. -
Page 14: Operation Instructions
No pilot or aircrew action is necessary during flight or ground operation. The passengers will be able to change the video output from the FD220CV Ver HD/Ver HDVC5/Ver HDSDI/Ver HDCV using the video source select switch on the LCD monitor, or remotely throughout the cabin with the included IR remote. -
Page 15: Remote Control Button
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 15 of 25 Remote Control Buttons Refer to Button Controls on previous page. Remote required for FD220CV Ver HDSDI Remote required for FD220CV Ver HD & FD220CV Ver HDVC5... -
Page 16: Technical Drawing
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 16 of 25 Technical Drawing... - Page 17 All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 17 of 25...
-
Page 18: Troubleshooting
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 18 of 25 Troubleshooting Video Noise Check for an incorrect ground in the installation wiring. See specific examples of video noise below, or visit http://flightdisplay.com/Grounding.pdf VGA Shadowing Most of shadowing problems are due to shielding on the wire. -
Page 19: Technical Support
07/01/2012 MAN – FD220CV Page 19 of 25 Technical Support Should you have any questions concerning this product or other Flight Display Systems products, please contact our Product Support representatives at (678) 867-6717. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004... - Page 20 If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion.
- Page 21 All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 21 of 25 Crimp Contacts P/N: M39029/63-368 or Equivalent Description Number 28VDC Power 28VDC Ground 28VDC Power 28VDC Ground Composite Video - Signal Composite Video - Shield S-Video Y - Signal S-Video - Shield S-Video C - Signal...
-
Page 22: Fd220Cv Ver Hdsdi (Bnc Pinout)
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 22 of 25 Crimp Contacts P/N: M39029/63-368 or Equivalent Description Number 28VDC Power 28VDC Ground 28VDC Power 28VDC Ground Red (-) (T568B Cat5 Pin 1) Red (+) (T568B Cat5 Pin 2) Blue (-) (T568B Cat5 Pin 3) 28VDC Power... -
Page 23: Fd220Cv Ver Hdcv (Db-25 Pinout)
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 23 of 25 Description Center Video Signal Shell Video Return FD220CV Ver HDCV Pinout for P1 (DB-25 Receptacle) Connector P/N: M24308/2-283 or Equivalent Crimp Contacts P/N: M39029/63-368 or Equivalent... -
Page 24: Log Of Revisions
All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 24 of 25 Description Number 28VDC Power 28VDC Ground 28VDC Power 28VDC Ground Composite Video – Signal Composite Video – Shield S-Video Y – Signal S-Video Y –... - Page 25 All manuals and user guides at all-guides.com Rev: Revision Date: 07/01/2012 MAN – FD220CV Page 25 of 25 Date Page Description 04/08/2011 Initial Release 07/21/2011 Added FD220CV Ver HDCV 07/01/2012 Update format...
