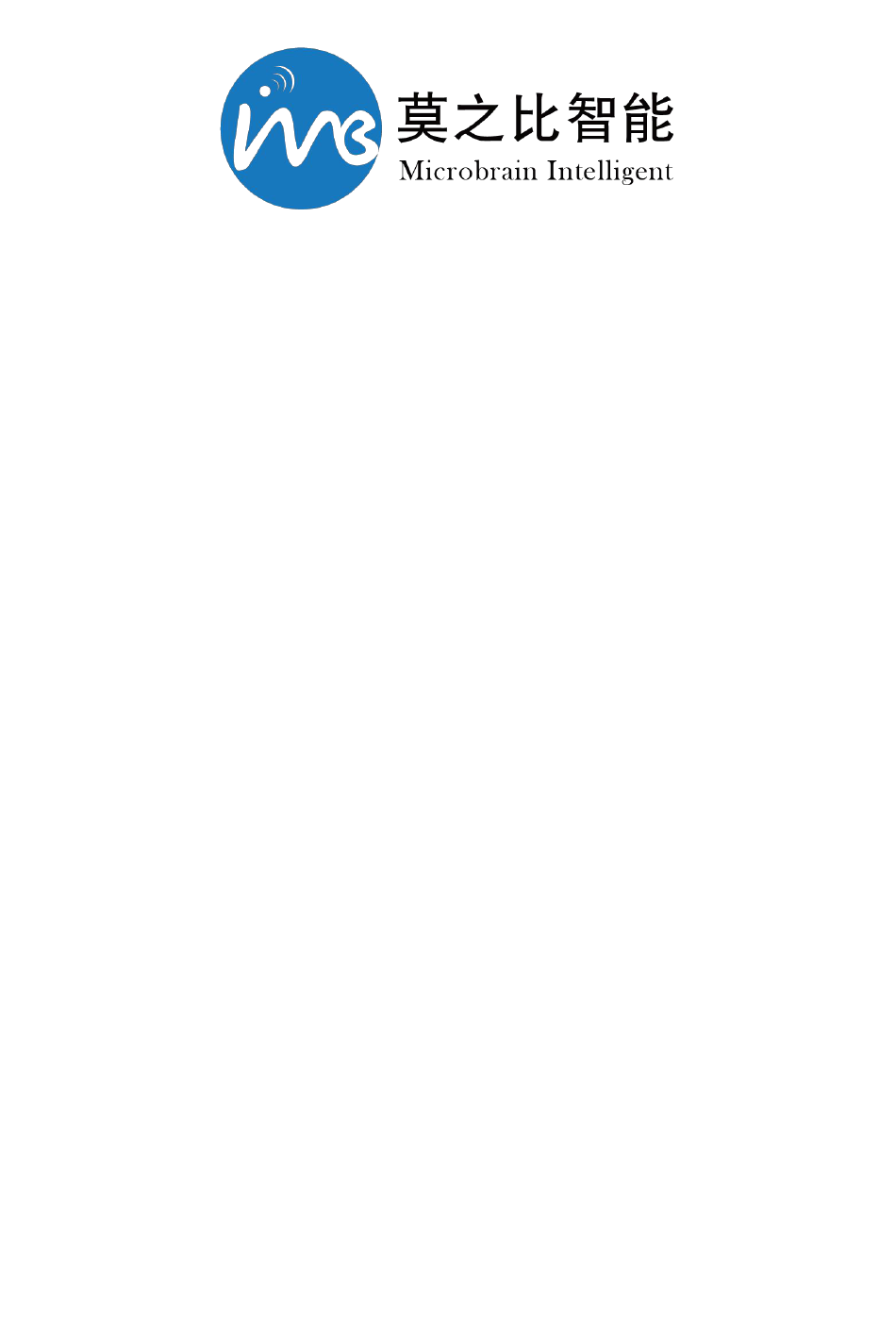

- Page 1 User Manual of IML-D01 Millimeter Wave Radar for Vital Signs Monitoring 长沙莫之比智能科技有限公司 Microbrain Intelligent Technology Co., Ltd.
- Page 2 All rights Reserved to Changsha Microbrain Intelligent Technology Co., LTD. Reproduction, Copy, or Revision in any form without permission of Changsha Microbrain Intelligent Technology is illigal and will be charged. The use of the products and manuals will not be subject to patent liability.
-
Page 3: Table Of Contents
CATALOG 1.Introudution........................ 1 2.Product features......................2 3.Product parameters.....................3 4.Delivery list........................4 5.Mount and debug......................4 6. Quick use steps......................6 7. Precautions for product use.................- 10 - 8.Frequently asked questions（FAQ）..............- 10 -... -
Page 4: Introudution
1. Introduction IML-D01 Millimeter Wave Radar for Vital Signs Monitoring is a very small and smart millimeter wave radar device which is independently researched and developed by Changsha Microbrain Intelligent Technology Com. Ltd. IML-D01 radar sensor could be applied to non-contacting measuring and monitoring of heart rate and respiration rate of a person including adults or children. -
Page 5: Product Features
2.Product Features Health care Type: Model: IML-D01 Dimensions: 72×72×19.7mm Weight: Less than 70g FIG1 IML-D01 Apperance - 2 -... -
Page 6: Product Parameters
3.Product parameters Product Performance Specification Technique Items Parameter Name Specification Frequency Band(GHz) 77~81 EIRP(dBm) Waveform and Modulation mode FMCW Frequency Frame rate(Hz) Power (W) Monitoring Range(m) 0.1~0.9 Range Resolution(cm) Chest Stable heart rate build Measuring monitoring 25.6 time（s） Parameter Stable respiration rate 12.8 build time（s）... -
Page 7: Delivery List
Figure 2 Photo of IML-D01 MMW Radar 5.Mount and Debug Follow the belowing instructions carefully before installing IML-D01 Radar to user’s specific applications: Orientation of the radar: The radar transceiver antenna is located at the heat sink of the base with the heat sink facing up and the gray radome facing outwards(the normal of the radome surface could be viewed as the illumination line) as shown in Figure 3. - Page 8 FIG. 3 Mounting demonstration of IML-D01 front detection Mounting demonstration of IML-D01 back detection Figure4 - 5 -...
-
Page 9: Quick Use Steps
The monitoring software which runs in host computer provided by Changsha Microbrain Intelligent Technology Co., Ltd. could obtain and analyze the raw data uploaded by IML-D01 sensor, and the monitoring figure and result could be directly displayed on the GUI of the software. The use of this tool is conducive to the use of IML-D01 sensor. - Page 10 Note: Please consult the sales staff of our company for the detailed usage of the relay. Step3: Start Testing Make sure that the IML-D01 radar serial port is correctly connected. Power on the 12V DC power adapter. Open the debug software of host computer software.
- Page 11 FIG. 5 Gui of the debug Software in the host computer FIG. 6 Demo run of the debug Software in the host computer - 8 -...
- Page 12 Do not try to disassemble or repair by yourself. Any problems encountered in the using, please contact to the customer service of Changsha MicroBrain Intelligent Technology Co., LTD. 8.Frequently asked question 1) The host computer cannot scan the radar WIFI hotspot after the radar is powered A: The WIFI hotspot is not list on the WIFI list of host computer.
- Page 13 it is recommended that the use keep strictly still at least 10-15 second. 3) The respiratory signal may be very subtle due to the body difference of different persons. 4) The heart rate veries fast. A: The heart rate may vary a lot during the test, which dues to the fact that the heart rate may change with the environmental noise, interference from other objects, respiratory harmonic frequency and other factors.
