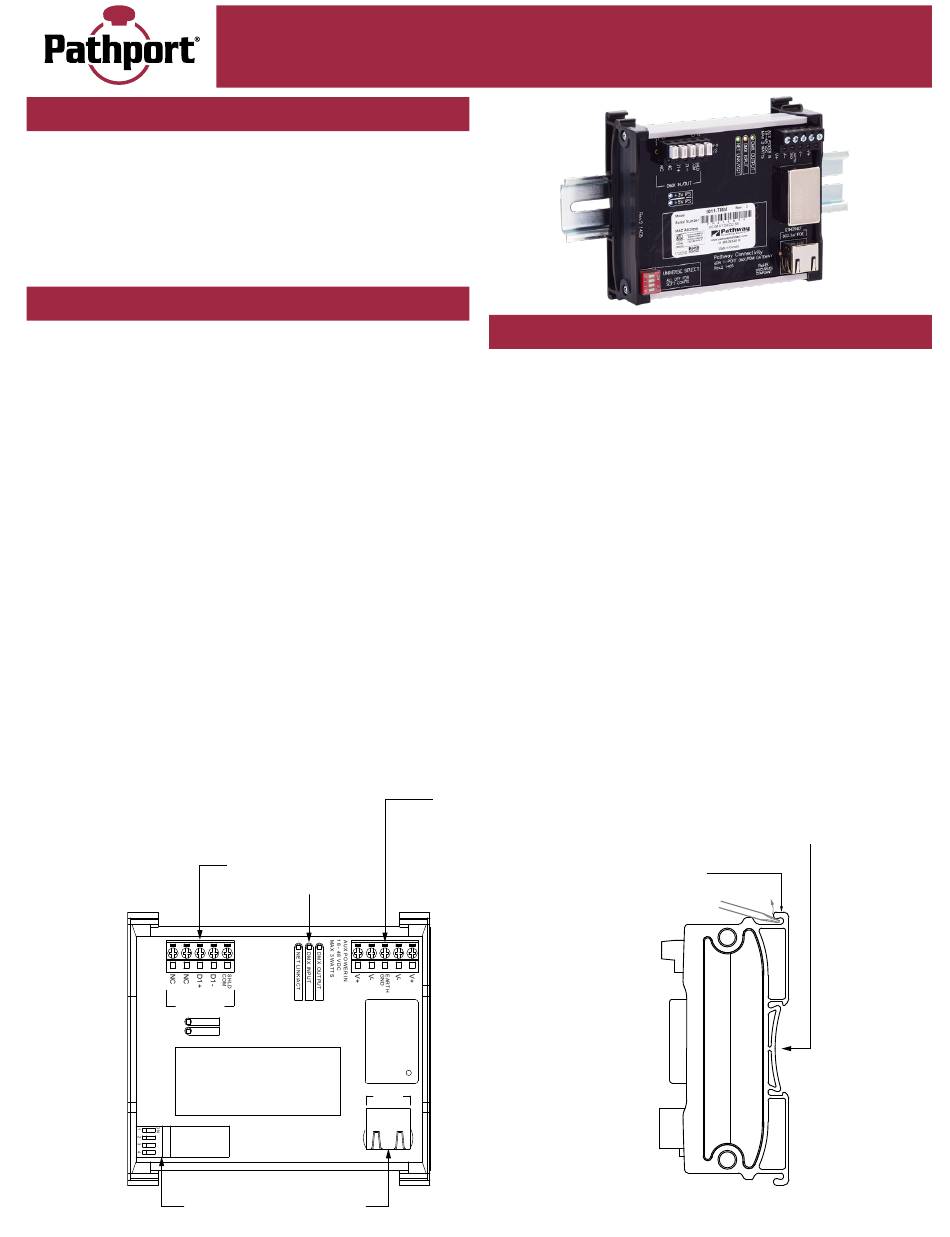

OVERVIEW

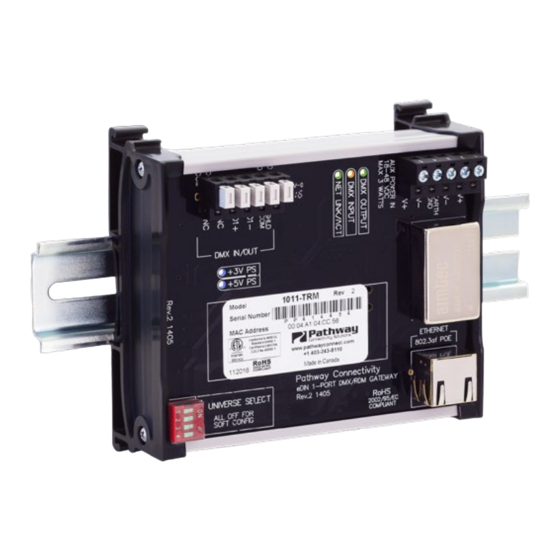

The Pathport® DIN-mount 1-Port Gateway (PWPP DIN P1)
provides the full functionality of other Pathport gateways
in a compact, DIN-rail mountable form factor.
System integrators can now easily put a fully customized
universe of DMX where it's needed.
Ideal for use in NEMA enclosures. Fully compatible with
DIN interfaces (PWINF).
CONNECTIONS
The Pathport PWPP DIN P1 features terminal strips that can
be removed from the card to facilitate easy wiring installation or
replacement. Make the following connections, WITH THE POWER
TURNED OFF.
POWER
The PWPP DIN P1 is designed to run on either Power-over-Ethernet
(PoE), or on an auxiliary power supply providing between 18 and 48
volts DC. The gateway is Class 1 PoE and will draw up to 4 Watts.
If an auxiliary supply is used, observe the correct polarity when
connecting V+ and V-. A second set of terminals are provided so
power may be daisy-chained to other cards. The earth ground
terminal can be connected to the enclosure's chassis or electrical
ground terminal to improve EMC compliance.
DMX512
DMX connections consist of a shield and data pair. Connect DATA+
and DATA- to D1+ and D1-. Observe the same polarity convention
throughout the system. Connect the cable shield or common to the
SHLD COM terminal.
NETWORK
All network wiring should follow standard Ethernet rules and be
installed by a qualified person. As part of the installation, all wiring
should be certified under the TIA/EIA-568 standard.
DMX IN/OUT
+3V PS
+5V PS
1
UNIVERSE SELECT
2
3 ALL OFF FOR
SOFT CONFIG
4
Universe
Select
Pathport DIN-Mount DMX/RDM Ethernet Gateway
PWPP DIN P1
DMX512 Input/Output
LED Indicators
ETHERNET
802.3af POE
Female RJ45
Ethernet Connector
STATUS INDICATORS
+3V PS Blue. Steady glow indicates 3V power supply is
OK. Off indicates no power.
+5V PS Blue. Steady glow indicates 5V power supply is
OK. Off indicates no power.
DMX INPUT
Amber. Steady glow indicates port latched to ac-
tive DMX source. Blinking indicates no incoming
DMX signal. Off indicates Port is Disabled.
DMX OUTPUT Green. Steady glow indicates port is transmit-
ting DMX. Blinking indicates no DMX output. Off
indicates Port is Disabled.
NETWORK Green. Flickering glow means active Ethernet
LINK/ACT network link. Off indicates no network link.
Power In (If PoE not in use):
18-48VDC, 4W Supply required.
Use PWPWR DIN TERM 100W 48VDC
or equal.
Connect Earth ground to to improve
EMC compliance
DIN rail release lever
Use large flat-head screwdriver or
similar tool to gently pry lever away
from DIN rail to release
Manual
Fastening mechanism designed
for 35 x 7.5mm DIN rail
03/08/22
