DUCTGARD
Duct Mounting Smoke
and Fire Control Dampers

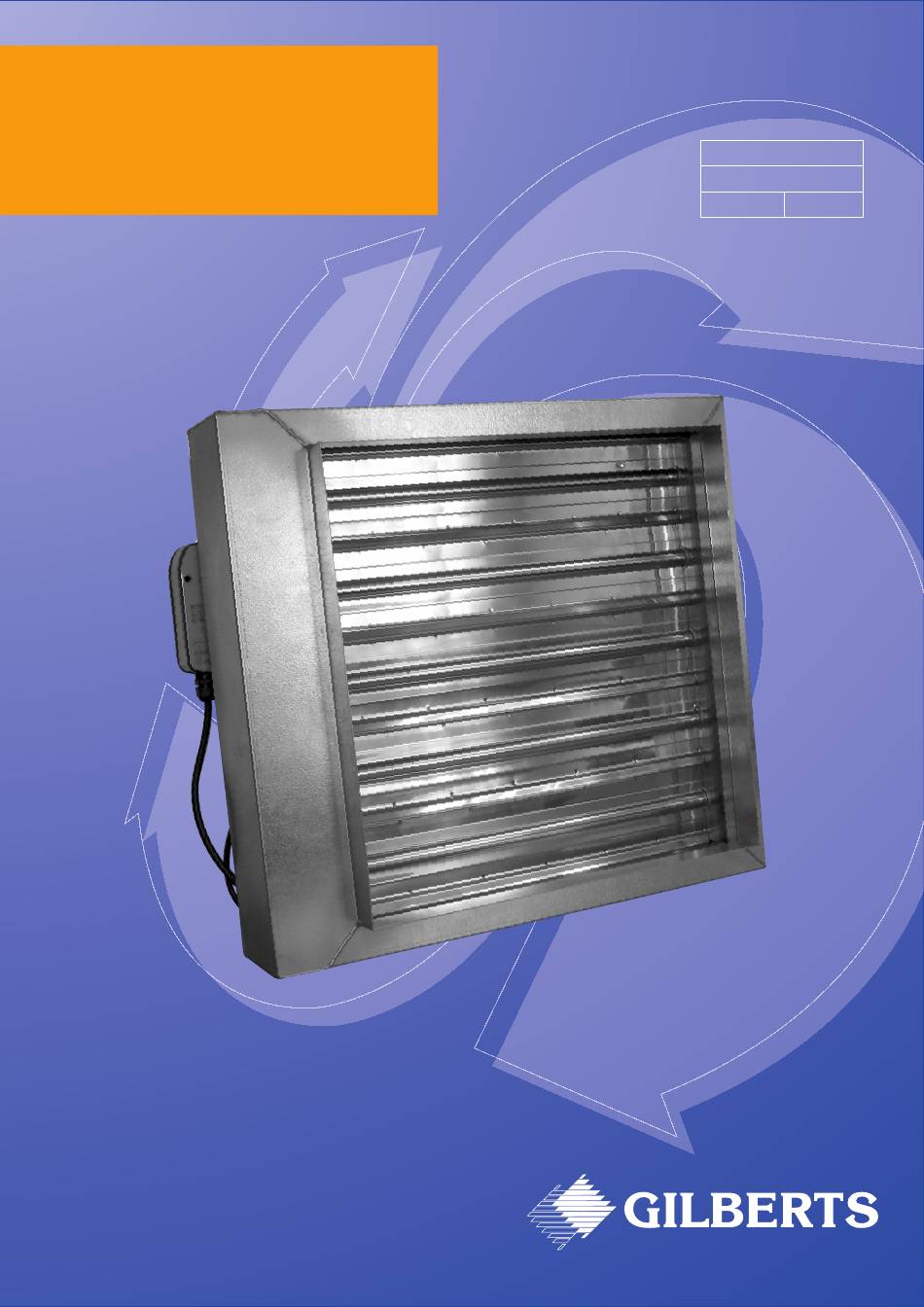

Features
- Stainless Steel interlocking blades and frame side seals
- Unique patented precision blade linkage mechanism
- 8 Different modes of operation
- Connections to suit most proprietary duct work
- Extensive range of external control facilities
SFB (57.9) X
UDC 697.9
Dampers 1
NOV 2012
Advertisement
Table of Contents
Related Manuals for GILBERTS DUCTGARD
Summary of Contents for GILBERTS DUCTGARD
- Page 1 DUCTGARD Duct Mounting Smoke SFB (57.9) X and Fire Control Dampers UDC 697.9 Dampers 1 NOV 2012 Features - Stainless Steel interlocking blades and frame side seals - Unique patented precision blade linkage mechanism - 8 Different modes of operation - Connections to suit most proprietary duct work...
- Page 2 I N T R O D U C T I O N Gilberts Ductgard presents an ‘engineered’ range of combined smoke and fire dampers suitable for use in all types of HVAC ductwork. Developed from our well proven door mounting...
-
Page 3: Control Mode Options
Control Mode Options Mode Description Page The Gilbert’s 2007 Ductgard presents a re-engineered range of Fully automatic electronic 24v DC opening with fail safe spring combined fire and smoke dampers closure via 72°C electro thermal link release suitable for use in HVAC ductwork Fully automatic electronic 240v AC opening with fail safe spring systems. - Page 4 DW142 Class C specification. Inter-Connecting Interlocking Blade Mechanism Operation All Ductgard units are The Stainless Steel driven using a unique, Blades featured on the patented, interconnecting Ductgard units, rack mechanism as incorporate a fishtail edge illustrated.
-
Page 5: Optional Features
Mode 5 Description Mode 5 is a fully automatic type of smoke and fire damper and operates on the basis of fail safe closure with automatic reset. It has been designed to close in smoke and fire conditions upon signal from a fire detection system or in the event of an electro thermal fusible link separating at a pre-determined temperature (72°C standard). - Page 6 DUCTGARD Duct Mounting Smoke and Fire Control Dampers Mode 9 Description Mode 9 is a fully automatic type of smoke and fire damper and operates on the basis of fail safe closure with automatic reset. It has been designed to close in smoke and fire conditions...
-
Page 7: Dimensional Data
Dimensional Data Dampers Only Dampers with Installation Frames Square and Rectangular Spigots . . .Ref S Smaller and intermediate sizes available List Width + 199 Dim 'A' List Width - 3 Units supplied with 40mm List Size Range Dim 'A' deep spigots for rivetting 200 - 1000 WIDE in 50mm Modes,9,10... - Page 8 DUCTGARD Duct Mounting Smoke and Fire Control Dampers Dimensional Dampers Only Dampers with Installation Frames Data spigots and 432 high casing Oval Spigots ....Ref O...
-
Page 9: Installation
HEVAC Installation Frame HVC 6/5/85 frame upstand flanges unless approval has been previously Installation obtained from the appropriate authority). The installation frame is designed to be factory assembled Where two fire dampers, or two double module assemblies Frames on to a fire damper. This frame will under fire conditions are mounted in series to form a factory assembled four hour allow the damper to expand without distortion. - Page 10 DUCTGARD Duct Mounting Smoke and Fire Control Dampers The wiring data below provides all the information necessary to effect correct connection of all Ductgard units in their various Wiring Data modes and control options as well as instructions for including extra feature options. Removal of the lid on the damper Modes 5/6 control box provides access to an internal terminal block for the following wiring connections.
-
Page 11: Wiring Diagram
Mode 9 and 10 Ductgards in this option are normally controlled, by a remote switch on the Motor Supply. Modes 9/10 Note: To interface with Gilberts remote indicators it is easier to switch the negative rather than the positive. Control Option A... -
Page 12: Central Controller
DUCTGARD Duct Mounting Smoke and Fire Control Dampers Gilberts offer a wide choice of hard wired and multiplex controlled systems to meet the challenge of effective fire and Control smoke control monitoring. Systems Available as stand alone, or suitable for interfacing or incorporating with building management or fire/smoke control systems designs, the range includes four simple off the shelf packages through to bespoke designs to satisfy the most demanding criteria. - Page 13 Gilberts range of ancillary Items have been designed for use in conjunction with both the Ductgard and Smokegard models. Ancillary Purpose built for straightforward connection and compatibility they offer a number of useful services. Items Remote Indicators/Master Monitors FROM DUCTGARD...
- Page 14 DUCTGARD Duct Mounting Smoke and Fire Control Dampers Standard Time - Temperature Curve Of BS476 Part 20 1987 Test Data Fire Tests 1200 All fire tests were conducted by the Warrington 1100 Research Centre to BS476 Part 20 1987. 1000 This standard describes the performance of structural elements under fire conditions.
- Page 15 In the event of operational difficulties please Shooting contact our Head Office for on-line guidance and advice. Telephone: (01253) 766911 Ductgard units carry a full 1 year warranty from the date of delivery for all parts and labour. Gilberts Damper, Smoke and...
- Page 16 Web: www.gilbertsblackpool.com Gilberts (Blackpool) Ltd reserve the right to alter the specification without notice. The information contained in this leaflet is correct at time of going to press © 2012. For our latest product data please visit www.gilbertsblackpool.com.
