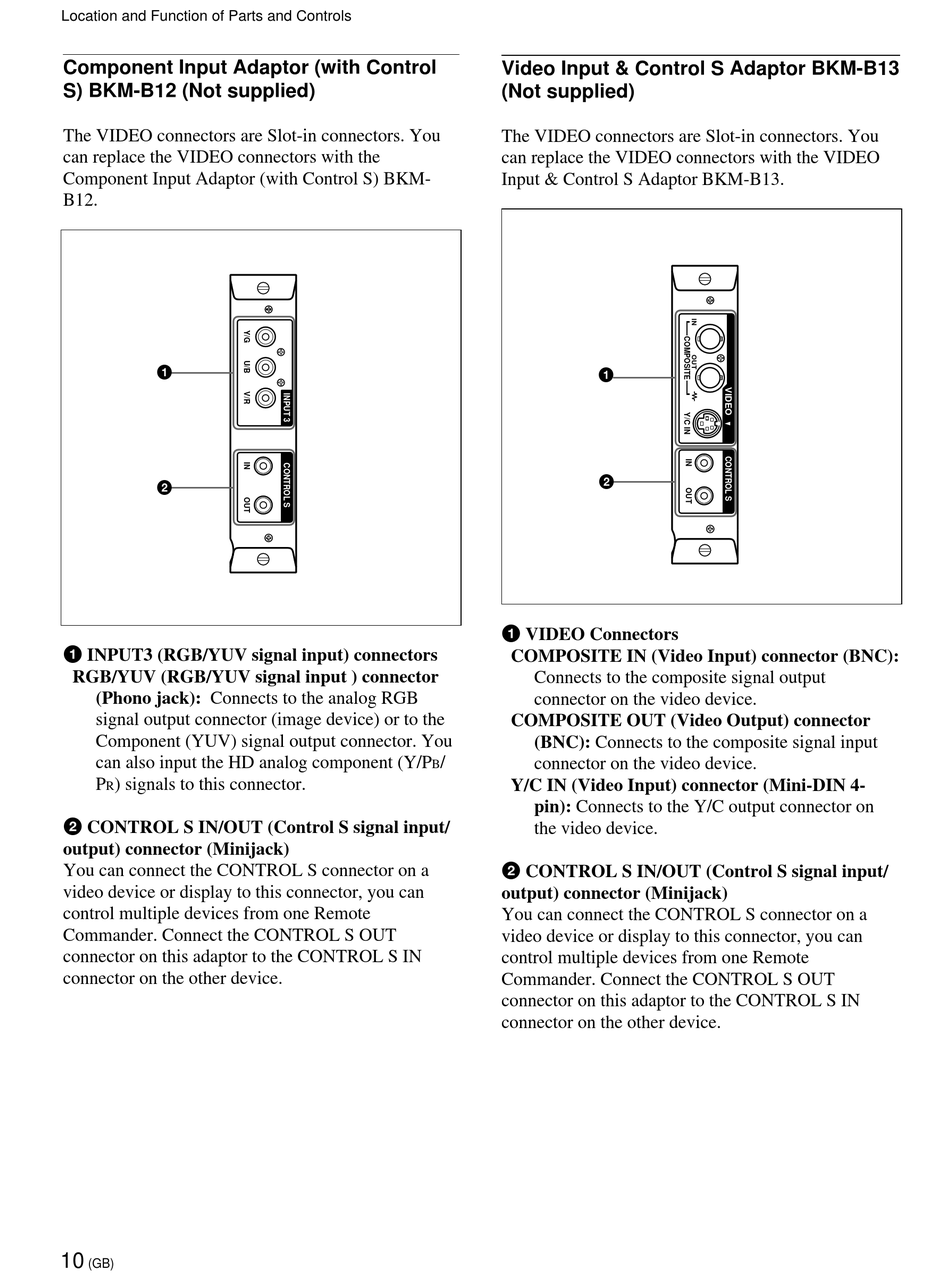

Location and Function of Parts and Controls
Component Input Adaptor (with Control
S) BKM-B12 (Not supplied)
The VIDEO connectors are Slot-in connectors. You
can replace the VIDEO connectors with the
Component Input Adaptor (with Control S) BKM-
B12.
1
2
1 INPUT3 (RGB/YUV signal input) connectors
RGB/YUV (RGB/YUV signal input ) connector
(Phono jack): Connects to the analog RGB
signal output connector (image device) or to the
Component (YUV) signal output connector. You
can also input the HD analog component (Y/P
P ) signals to this connector.
R
2 CONTROL S IN/OUT (Control S signal input/
output) connector (Minijack)
You can connect the CONTROL S connector on a
video device or display to this connector, you can
control multiple devices from one Remote
Commander. Connect the CONTROL S OUT
connector on this adaptor to the CONTROL S IN
connector on the other device.
10
(GB)
Video Input & Control S Adaptor BKM-B13
(Not supplied)
The VIDEO connectors are Slot-in connectors. You
can replace the VIDEO connectors with the VIDEO
Input & Control S Adaptor BKM-B13.
1
2
1 VIDEO Connectors
COMPOSITE IN (Video Input) connector (BNC):
Connects to the composite signal output
connector on the video device.
COMPOSITE OUT (Video Output) connector
(BNC): Connects to the composite signal input
/
connector on the video device.
B
Y/C IN (Video Input) connector (Mini-DIN 4-
pin): Connects to the Y/C output connector on
the video device.
2 CONTROL S IN/OUT (Control S signal input/
output) connector (Minijack)
You can connect the CONTROL S connector on a
video device or display to this connector, you can
control multiple devices from one Remote
Commander. Connect the CONTROL S OUT
connector on this adaptor to the CONTROL S IN
connector on the other device.
