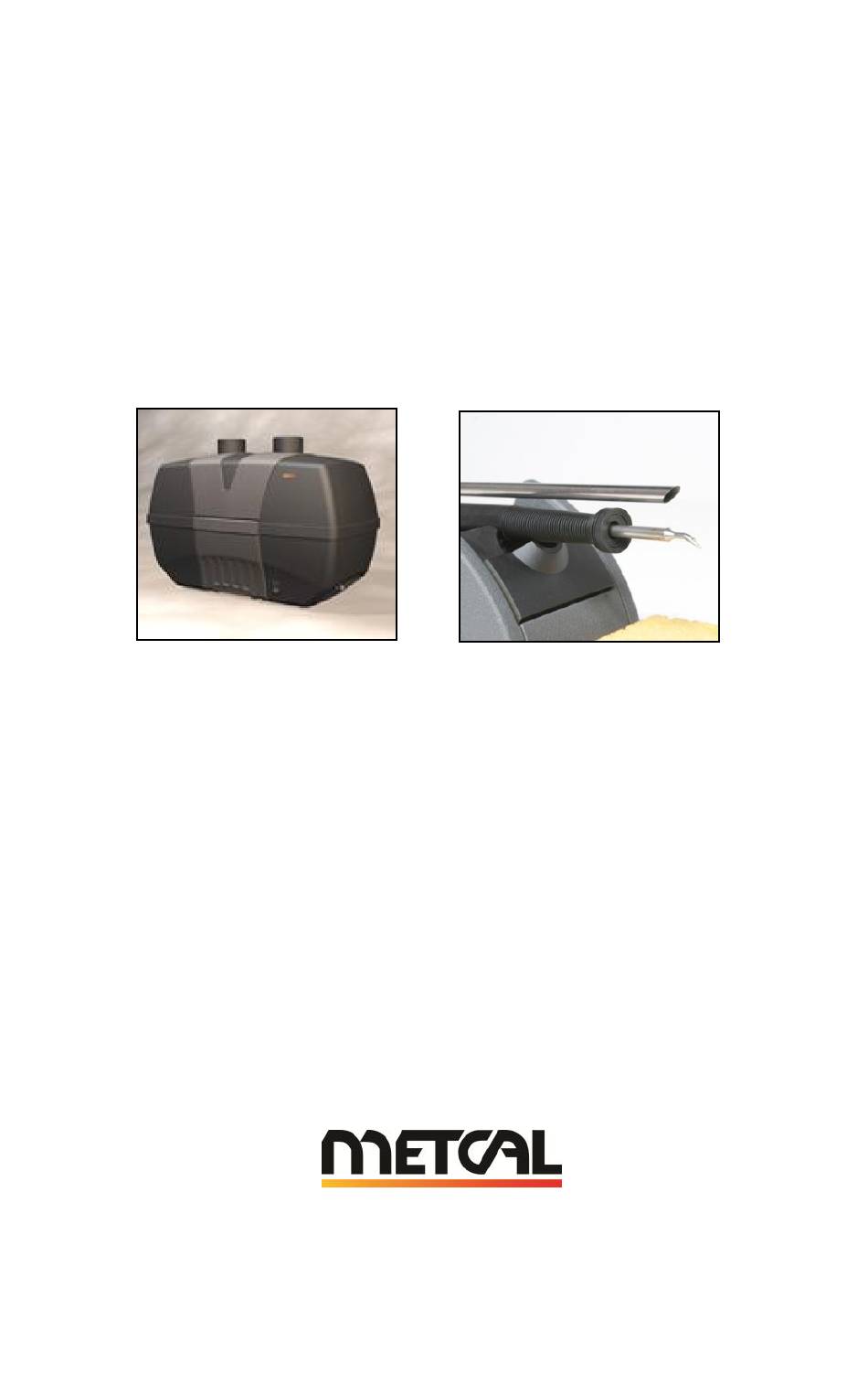

BTX-208
Fume Extraction System
System User Guide ............................... 2
Manuel d'utilisation du système ............ 6
Bedienungsanleitung .......................... 11
Guida utente del sistema .................... 16
Guía para el usuario del sistema ........ 21
www.metcal.com
7100-0077_B
Advertisement
Table of Contents
Related Manuals for Metcal BTX-208
Summary of Contents for Metcal BTX-208
- Page 1 BTX-208 Fume Extraction System System User Guide ....... 2 Manuel d'utilisation du système .... 6 Bedienungsanleitung ......11 Guida utente del sistema ....16 Guía para el usuario del sistema ..21 www.metcal.com 7100-0077_B...
- Page 2 Use only filters recommended or supplied by OK International. The BTX-208 is designed for the removal of fumes and gases only. Consult your company’s Safety Department when using this equipment for filtering of flammable gases. This equipment is not explosion safe and can only be used for the extraction of vapors that have a concentration level well below the lower explosive limit.
- Page 3 Items Supplied 1 Filter Unit with filters installed 1 32mm hose adapter 1 air inlet cover installed on second air inlet port 1 Power Cord 1 Operating Manual Description (1) ON/OFF switch (2) power connection (3) 32mm hose adapter (4) air bypass valve (5) latch (front and back) Installation ...
- Page 4 Replacement of filters: If, after cleaning of accessories, the fumes are not extracted efficiently, replace filter(s) inside filter unit. Initially replace the pre-filter only. If this step does not sufficiently improve the airflow, then replace the main filter (HEPA/Carbon). Turn unit off. Disconnect the power cord.
- Page 5 For Iron Adapter Kits contact your OK International Sales Representative. Warranty OK International warrants the BTX-208 system against any defects in materials or workmanship for one (1) year from the date of purchase by the original owner. This warranty excludes normal maintenance and shall not apply to any opened, misused, abused, altered or damaged items.
