Summary of Contents for Wen 3400

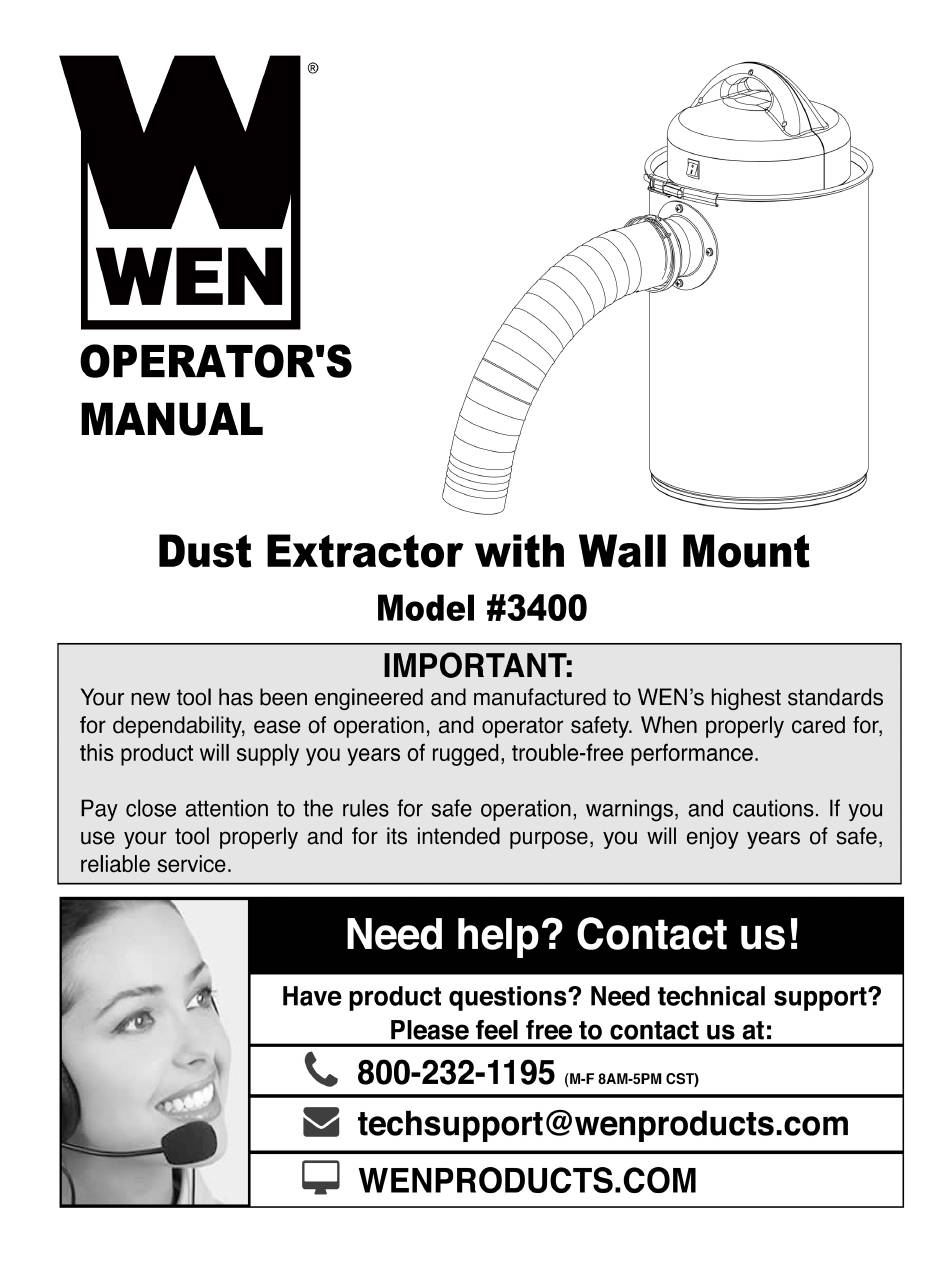

- Page 1 1 ...

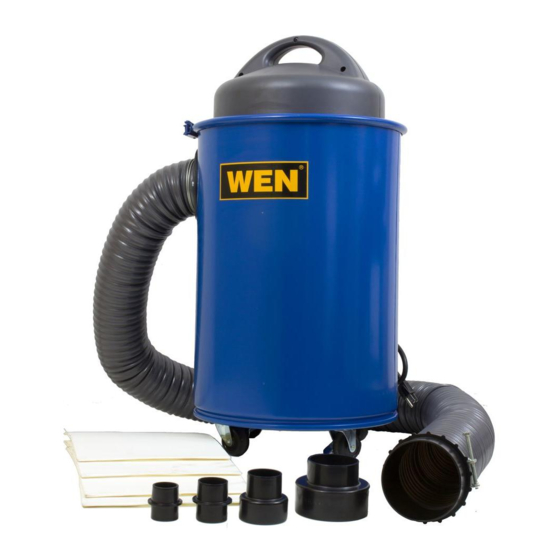

- Page 2 Description ® The WEN Dust Extractor is a powerful yet compact dust collection system. The dust extractor is portable with a 4" diameter collection hose and an adapter set that allows connection to several other dust exhaust port sizes. Includes a filter cartridge and five filter bags with an efficiency rating of 0.5 microns.
-
Page 3: General Safety Information
General Safety Information Warning: For your own safety, read all of the instructions and precautions before operating tool. Caution: Always follow proper operating procedures as defined in this manual — even if you are familiar with use of this or similar tools. Remember that being careless for even a fraction of a second can result in severe personal injury. -
Page 4: Electrical Information
Tool Should Be Maintained 1. Always unplug tool prior to inspection. 2. Consult manual for specific maintenance and adjustment procedures. 3. Keep tool lubricated and clean for safest operation. 4. Remove adjusting tools. Form habits of checking to see that adjusting tools are removed before switching the machine on. -
Page 5: Guidelines For Using Extension Cords
CHECK with a licensed electrician or service personnel if you do not completely understand the grounding instructions or whether the tool is properly grounded. USE ONLY THREE-WIRE EXTENSION CORDS that have three-pronged plugs and outlets that accept the tool's plug as shown in Fig. - Page 6 Assembly Refer to Exploded View, Page 9. Install Casters 1. Thread M10 hex nut and flat washer (Item 29 and 33) onto the threaded stud of one of the casters (Item 31 and 32). 2. Insert threaded stud of caster into hole on the outside bottom of the tank (Item 28) and secure in position with M10 flat washer, lock washer and hex nut (Item 29, 30 and 33) inside tank.
-
Page 7: Operation
Operation Refer to Exploded View, page 9. 1. Position dust extractor on a flat level surface near the dust-producing machine. 2. Connect inlet hose (Item 20) to dust producing machine using hose coupling (Item 21). Use adaptors (Item 27) if needed. 3. -
Page 8: Troubleshooting Chart
Troubleshooting Chart Symptom Possible Cause(s) Corrective Action Motor will not run. Defective plug, cord, switch or Check wiring, replace motor defective parts Blown fuse or circuit breaker Check fuse or breaker, replace Excessive dust in air. Leaking bag or hose connection Check filter bag connection. -
Page 9: Exploded View
Exploded View 9 ... -
Page 10: Parts List
Parts List Item Stock # Description Item Stock # Description 3400-001 Right Cover 3400-021 Hose Coupling 3400-002 Pan Head Screw 3400-022 Tap Screw 3400-003 Pan Head Screw 3400-023 Gasket 3400-004 3400-024 Filter Bag 3400-005 Left Cover 3400-025 Flat Washer 3400-006... -
Page 11: Limited One Year Warranty
GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of one (1) year from date of purchase. Ninety days for all WEN products, if the tool is used for professional use.
