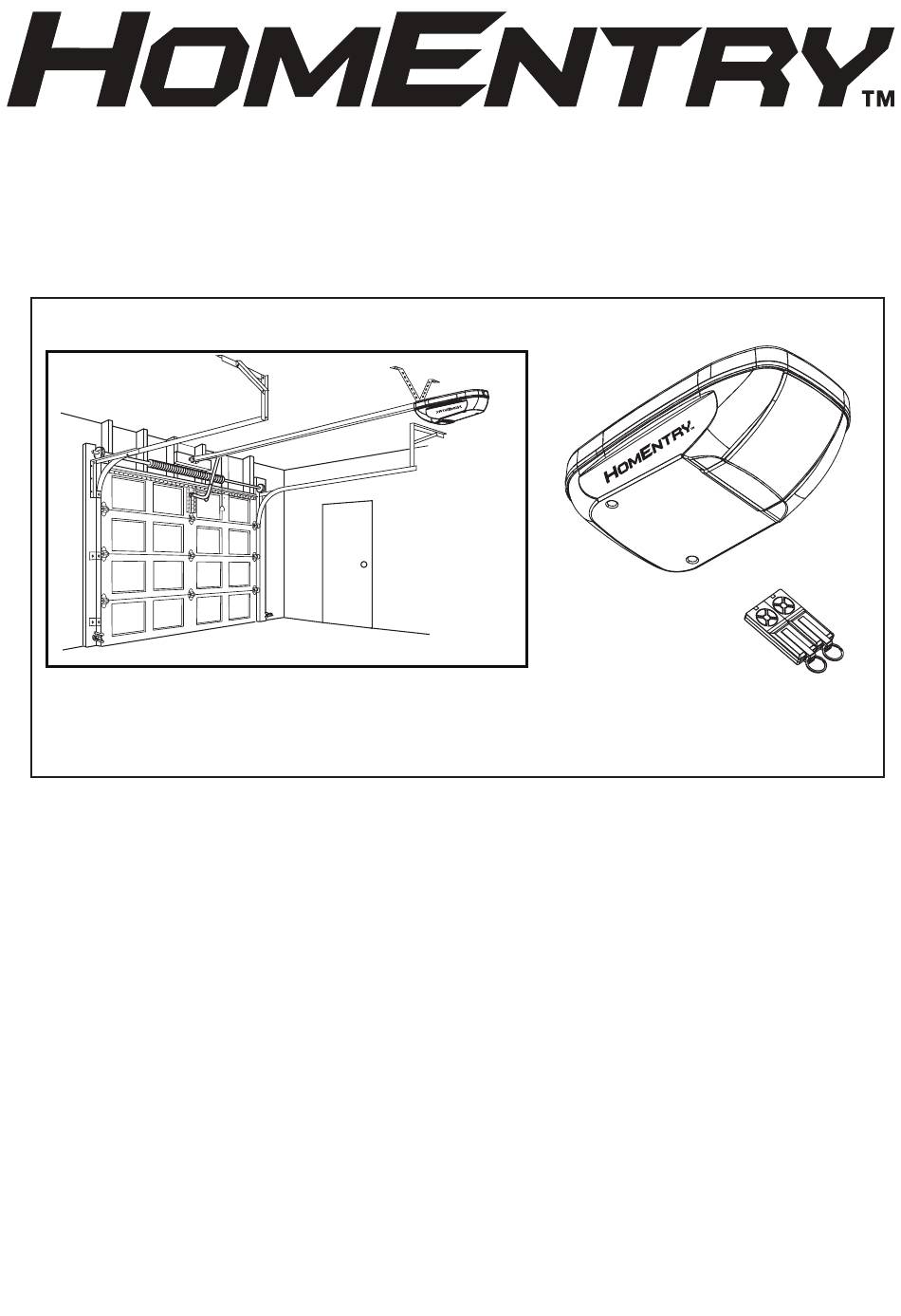

- Page 1 HESD01 Sectional Garage Door Opener Installation and Operating Instructions This manual includes IMPORTANT SAFETY information. DO NOT PERFORM THE INSTALLATION BEFORE READING THE GUIDE THOROUGHLY...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS WARNING Failure to comply with the following instructions may result in serious injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict •... -
Page 3: Before You Begin
INTRODUCTION BEFORE YOU BEGIN: Look at the wall and ceiling above the garage door. (The opener and header bracket must be securely fastened to structural supports). Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware (not supplied) may be required. -
Page 4: Carton Inventory
INTRODUCTION CARTON INVENTORY Your garage door opener and rail are packed in a single carton. Opener / powerhead Hardware bag HE952 hand held trsansmitter (2) Rail assembly (chain) Curved door arm 10. Manual Hanging bracket (2) 11. Warning labels Rail bracket (2) 12. -
Page 5: Tools Required
INTRODUCTION TOOLS REQUIRED Drill Bits HARDWARE PROVIDED Clevis pin 80 mm (Section 13) R clip (Section 13) Hexagonal head screw (Sections 15 & 17) Nut M8 (Sections 15 & 17) 1 (1x) 2 (1x) 3 (4x) 4 (4x) 5 (4x) Flat washer M8 (Sections 15 &... -
Page 6: Control Panel
INTRODUCTION COMPLETED INSTALLATION Terminal Block: used for external accessories (see chart below). FUNCTION POLARITY COMMENT Push button Dry contact input for push button wired wall controls Common Common terminal for push button and obstruction detecton beams Coomon Common terminal for push button and obstruction detecton beams IR Sensor Obstruction detection beams input (pulsing type only) S Button: used to “SAVE”... -
Page 7: Assembly
ASSEMBLY SECTION ASSEMBLING THE 4 PIECE SEGMENTED RAIL The segmented rail is largely preassembled and consists of 4 parts. The carriage, push rod, release handle, the guide pulley and the lintel bracket with chain tensioner are in the front part (A). The seating for the drive shaft and the sprocket are in the rear part (B). -
Page 8: Installation
INSTALLATION Wear protective goggles when working overhead to protect your eyes from injury. Disengage all existing garage door locks to avoid damage to the garage door. To avoid serious personal injury from entanglement, remove all ropes connected to the garage door before installing the opener. - Page 9 INSTALLATION POSITION THE OPENER Disengage the trolley mechanism (see section “Operating the manual release”) and slide it back towards the powerhead. Secure the hanging push arm up into the rail assembly temporarily using tape or rope, to avoid a hazard. SECTIONAL DOOR You will need a 50 mm piece of timber or similar spacer to gauge the distance between door and rail.
- Page 10 INSTALLATION HANG THE OPENER fig.1 The opener must be securely fastened to a sound structural support above the opener. Postion the opener as in the previous step. Check the rail is centred over the door. Ensure the rail brackets (fig.1) is on the Powerhead end of the rail in a position as close to the opener as possible (X).
-
Page 11: Operate Manual Release
INSTALLATION ATTACH DOOR ARM TO TROLLEY Fig. 1 Make sure the garage door is fully closed. Pull the manual release cord to disengage the trolley. Slide the trolley to around 300 mm from the lintel bracket. The straight door arm is already preassembled to the trolley. - Page 12 ADJUSTMENT SECTION Connect Electric Power TO AVOID INSTALLATION DIFFICULTIES, DO NOT RUN THE GARAGE DOOR OPENER UNTIL INSTRUCTED TO DO SO. Connect to properly fused and earthed power outlet. Ensure all ropes and installation tools have been removed from the door. When the opener is switched ON, the operator light flashes a number of times and then remains ON.
- Page 13 ADJUSTMENT SECTION TEST THE SAFETY REVERSE SYSTEM The safety reverse system test is important. Garage door must reverse on contact with a 40 mm obstacle laid flat on the floor. Failure to properly adjust opener may result in serious personal injury from a closing garage door.
-
Page 14: Adjustment
Protector System™ (IR Beams) no higher over 400 N (40 kgf). than 100 mm above the floor. SPECIAL NOTE: HomEntry strongly recommends that the Disconnect power to the garage door obstruction detection beam be installed on all garage door opener before installing The Protector openers. -
Page 15: Install Warning Labelss
ATTENTION - Risque d’écrasement Vérifier régulièrement, et eégler si nécessaire, pour s’assurer que la porte inverse son mouvement lorsqu’elle rencontre un objet de 50 mm de haut placé sur le sol. homentry.com.au homentry.co.nz For Service Call RISK OF ENTRAPMENT Installation Date Repeat Safety Reverse Test monthly. -
Page 16: Wireless Programming
WIRELESS PROGRAMMING WIRELESS PROGRAMMING (OPTIONA ACCESSORIES) Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave garage while door is in motion. Do not allow children to operate push button(s) or remote(s). -
Page 17: Using Your Opener
MAINTAINENCE AND CARE OF YOUR OPENER REPLACE BATTERIES IN TRANSMITTERS USING YOUR OPENER Battery of the transmitter: Your opener can be activated by any of the following devices: The batteries in the transmitter have an extremely long life. If the Opener control panel: Up and Down Buttons and Green •... -
Page 18: Specifications
SPECIFICATIONS SPECIFICATIONS - HOMENTRY - HESD01 Input Voltage........ -
Page 19: Troubleshooting
TROUBLE SHOOTING TROUBLE SHOOTING Door opens but won't close: Opener doesn't operate from either door control or Check The Protector System™ (IR Beams) (if you have • transmitter: installed this accessory). If the light on The Protector System™ (IR Beams) are flashing, correct the alignment. Does the opener have electric power? Plug lamp into outlet. -
Page 20: Warranty
HomeEntry HESD01 or return the Unit to you. This HomEntry Warranty does not cover any failure of, or defect HomEntry are committed to manufacturing and supplying high quality goods.
