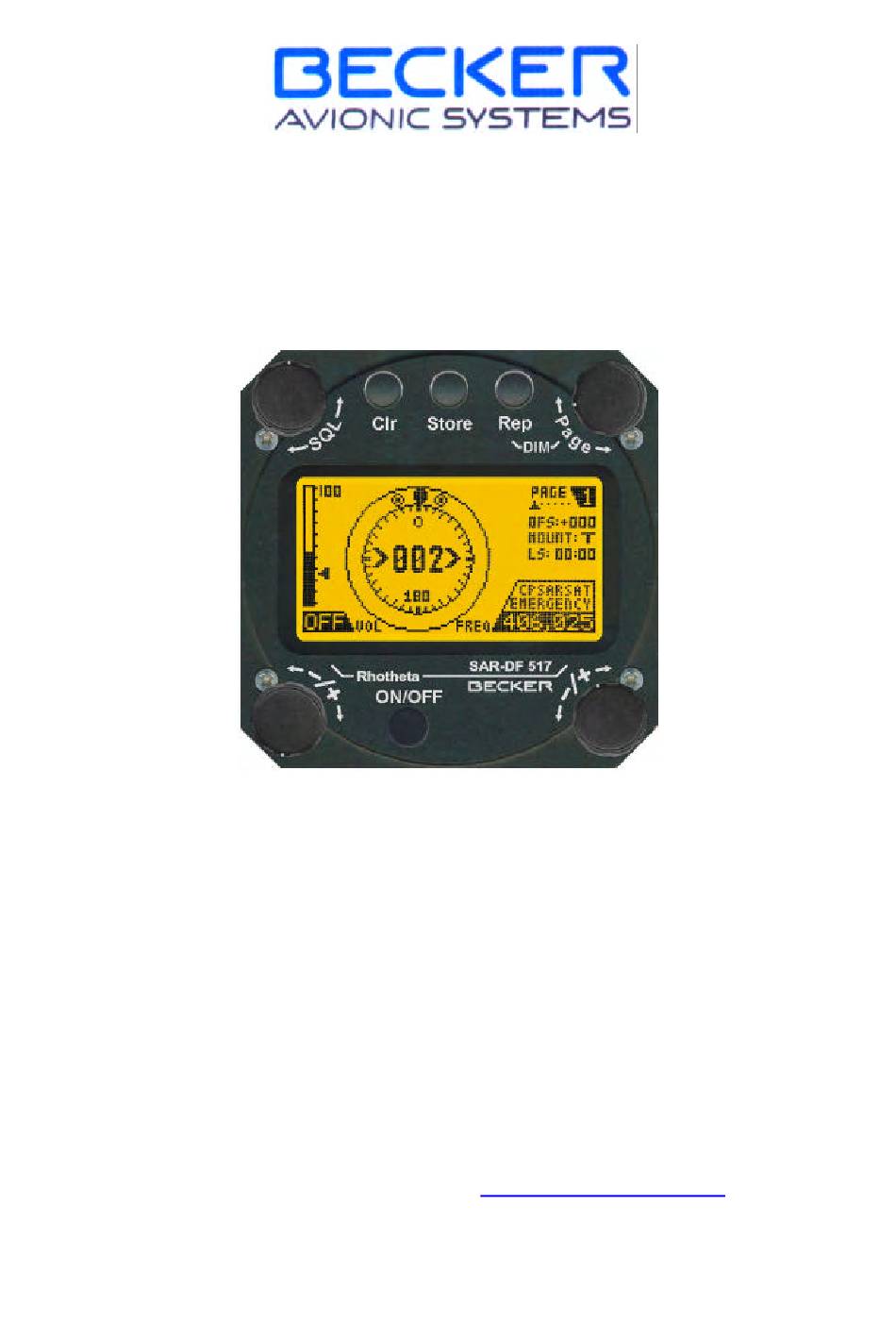

- Page 1 SAR-DF 517 4-Band Precision Direction Finder Installation and Operation Manual DV 77513.03 Issue 4 September 2006 Becker Flugfunkwerk GmbH · Baden Airpark ·Gebäude B 108 77836 Rheinmünster · Telephone 07229 / 305-0 E-Mail : info@becker-avionics.de or support@becker-avionics.de...
- Page 2 List of effective pages Page No. : Date. : Page No. : Date. : Titlepage 09/2006 ISO 9001 I-1 I-4 09/2006 1-1 1-10 09/2006 2-1 2-12 09/2006 3-1 3-10 09/2006 DV 77513.03 Article-Number: 0551.295-071 © 2001 by Becker Flugfunkwerk GmbH All rights reserved...
- Page 3 ISO 9001 Certified Quality System Das Becker- Qualitätsmanagementsystem ist zertifiziert nach: The Becker quality management system is certified according to: DIN EN ISO 9001 CERT Reg. - Nr. 12 100 20988 Zulassungen und Genehmigungen: Licenses and Approvals: BWB-1921Y-B07/04/01 Zulassung als Luftfahrtbetrieb für Luftfahrtgerät der Bundeswehr Manufactures license for aviation equipment to the German armed forces DE.21G.0075...
-
Page 4: Table Of Contents
SAR-DF 517 Table of Contents Section General Information Page Introduction Purpose Technical data 1.3.1 Electrical data 1.3.2. Interface 1.3.3 Environmental data 1.3.4 Mechanical data and weight Frequencies of channels on maritime band Scope of delivery Accessories Manuals Fig. 1-1 4-Band precision direction finder system... - Page 5 SAR-DF 517 2.6.1 Electrical interference 2-10 Fig. 2-1 Dimensions drawing of the display unit Fig. 2-2 Mounting drawing of the display unit Fig. 2-3 Mounting drawig of the antenna Fig. 2-4 Dimensions drawing of the antenna Fig. 2-5 Montage direction of the antenna unit Fig.
- Page 6 SAR-DF 517 Fig. 3-6 Display page 3 (Bearing Display as Text) Fig. 3-7 Display Cospas/Sarsat analyse (page4) Fig. 3-8 Display edit menu (page 5) Fig. 3-9 Menu of adjustable frequencies (page 6) DV 77513.03 Issue 4 09/2006 Page I-3...
- Page 7 SAR-DF 517 Blank DV 77513.03 Issue 4 09/2006 Page I-6...
-
Page 8: Introduction
Circuit Diagrams 1.2. Purpose The SAR-DF 517 product is a general direction finder, developed for professional SAR (search and rescue) purposes. This Direction Finder (DF) is a multiband type (118MHz…410MHz) working with the physical Doppler-Effect. It offers the possibility to bear and analyse traditional emergency frequencies in the UHF and VHF band and the maritime radio band .The Cospas/Sarsat emergency signal is bearable,... - Page 9 SAR-DF 517 The Display Control Unit (DCU) is the indicating and controlling instrument of all functions of the direction finder. It can be seen as an interface between the direction finder and the operator. The Antenna Unit (AU) contains the direction finder, prober, the “heart” of the whole system, comprising four modules.
-
Page 10: Technical Data
SAR-DF 517 1.3. Technical data 1.3.1. Electrical data Method of bearing Doppler-principle (3kHz rotational frequency, right / left rotation) Bearing accuracy (1) ± 5° Internal resolution 1° Sensitivity RF-Voltage at Receiver Input (50Ohms) VHF<100nV; SeaBand<100nV; UHF<100nV; 406MHz<150nV Frequency stability ± 2.0 ppm (∆ f/f = ± 2 10 [at temperature range - 20 °C…+ 60 °C]... - Page 11 SAR-DF 517 Cospas/Sarsat analysis: Reception and analysis/decoding of Cospas/Sarsat data signal (112 resp. 144 bit, 400 baud, biphase L-phase modulated, error test / specified according to Cospas/Sarsat C/S T.001 October 1999) Bearable kinds of modulation: A3E, F3E, A2X (ELT-modulation); bearing largely independent of modulation.
-
Page 12: Interface
Impedance of input > 50 kΩ night status line Low-active. At input voltage < 2,5V the dimming operates in night mode. Max. of brightness ca. 2% of day/default mode only at SAR-DF 517 N Pin 6 with NVG frontpanel, Impedance of input > 50 kΩ... -
Page 13: Environmental Data
SAR-DF 517 1.3.3. Environmental data Display: operating temperature (3): - 20 °C ... + 60 °C storage temperature: - 30 °C ... + 80 °C Temperature Range Antenna operating temperature (3): - 40 °C ... + 60 °C storage temperature: - 55 °C ... -
Page 14: Frequencies Of Channels On Maritime Band
SAR-DF 517 1.4. Frequencies of channels on maritime band Frequency-range at SAR-DF 517 a maritime band: 156.000MHz ... 157.975MHz Channel No.: Frequency- Frequenc-y (coast - Station) (sea - station) 156.050 MHz 160.650 MHz 156.100 MHz 160.700 MHz 156.150 MHz 160.750 MHz 156.200 MHz... - Page 15 SAR-DF 517 Channel No.: Frequency- Frequenc-y (coast - Station) (sea - station) 156.275 MHz 160.875 MHz 156.325 MHz 160.925 MHz 156.375 MHz 156.425 MHz 156.475 MHz 156.525 MHz 156.575 MHz 156.625 MHz 156.675 MHz 156.725 MHz 156.775 MHz 156.825 MHz 156.875 MHz...
-
Page 16: Scope Of Delivery
SAR-DF 517 1.5. Scope of delivery Display Control Unit DCU 537 Article-No.: 0531.324-924 Antenna Direction Finder SAR-DF 517 Article-No.: 0531.316-924 (with Receiver and DF-Controller) 1.6. Accessories Connector set for cable (antenna ß-à display unit) and power supply Connector Kit Article-No.: 0542.571-954... - Page 17 SAR-DF 517 Blank Page DV 77513.03 Issue 4 09/2006 1-10...
-
Page 18: General
SAR-DF 517 Section Installation General The installation of the display unit and antenna unit depends on the type of aircraft and equipment and therefore only general information can be given in this section. 2.1.1. Inspection before installation Place the packed unit on a clean, flat surface. Open the reusable package, carefully remove the units and check for completeness. - Page 19 SAR-DF 517 43.3 mm 28 mm 21.1 mm 79.5 mm 1.1 inch 1.7 inch 0.83 inch 3.13 inch 25 mm 0.98 inch 41.3 mm 1.63 inch 82 mm 68.9 mm 3.23 inch 2.71 inch Fig 2-1 Dimension drawing of the display unit...
-
Page 20: Mechanical Installation Antenna Unit
SAR-DF 517 Mechanical installation antenna unit The antenna unit is designed for external installation in an aircraft. The necessary dimensional details are given in fig 2-3 and Fig. 2-4. A convenient position of the monopole bearing antenna is decisive for good bearing results. The antenna needs an effective ground connection to the body of the helicopter or to the roof of the vehicle. - Page 21 SAR-DF 517 270 mm / 10.63 inch 270 mm / 10.63 inch 270 mm / 10.63 inch 157 mm / 6.18 inch 157 mm / 6.18 inch 157 mm / 6.18 inch Fig 2-4 Dimension drawing of the antenna Page 2-4...
-
Page 22: Information For The Installation Of The Antenna Unit
SAR-DF 517 Information for the installation of the antenna Unit (à à Nß ß ) At installation of the antenna Unit the sticker on aligns the corresponding drill hole into the longitudinal axis of the aircraft and in. The direction of flight is (see illustration 2-5). -
Page 23: Installation Wiring
SAR-DF 517 Installation wiring 2.5.1. General The Fig. 2-6 shows the Interwiring Diagram Only suitable aircraft cable should be used. Use AWG 22 or AWG 24 for all wiring. In addition, the following should be observed: Pull rubber sleeves over the soldered connections on unit connectors. - Page 24 SAR-DF 517 Fig. 2-6 Interwiring diagram 6-pol. Amphenol plug, female PTG06SE10-6S(SQ) Max. length of cable ca. 30m (GND connected to cable-shield) 9-pol. Sub-D plug (female/male) DV 77513.03 Issue 4 09/2006 Page 2-7...
-
Page 25: Panel Lighting
For this test the following Measurement equipment is necessary: Direction Finder System SAR-DF 517 consisting of AU (Antenna Unit), DCU (Display Control Unit) and wiring. SAR-DF 517 Antenna Measurement Device Article-No.: 0591.645-914. Signal Generator (100 .. 500 MHz / Output Level, FM, AM adjustable) or a PLB. Attention: When testing at the aircraft, all other electronic equipment (also engines) should be switched off to avoid spurious measurement results from local interference. - Page 26 SAR-DF 517 a. The Antenna Measurement Device fastening to the antenna unit and align with the marking (see illustration). b. Connect the test equipment at the signal generator. Set an output frequency of 121.500 MHz, Level 50 dB AM Off FM Off or use a test PLB on test frequency using a 20 dB attenuation.
- Page 27 SAR-DF 517 d. Turning the test equipment to position 45°; the display should indicate 90°. Repeat measurements at the bearings listed in the following table. Bearing (inside ±15° Limit) Bearing: 0 ° Pos. 345°…015° Bearing: 45 ° Pos. 30°…60° Bearing: 90 °...
- Page 28 SAR-DF 517 Proceed with suppression work as described in a) above until no further interference is detected. Static inverters, choppers, DC converters : For interference suppression inserting a filter into the positive power supply lead close to the item concerned is suggested, in order to isolate the harmonics of the chopper frequency from the aircraft wiring system.
- Page 29 SAR-DF 517 Blank Page 2-12 DV 77513.03 Issue 4 09/2006...
- Page 30 SAR-DF 517 Section Operation 3.1. Important basic adjustments In order to achieve best use of the direction finder, the user is able to perform several adjustments of configuration. These adjustments can be set up in the edit-menu (display: page 5).
- Page 31 SAR-DF 517 >ON/OFF< Pushbutton to switch the device on/off. 2 >Page / Select Mode< rotary switch for selection of the operating mode after power-on. 3 >Mode< Indication of the actual operating mode. - Emergency: Selection of the international emergency frequencies.
- Page 32 SAR-DF 517 External (remote) dimming: When a voltage >1V DC at the dimming input exists, the brightness is controlled externally, but remains additionally adjustable on the display unit. (See plan interwiring and operating/edit- menu). 2 >PAGE< Rotary switch to select the displayed active page and its corresponding operating mode.
- Page 33 SAR-DF 517 >VOLUME< Rotary switch for the AF-audio exit. A linked external speaker resp. amplifier can be adjusted in a range from 0% (off) to 100% (max). The selected volume is shown in the graphic display bottom left. The volume remains stored after switching the device off/on.
- Page 34 SAR-DF 517 Fig. 3-5 Display page 2 (expanded +/- 45° Bearing Display) Fig. 3-6 Display page 3 (Bearing Display as Text) 1 >Bearing value<, by the means of a sophisticated averaging procedure a steady display is accomplished, either graphic display...
- Page 35 SAR-DF 517 5 >Offset< displays the offset value (adjusted in the edit-menu). 6 >Mounting< -indicator of the mounted bearing antenna. Shows the mounting arrangement of the antenna (can be adjusted in the edit-menu) as verification. ( = TOP mounted, =BOTTOM mounted) 7 >LS: ---:---<...
- Page 36 SAR-DF 517 3.3.4. Cospas/Sarsat, analysing the binary continuous signal Selecting this page automatically activates the active frequency on 406,025 MHz (or the respective training frequency). Correct reception of the Cospas/Sarsat data signal (112 resp.144 data bits) displays data as follows: Fig.
- Page 37 SAR-DF 517 3.3.5. Edit menu The edit menu enables several adjustments. All confirmed changes remain stored even after switching the device off/on. 1 >± ± Select< rotary switch selects the value to be changed. 2 >± ± < rotary switch changing the value. Confirm the changed value by pressing pushbutton >STORE<.
- Page 38 SAR-DF 517 3.4. Adjusting training frequencies This menu enables you to adjust the training frequencies. >± ± Select< rotary switch selecting the training-frequency (MHz/kHz). >± ± < rotary switch changing the frequency. Confirm the changed value by pressing pushbutton >STORE< .
- Page 39 SAR-DF 517 3.5. Error messages If an internal error device is recognised, a corresponding error message will be shown on the flashing display. With simultaneous errors the error with highest priority will be displayed. Error message Error, location Reason Error 0 Antenna Unit: Receiver board defective.
