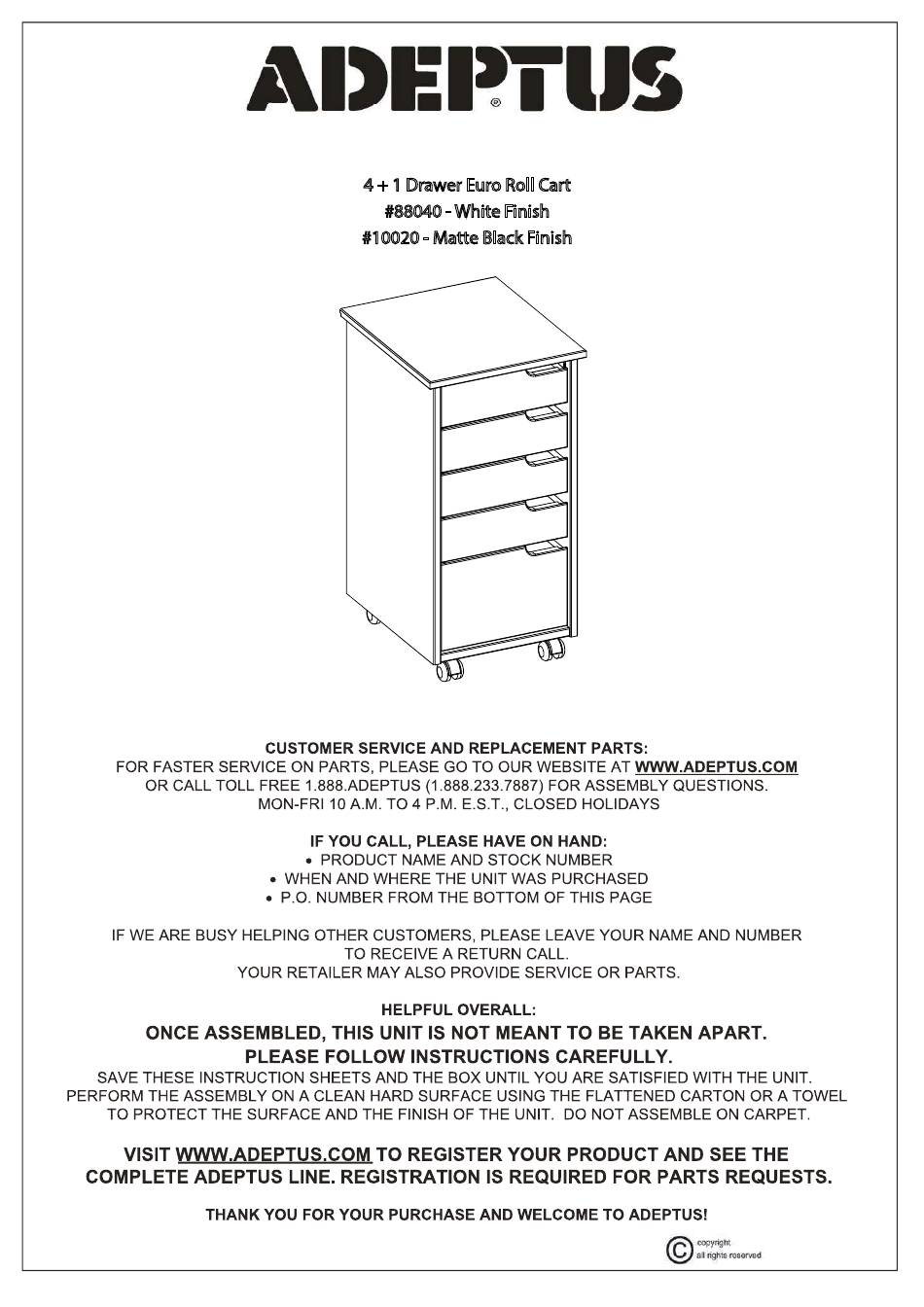

- Page 1 ASSEMBLY INSTRUCTIONS 4 + 1 Drawer Euro Roll Cart #88040 - White Finish #10020 - Matte Black Finish NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED. PO EB2L7QD...
- Page 2 2-10 NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN COPYRIGHTED.
- Page 3 Dowel 8.0 x 30mm Drawer Runner Screw 3.5 x 30mm Screw 3.0 x 25mm (Ea) Caster and (Eb) Caster Insert Pair Nail TIP: DOWELS (PART A) VARY EVER SO SLIGHTLY. IF A DOWEL (PART A) IS LOOSE WE PREFER YOU CALL OUR TOLL FREE NUMBER FOR ADDITIONAL DOWELS - VS GLUING THE DOWEL.
- Page 4 PREPARE PARTS FOR ASSEMBLY THIS STEP REQUIRES A FLAT, HARD SURFACE, NOT A BED! PUSH THE DOWELS (PART A) INTO THE EDGES OF THE FOLLOWING PARTS, AS SHOWN: (PART 2) RIGHT SIDE (PART 3) LEFT SIDE bounce (PART 5) FRONT CASTER SUPPORT making assembly difficult and could (PART 6) BACK CASTER SUPPORT lead to damage of the parts.
- Page 5 ATTACH THE SIDES TO THE CROSSBARS ATTACH ONE SIDE FIRST AND THEN THE OTHER. • DO NOT STAND LEFT SIDE (PART 3) UP ON THE EDGE YET. TO EASE ASSEMBLY, LAY SIDE FLAT ON THE FLOOR, RUNNER SIDE VISIBLE. • MATCH UP BACK CASTER SUPPORT (PART 6) AND FRONT CASTER SUPPORT (PART 5) AT DOWEL HOLES LOCATED AT THE BOTTOM OF SIDE.
- Page 6 ATTACH THE BACK PANEL Use all back panels nails. Evenly spaced, they help make the unit strong. • HOLD THE (PART 4) BACK PANEL IN THE GROOVES INSIDE THE UNIT’S SIDES. • ALSO MAKE SURE THE BACK PANEL FITS IN THE GROOVE AT THE BACK OF THE TOP. •...
- Page 7 ASSEMBLE THE SMALL DRAWERS • LINE UP THE BOTTOM EDGE OF THE DRAWER • REPEAT ON THE OTHER SIDE OF THE DRAWER. SIDE (PART 7) WITH THE BOTTOM EDGE OF THE DRAWER FRONT (PART 9). • SLIDE IN DRAWER BOTTOM (PART 13) TROUGH GROOVES IN THE DRAWER SIDES (PART 7).
- Page 8 ASSEMBLE THE LARGE DRAWER • LINE UP THE BOTTOM EDGE OF THE DRAWER • REPEAT ON THE OTHER SIDE OF THE DRAWER. SIDE (PART 8) WITH THE BOTTOM EDGE OF THE DRAWER FRONT (PART 10). • SLIDE IN DRAWER BOTTOM (PART 13) TROUGH GROOVES IN THE DRAWER SIDES (PART 8).
- Page 9 INSERT DRAWERS AND COMPLETE ASSEMBLY • THE DRAWER SIDES HAVE A CHANNEL THROUGH THE MIDDLE OF THE PART. THIS CHANNEL SLIDES OVER THE DRAWER RUNNERS (PART B). • SLIDE ALL DRAWERS IN. CHECK THE DRAWERS RUN SMOOTH. ONE DRAWER FRONT SHOULD NOT OVERLAP ANOTHER DRAWER FRONT EDGE.
-
Page 10: Care Instructions
COMPLETED ASSEMBLY: THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS! USE AND CARE INSTRUCTIONS: CARE INSTRUCTIONS: • NORMAL USE: WIPE WITH A CLEAN CLOTH. • WHEN NEEDED TO CLEAN SCUFFS: WIPE CLEAN WITH A SLIGHTLY DAMP CLOTH AND MILD CLEANER.
