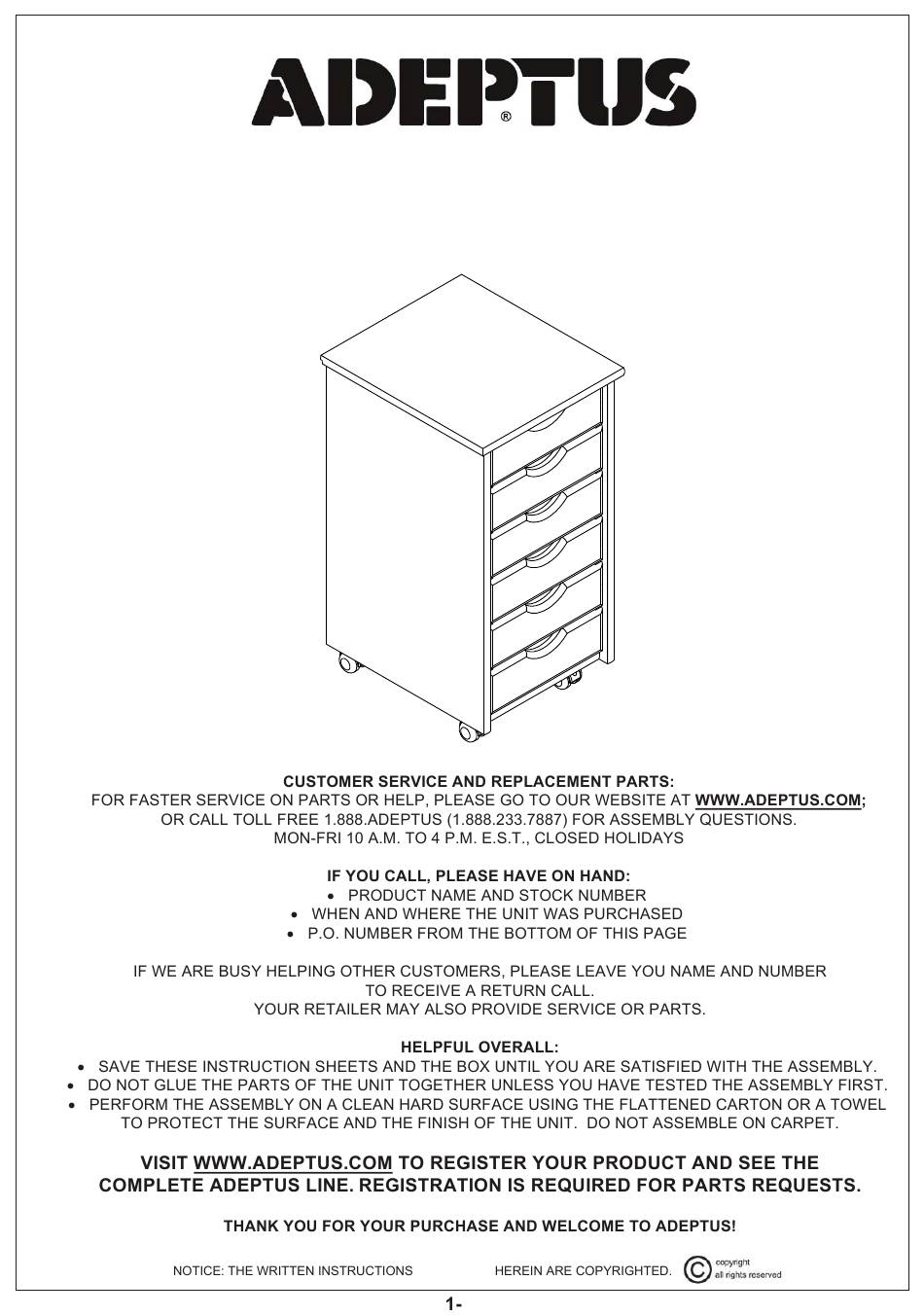

- Page 1 ASSEMBLY INSTRUCTIONS 6 Drawer Roll Cart #10016 - Matte Black Finish #10018 - White Finish CONTAINED...
- Page 2 2-07 NOTICE: CONTAINED...
- Page 3 Dowel 8.0 x 30mm Screw 3.0 x 25mm Screw 4.0 x 30mm Drawer Runner (Ea) Caster and (Eb) Caster Insert Pair Nail 1.5 x 19mm TIP: DOWELS (PART A) VARY EVER SO SLIGHTLY. IF A DOWEL (PART A) IS LOOSE WE PREFER YOU CALL OUR TOLL FREE NUMBER FOR ADDITIONAL DOWELS - VS GLUING THE DOWEL.
- Page 4 PREPARE PARTS FOR ASSEMBLY Perform the entire assembly on a clean, hard surface using the • PUSH THE DOWELS (PART A) INTO THE EDGES OF flattened box or a towel to protect THE FOLLOWING PARTS, AS SHOWN: the surface and the unit's finish. DO (PART 2) RIGHT SIDE NOT assemble on carpet.
- Page 5 ATTACH CROSSBARS TO THE SIDE PANELS ATTACH ONE SIDE FIRST AND THEN THE OTHER SIDE. DO NOT STAND LEFT SIDE (PART 3) UP • ON THE EDGE YET. TO EASE ASSEMBLY, LAY SIDE FLAT ON THE FLOOR, RUNNER SIDE VISIBLE. •...
- Page 6 ATTACH THE BACK PANEL Use all back panels nails. Evenly spaced, they help make the unit strong. • HOLD THE (PART 4) BACK PANEL IN THE GROOVES INSIDE THE UNIT´S SIDES. • ALSO MAKE SURE THE BACK PANEL FITS IN THE GROOVE AT THE BACK OF THE TOP.
-
Page 7: Completed Assembly
• STEP BACK TO LOOK AT THE UNIT. YOU MAY PREFER TO MOVE ONE DRAWER TO ANOTHER´S POSITION. COMPLETED ASSEMBLY: THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS! USE AND CARE INSTRUCTIONS: CARE INSTRUCTIONS: • NORMAL USE: WIPE WITH A CLEAN CLOTH.
