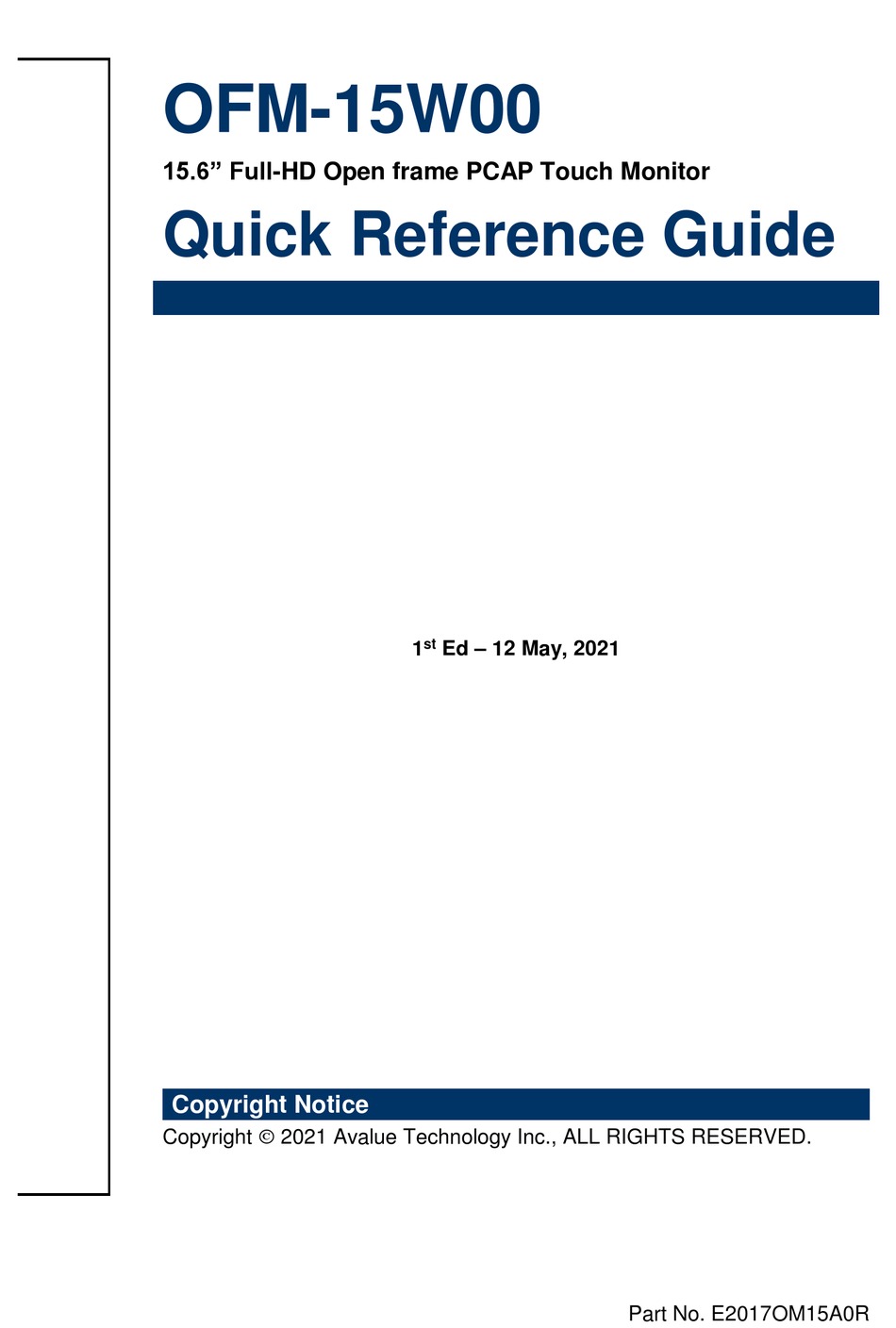

OFM-15W00
15.6" Full-HD Open frame PCAP Touch Monitor
Quick Reference Guide
Ed – 12 May, 2021
st
1
Copyright Notice
Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017OM15A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFM-15W00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalue Technology OFM-15W00

  • Page 1 OFM-15W00 15.6” Full-HD Open frame PCAP Touch Monitor Quick Reference Guide Ed – 12 May, 2021 Copyright Notice Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017OM15A0R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFM-15W00 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFM-15W00 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFM-15W00 Quick Reference Guide...
  • Page 5: Table Of Contents

    1.5.1 Front and Rear side ........................11 1.6 Panel Mounting ......................12 1.7 Wall Mounting......................23 Hardware Configuration ................... 33 OFM-15W00 connector mapping ................. 34 2.1.1 VGA connector (VGA) ........................ 34 OSD Key Setting ....................35 2.2.1 OSD Key Function: ........................35 2.2.2...
  • Page 6: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFM-15W00 Industrial Touch Monitor  6 OFM-15W00 Quick Reference Guide...
  • Page 7: System Specifications

    (Option for wide voltage 9~36V DC jack & phoenix connector in) Dimension 387 x 235 x 47 mm Weight 2.5 Kg Color Silver Fanless Fanless Reliability EMI Test CE/FCC Class A Vibration Test Random Vibration Operation OFM-15W00 Quick Reference Guide...
  • Page 8 Test Ea : Drop Test 1 Test phase : One corner, three edges, six faces Drop Test 2 Test high : 96.5cm 3 Package weight : 5Kg 4 Test drawing 4-feet drop resistance without package 8 OFM-15W00 Quick Reference Guide...
  • Page 9 Quick Reference Guide MIL-STD-810G Operating 0°C ~ 50°C (32°F ~ 122°F) Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Storage -20°C ~ 60°C (-4°F ~ 140°F) Temperature Note: Specifications are subject to change without notice. OFM-15W00 Quick Reference Guide...
  • Page 10: System Overview

    9~36V DC-in (Optional) Connectors Label Function Note DP connector HDMI HDMI connector VGA connector USB(B) for Touch USB(B) connector for Touch Mic-in Mic-in audio jack DC in(12V) DC power-in connector DC in(9~36V) DC power-in connector 10 OFM-15W00 Quick Reference Guide...
  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) OFM-15W00 Quick Reference Guide 11...
  • Page 12: Panel Mounting

    OFM-15W00 1.6 Panel Mounting Panel mount is the solution for mounting OFM into the opening of wall (or cabinet). The dimension of opening is as below: (Opening dimension) (Panel thickness) (Installation surface) (Unit: mm) 12 OFM-15W00 Quick Reference Guide...
  • Page 13 Quick Reference Guide Step1. Insert and fasten 12 pcs Hexagon Studs on each side of the OFM-15W00 Bracket. Hexagon Stud OFM-15W00 Item Part Name Quantity OFM-15W00 Quick Reference Guide 13...
  • Page 14 OFM-15W00 Step2. Assemble the Front bracket to OFM-15W00 and fasten 4 screws on the corresponding Hexagon Studs. Screw Front Bracket Hexagon Stud Item Part Name Quantity 14 OFM-15W00 Quick Reference Guide...
  • Page 15 Quick Reference Guide Step3. Assemble the 4pcs Panel Mount Brackets on the Front Bracket and fasten the 8 pcs screws to the corresponding holes. Panel Mount Bracket Screw Front Bracket Item Part Name Quantity OFM-15W00 Quick Reference Guide 15...
  • Page 16 OFM-15W00 (outside the wall (or cabinet) opening) Step4. Embed the OFM-15W00 semi-finished product into the wall (or cabinet) opening. Wall Item Part Name Quantity 16 OFM-15W00 Quick Reference Guide...
  • Page 17 Step5. Fasten the Panel mount screw*8 to the Panel mount kit bracket*8 (as shown in Figure 5-1), and then attach them to the Panel Mount Bracket*4 fixing slots. Figure 5-1 Panel mount Screw Panel Mount Kit Bracket Panel Mount Bracket Item Part Name Quantity OFM-15W00 Quick Reference Guide 17...
  • Page 18 OFM-15W00 18 OFM-15W00 Quick Reference Guide...
  • Page 19 Step6. Fasten the Panel mount screw*8 against the wall, so that the entire module can be secured by the Panel mount screws and Panel mount kit brackets.. Panel mount Screw Wall Item Part Name Quantity OFM-15W00 Quick Reference Guide 19...
  • Page 20 OFM-15W00 (The diagram is demonstrated by OFM-15W00, but the concept “the entire module can be secured by fastening the Panel mount screws against the wall” is the same) 20 OFM-15W00 Quick Reference Guide...
  • Page 21 Quick Reference Guide Step7. Paste the Decoration Plate on the Front bracket to complete installation. Decoration Plate Front Bracket Item Part Name Quantity OFM-15W00 Quick Reference Guide 21...
  • Page 22 OFM-15W00 22 OFM-15W00 Quick Reference Guide...
  • Page 23: Wall Mounting

    Quick Reference Guide 1.7 Wall Mounting Wall mount is the solution for mounting OFM into the wall. Size of the opening: (Opening dimension) (Wall box installation dimension) (Installation surface) (Unit: mm) OFM-15W00 Quick Reference Guide 23...
  • Page 24 OFM-15W00 Screw hole location: (Unit: mm) 24 OFM-15W00 Quick Reference Guide...
  • Page 25 Step1. Install the 15” Wall Box and fix it on the wall, and use suitable screws to lock the wall box (the screws can be purchased according to actual needs) Wall box Item Part Name Quantity OFM-15W00 Quick Reference Guide 25...
  • Page 26 OFM-15W00 Step2. Fasten 12pcs Hexagon Studs on each side of the OFM-15W00 Panel Bracket. Hexagon Stud OFM-15W00 Item Part Name Quantity 26 OFM-15W00 Quick Reference Guide...
  • Page 27 Quick Reference Guide Step3-1. Assemble the Front bracket to the OFM-15W00, and fasten the 12 pcs screws on the corresponding Hexagon Studs; Step3-2. Assemble the 3 pcs Wall mount kit to the Front bracket with 6pcs screws. Step3-3. Insert the 3 pcs Support Bracket into the rectangular hole of Wall mount kit.
  • Page 28 OFM-15W00 28 OFM-15W00 Quick Reference Guide...
  • Page 29 Quick Reference Guide Step4. Fasten the Ground wire with 2 screws on the ground screw holes of Front bracket and Wall box. Ground wire Screw Front bracket Wall box Item Part Name Quantity OFM-15W00 Quick Reference Guide 29...
  • Page 30 OFM-15W00 Step5. Wrap the Kensington lock (option) around the hole in the Front bracket and attach the lock to the keyhole in the Wall box. Kensington lock Front bracket Wall box Item Part Name Quantity 30 OFM-15W00 Quick Reference Guide...
  • Page 31 Quick Reference Guide Step6-1. Store the Ground wire and Kensington lock in the Wall box and embed the OFM-15W00 semi-finished product into the wall (Wall Box). Step6-2. Paste the Decoration Plate on the Front bracket to complete installation. PC bezel...
  • Page 32 OFM-15W00 32 OFM-15W00 Quick Reference Guide...
  • Page 33: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw OFM-15W00 Quick Reference Guide 33...
  • Page 34: Ofm-15W00 Connector Mapping

    OFM-15W00 2.1 OFM-15W00 connector mapping 2.1.1 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK 34 OFM-15W00 Quick Reference Guide...
  • Page 35: Osd Key Setting

    Quick Reference Guide 2.2 OSD Key Setting 2.2.1 OSD Key Function: OFM-15W00 Quick Reference Guide 35...
  • Page 36: Osd Key Tree Table

    0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 0 - 100 DEMO / TYPE1 / TYPE2 / TYPE3 / TYPE4 / TYPE5 Color Format / YUV (VGA signal only) 36 OFM-15W00 Quick Reference Guide...
  • Page 37 Into test mode: No Signal input, then press menu key + right (up) key at the same time. Release test mode: Signal input will release test mode. Hot Key: Down/Backlight-, UP/Backlight+, Exit/Auto adjust(no auto gain) OFM-15W00 Quick Reference Guide 37...
