Related Manuals for Wuloo WL-666
Summary of Contents for Wuloo WL-666
- Page 1 Wuloo Wireless Intercom System Model: WL-666 FCC ID: 2AOBR-666 E-mail: support@wulooofficial.com Facebook page: @WulooOfficial...
- Page 2 User-friendly design. This product is shipped with a quick start guide and detailed instructions. You can also contact the Wuloo service team for product related questions and help at any time! We are dedicated to providing customers with a 100% satisfactory service.
-
Page 3: Table Of Contents
Contents 1. What’s Included in The Box? 1.1 Intercom Overview 2. Getting Started 2.1 Connect AC Power 2.2 Set Code & Channel 2.3 Make an “Address List” 2.4 Test Connecting 2.5 Distribute Different Stations to Different Users 2.6 Notes 3. Advanced Settings 3.1 Volume Setting 3.2 Code &... -
Page 4: What's Included In The Box

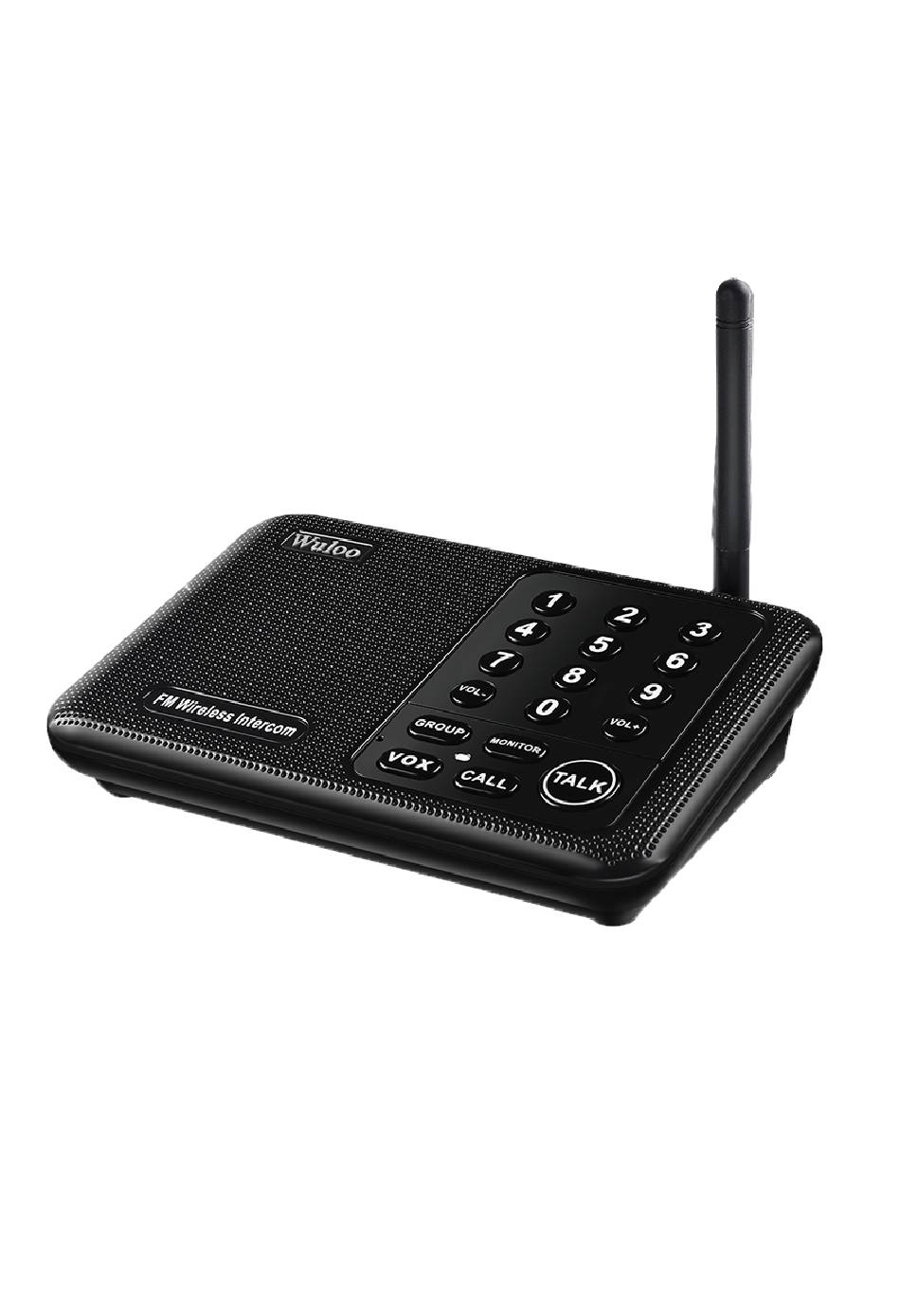

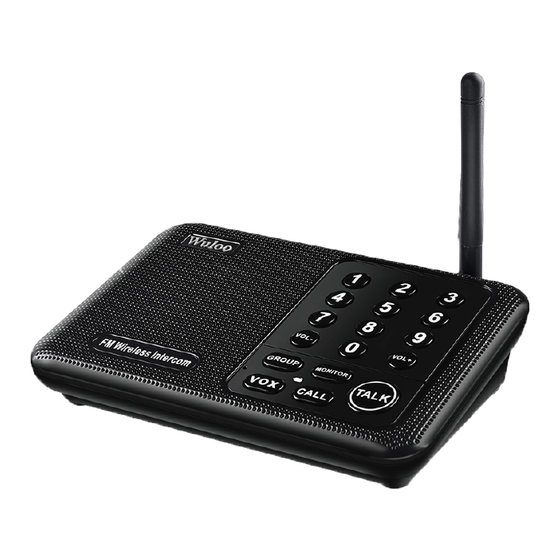

1. What’ s included in the Box 1.1 Intercom Overview Every intercom station has the following accessories. If you purchase additional stations, each new intercom station will come with its own set of the accessories listed below. Digital Code(A/B/C) Power Port （DC 5V 1A) Speaker VOL- Channel Number (0-9) - Page 5 2.1Connect AC Power Every intercom is equipped with an adapter (DC 5V1A) and a cable. Please connect every intercom station to your local AC power. We kindly suggest that you use the original adapter and cable that was included in your packaging to turn on your device(s).
-
Page 6: Test Connecting
2.3 Make an “Address List” If you have a large intercom system with many intercom Member A: units and each unit has a different channel number, you may Code A Channel 3 need an “address list” to help you remember which Member B: intercoms belong to which users. -
Page 7: Notes
2.6 Notes 1. You will need to press and hold the TALK button when TALK you want to speak to another user. Simply clicking the TALK button is an invalid entry; TALK 2. You cannot press the TALK button on both sides of the TALK system at the same time. -
Page 8: Advanced Settings
3.Advanced Settings 3.1 Volume Setting This intercom has 8 levels of volume available. Press VOL+/VOL- to set the volume. 8 levels of volume available 3.2 Code & Channel Setting The intercom is a real-time communication system, and it requires that the two machines have the same channel and code. -
Page 9: Talk
3.3.1 TALK To use the TALK feature, press and hold the TALK button , and the indicator will turn red light. Please TALK speak while the red indicator light is on as you press the TALK button . Once you are done talking, TALK release the TALK button and the indicator will turn off. - Page 10 “GROUP” function update: Add a switch for GROUP function For Wuloo intercom system have sold a huge amount in USA, so some customers will get interference from other home or pick up strange conversation when your neighbors also bought Wuloo intercom system.
-
Page 11: Monitor
3.3.3 MONITOR Put the intercom in the room you wish to have monitored (for example, a baby’s room), and then press the MONITOR button . This intercom unit will stay in transmit mode, where it will constantly send MONITOR audio to any intercom unit with same channel and code. The monitor function has a 10-hour time limit. If you need to monitor for a longer period of time, you will need to reset it again every 10 hours. -
Page 12: Call
Notes： 1.VOX mode and MONITOR mode are very similar, but also have a few key differences: Monitor mode VOX mode An intercom unit in MONITOR mode An intercom unit in VOX mode should be should be put in the monitored room (like stationed on your side to help you speak a baby’s room) without pressing and holding the TALK button... - Page 13 General Manager Room Channel 2 Code A HR Department Channel 4 Code A Financial Department Channel 3 Code A Sales Department Channel 5 Code A Usage Scenario 1：The general manager informs the entire staff that they’re having a meeting in the meeting room in 10 minutes.
- Page 14 Usage Scenario 2：The general manager’s office has something important to tell the financial department and needs to ask the financial manager to come to his office right away. In this case, the general manager can use the CALL function to call the head of the financial department by pressing and holding the TALK button to send the message.
-
Page 15: Additional Notes
4.Additional Notes Notes: 1. The intercom system is a real-time communication system which has no memory or storage function. Therefore, you cannot receive any information while you are talking to other users. 2. Please note that you will need to set the same channel and code if you want 2 intercom stations to receive communication. -
Page 16: Adding Additional Units
The intercom units 1. Try setting up the units in different locations. If the units work in a different do not work location but not in your home, the issue may be with the walls of your home or office. 1. -
Page 17: Warranty
We will do our best to answer you within 12 business hours. You can also visit our official Facebook page and @WulooOfficial. We will reply to you immediately if our admin is online, or usually within 6 hours if the admin is not immediately available. Thank you very much for choosing Wuloo！ 8.Warranty We believe in honesty and reliability for all our products.
