Unpack the heater to make sure that all the items are present
Instruction Manual
and that there are no components left in the box and that the
heater head is free from any packing material.
Using the detailed drawing follow the steps to assemble your
heater.
Do not connect the heater to the electrical supply until all the
assembly is complete.

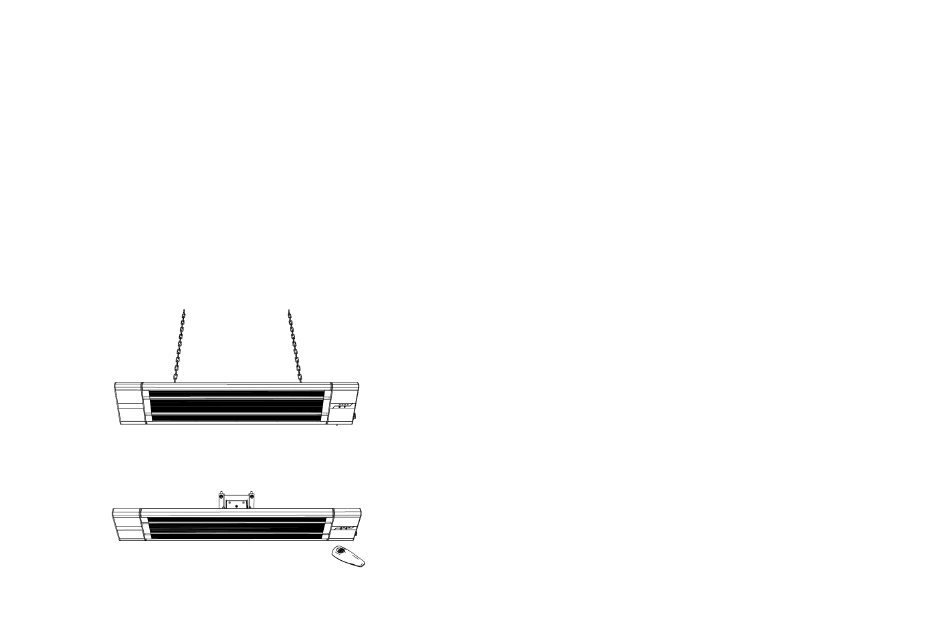

Electric Patio Heater
Do not connect the heater to the electrical supply if any of the
components or the power cord is damaged in any way.
If in doubt contact your supplier.
This appliance can be used by children aged from 8 years and
ART. NR. 31. 5007
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance
shall
not
be
made
by
children
without
supervision.
The instruction manual shall provide adequate instructions for
connection to the supply ensuring an equivalent protection!
WARNING: This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant
supervision is provided.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the
Please read these instructions carefully before using your
appliance provided that it has been placed or installed in its intended normal
new heater
operating position and they have been given supervision or instruction

Advertisement

loading
Need help?

Need help?

Do you have a question about the 31.5007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tuindeco 31.5007

  • Page 1 Unpack the heater to make sure that all the items are present Instruction Manual and that there are no components left in the box and that the heater head is free from any packing material. Using the detailed drawing follow the steps to assemble your heater.
  • Page 2: Installation

    Connection to 220-240 Volts Power Supply concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. ...
  • Page 3 Installation to Wall  When fixing the heater to a wall, ensure hinges are in the underside so that the lid hands down in the open position.  Minimum required distances: a) 500mm from the side wall b) 500 mm from the ceiling Installation height above 1.8M ...
  • Page 4 Assembling Processfor wall mounted Preparation stage: Please remove the four M6*10 Screwson the heater,and use them for the Step 2 Step 2:Install the bracket on the back of the heater. Adjust the four sliders which inside the track to the middle of the heater .Fix the bracket which you have assemble in the step 1 with four ○...
  • Page 5 ○ Step 4: Put the heater on the wall, slide it into the part 1 Complete! ○ Step 5: Please tighten the M6*10securityscrew 5 toavoid accidents...
  • Page 6 Assembling Process for celling type Preparation stage: Please remove the four M6*10 Screws on the heater,and use them for the step1. Step2: ○ Let the carabineer at the end of the chains 12 through the holes of the ○ Brackets .The length adjustment range of two Chains 12 are between 500mm-750mm.
  • Page 7 Caution 13. The indication of different positions of switches should be visible from a distance of 1M at least. Some parts of this product can become very hot and cause burns. 14. The Marking concerning covering shall be visible after the Particular attention has to be given where children and vulnerable heater has been installed.
  • Page 8 Operation 28. The heater is at high temperature when in use. Unplug the heater and wait until it cools down before cleaning. Connect the power cable to a 13 amp supply which is located in a safe, 29. Don’t use this heater in place where causticity or volatile air dry area.
  • Page 9 Technical specification  The remote control: • Power supply 230V~50Hz • Wattage max1800w • Net weight 6.5 kg • Insulation class I • Width23 cm; Lengh:109cm  Although the patio heater is waterproof, do not use when raining or in wet conditions. ...
