MA 130420 Quick Start Manual

The MA Optoisolator PCB provides optical galvanic separation and enforcement of DMX 512 (1990)
input and output signal. Current boost is also provided allowing for longer cable runs.
In addition, the isolation also provides ground loop and shock hazard protection.

FEATURES:

DMX IN:
OUTPUTS:

ERROR HANDLING:

Check fuse if the Optoisolator PCB fails to function.
ERRORS may be caused by:
>NOTE: All DMX512 inputs and outputs must be shielded and the shielding must be con
nected to the ground of the corresponding plug.
The PCB has to be installed into a metal case and connected by a specialist follow
ing the valid electrical and EMC regulations.
This PCB is not a complete appliance and therefore a CE mark is not needed.

TECHNICAL DATA:

Mains supply:
Signal input/output:
PCB dimensions (mm)
eMail: info@malighting.de . Tel.: + 49 9 31 49 79 40 . User's Manual MA Optoisolator PCB

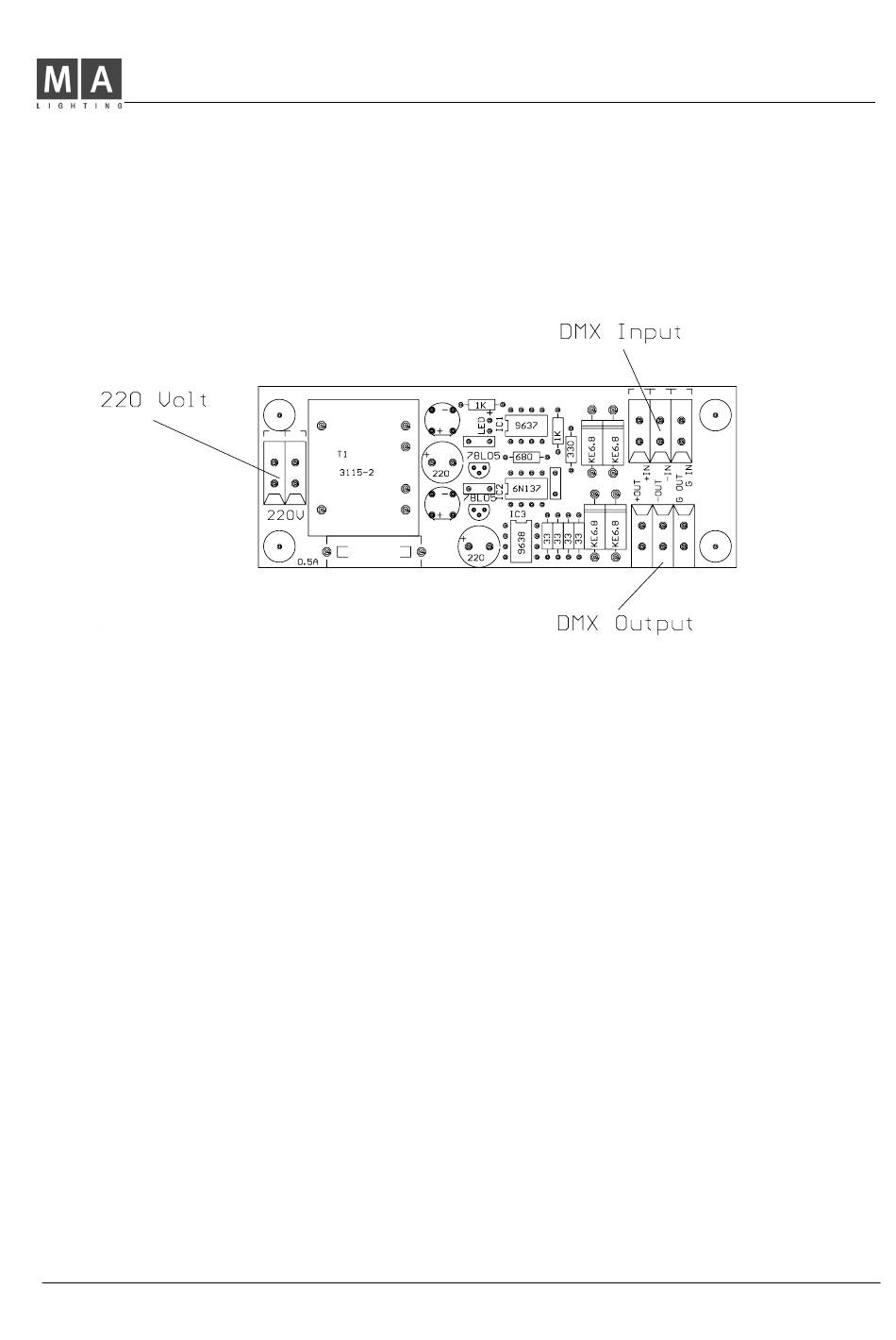

MA Optoisolator PCB

Overvoltage protected DMX input
Optically isolated amplified output
The DMX output is overvoltage protected
Contact problems with cables and connectors
Short circuit and/or wrong pinlayout
Lack of cable shield or missing data input
Incorrect cable or extremely cable length
230 VAC / 50 Hz or 110 VAC / 60 Hz (factory setting)
Wago sockets
44 x 115
Made in Germany
