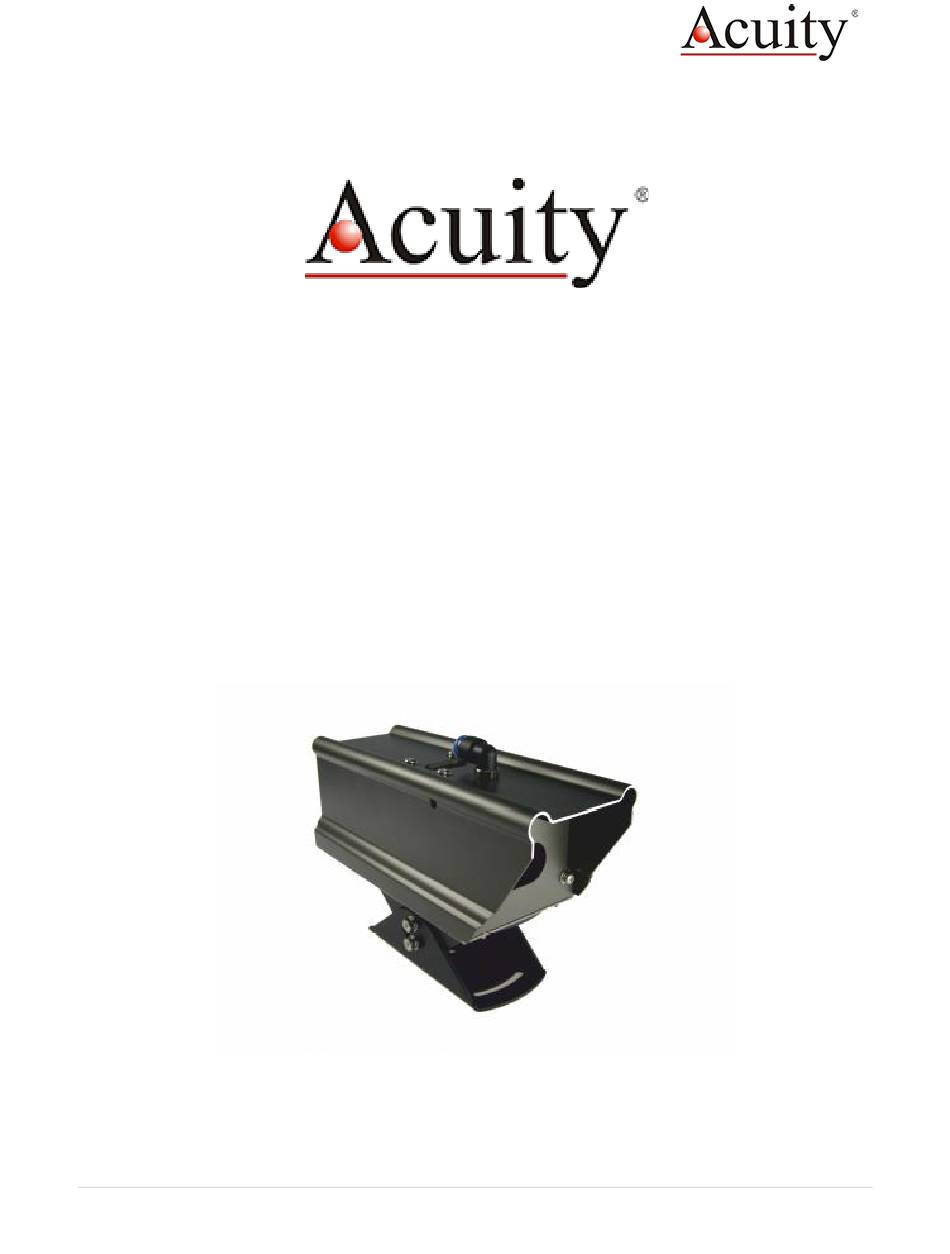

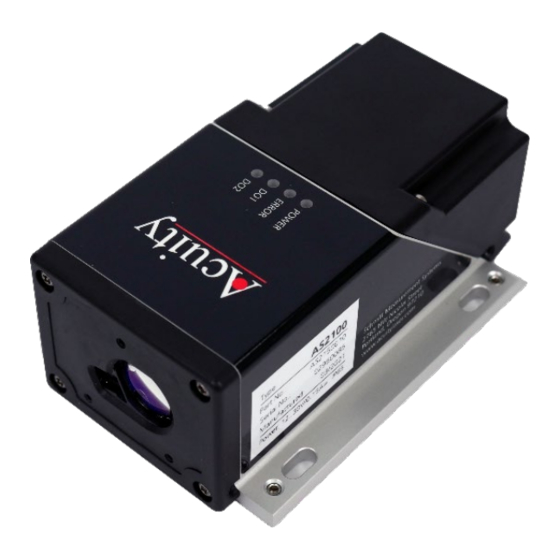

  • Page 1 Air Cooling Jacket for AS2100 Laser Sensor Manual V1.1 03/29/22 P a g e...
  • Page 2: Table Of Contents

    Table of Contents 1 General Information ..........................3 Specification ............................3 3 Assembly ..............................3 4 Base Alignment ............................5 5 Mounting Air Line ............................6 5.1 LED Status ............................6 6 Pictures ..............................7 7 Air Cooling Jacket Structure ........................7 7.1 Air Cooling ............................
  • Page 3: General Information

    1 General Information • This Air-Cooling Jacket can be used with our AS2100 standard interface. The sensor extensions Ethernet/IP can't be used with this Air-Cooling Jacket. • The AS2100 Laser Sensor, Air-cleaner, Air-dryer, Air-filter, Pressure reduction and air regulator are not included.
  • Page 4 Remove the four hexagonal socket set screws. You need these tapped holes to mount the sensor into the jacket. Slide the sensor into the air jacket. Set the four screws and attach the sensor to the housing. The screws are provided.
  • Page 5: Base Alignment

    When you close the rear cover of the air- cooling jacket, installation is easier without bending the cable inside the enclosure. Set the four screws and attach the rear cover. Finally, tighten the metallic cable gland. 4 Base Alignment The tilting can be adjusted with the four screws on the two sides of the air jacket.
  • Page 6: Mounting Air Line

    5 Mounting Air Line Remove the tube from quick coupling. Connect the 8mm tube into the quick coupling 5.1 LED Status The user can see the sensor’s operating status through the clear glasses on the housing top without pulling the laser sensor out. This makes it convenient to do maintenance or monitoring device on site.
  • Page 7: Pictures

    6 Pictures 7 Air Cooling Jacket Structure P a g e...
  • Page 8: Air Cooling

    7.1 Air Cooling Generally, the air provided must be clean, oil- and moisture free. Please use all the necessary equipment. The air guide block has a jaw trough which oil and moisture are discharged through drainage channels. Only fresh air is left inside the housing in order to perform both cooling and air purging functions. P a g e...
  • Page 9: Drawing

    8 Drawing Dimensions in mm Weight: 1.264 kg P a g e...
