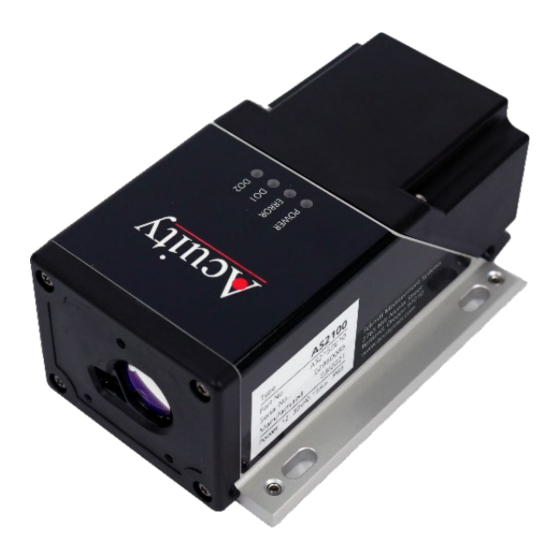

- Page 1 Cooling Enclosure AS2100 User’s Manual Rev. 1.0 For use with AS2100 January 17, 2023 Acuity A product line of Schmitt Industries, Inc. 2765 NW Nicolai St. Portland, OR 97210 www.acuitylaser.com...
- Page 2 ........................5 OUNTING THE NCLOSURE 3.3. 1. I ..............6 NSTALLING OMPONENT INTO THE NCLOSURE 3.4. 1. S ........................7 EALING THE NCLOSURE 3.5. 1. A ............................7 OOLING CLEANING AND MAINTENANCE ......................... 8 AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
- Page 3 1. Introduction Developed and tested by ACUITY LASER, this enclosure was designed to protect your device(s) in harsh, industrial environments. Follow this guide for instructions on assembling and maintaining the enclosure while ensuring the performance of the integrated component. 2. Protection Rating Enclosure properties are equivalent to NEMA 6 / IP68, guaranteed to be dust tight as well as protecting against continuous liquid immersion.
- Page 4 Loosen the M6 hex head bolts around the base of the enclosure. Do not remove any fasteners around the viewport unless to replace a damaged window. These will be 7mm hex nuts on the inside of the enclosure. AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
- Page 5 3.2. 1. Mounting the Enclosure Four, M6 bolts run through the 4 corners of the base of an enclosure to secure an assembly. AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
- Page 6 Align the mounting holes on your sensor with the mounting base threaded studs in the enclosure. Secure your device to the mounting base using the fasteners provided with your device (if not use four of the M4 nuts). AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
- Page 7 Enclosure is equipped with a Push-to-Connect tube fitting, make sure your air supply is clean and dry. Long air lines can accumulate moisture in humid environments. Recommended supply air pressure is 2-5 PSIA (0.138-0.345 Bar). AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
- Page 8 It is important to routinely clean the surface of your enclosure’s window to maintain visibility. For glass, make sure the surface is wet before cleaning to avoid scratching the surface. A microfiber towel is recommended for wiping down the surface when you are finished washing. AS2100 COOLING ENCLOSURE User’s Manual Rev 1.0...
