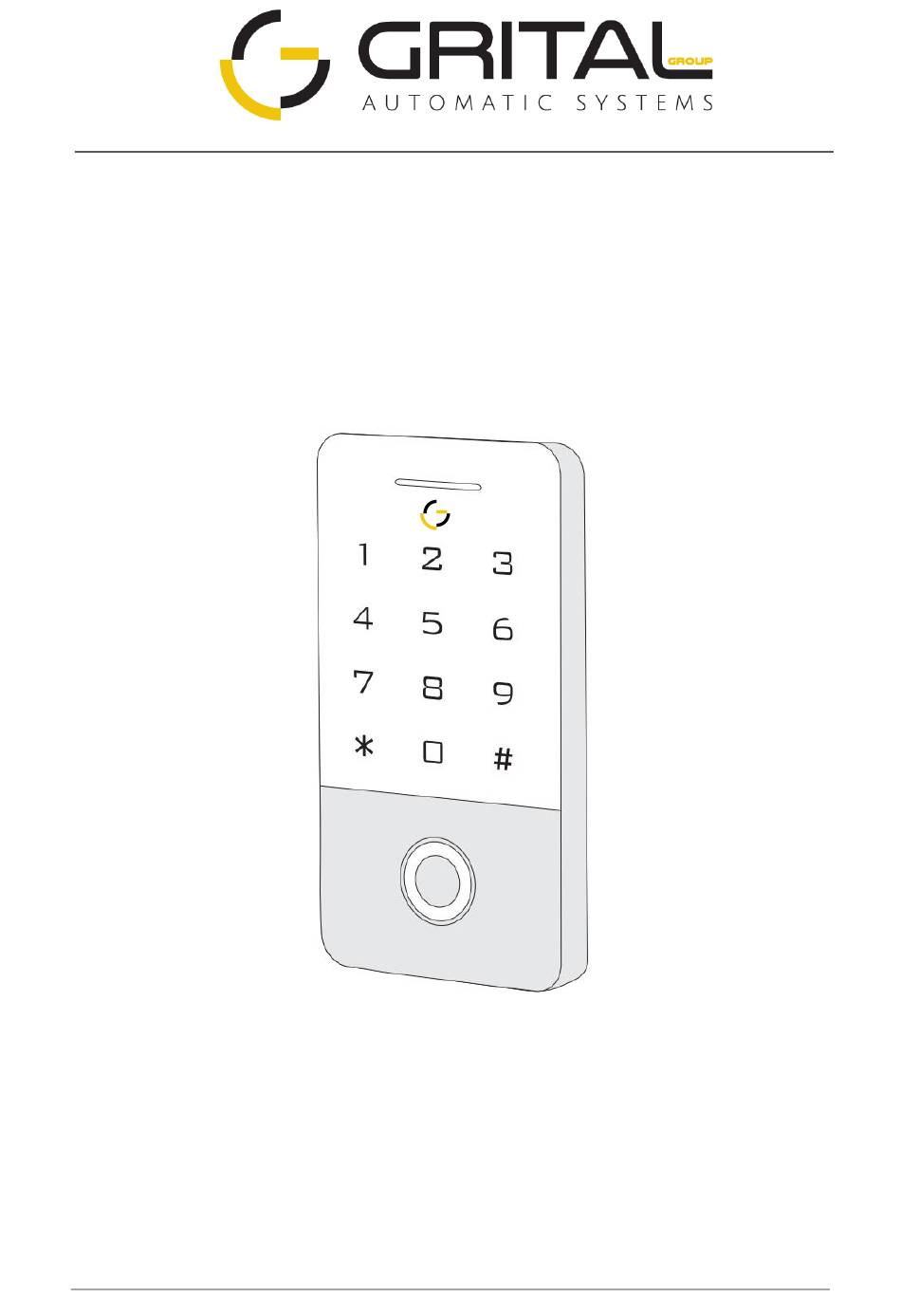

- Page 1 A2 - W WiFi User Manual Please read and understand this instruction completely before installation or operation - 1 -...
-
Page 2: Technical Specifications
1. Introduction This series of product is a new generation of multi-function standalone access control . It adopts new ARM core 32-bit microprocessor design,which is powerful ,stable and reliable. It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions ,such as offices,residential communities, villa, bank and prison etc.. -
Page 3: Common Power Supply
5. Wiring Color Marks Description Green Wiegand input ( Wiegand output as card reader mode) White Wiegand input ( Wiegand output as card reader mode) Grey Alarm Alarm signal MOS tube drain output (optional) Yellow OPEN/ BEEP Exit button input( Beeper input as card reader mode) Brown D_IN/ LED Magnetic switch input (LED input as card reader mode) ( optional) - Page 4 6.2 Special Power Supply Diagram Note: The magnetic contact and alarm function is optional 6.3 Card Reader Mode Diagram - 4 -...
-
Page 5: Sound And Light Indication
7. Sound and Light Indication Operation Status Light indicator Buzzer Stand by Operation successful Green Beep- Operation failed Beep-Beep-Beep- Manager card enter programming Beep-Beep- Master card exit programming Beep- Press digital key Beep- Press * key Beep- Entering access code Red indicator flash slowly After reading the card (Card+Code mode) Red indicator flash slowly... - Page 6 Add and Delete Users Enter programming mode: Press *（Master code）# Menu Operation steps Description Default Value Read a card / Press a fingerprint Add card users or fingerprint users twice... * continuously Enter 8 or 10 digits card number # … Add a card users by card number Enter a ID number # read a card / Add a card user or fingerprint user...
-
Page 7: Advanced Setting
Advanced Setting Enter programming mode: Press *（Master code）# Menu Operation steps Description Default Value Door opening time range: 0-300S 0 refers to: (0-300) # 50mS Alarming time set to 0, refers to NO alarm (1-99) # Alarming time range: 1-99 min Normal mode Attempts 5 invalid users, the external alarm, and built-in buzzer will work... -
Page 8: Operation Steps
8.2 Card Reader Mode Setting Enter programming mode: Press *（Master code）# Menu Operation steps Description Default Value (New master code) # (re-enter new Change master programming code 999999 master code) # Set added card or added Read a card / Press fingerprint twice * fingerprint Set deleted card or deleted Read a card / Press fingerprint twice *... -
Page 9: Delete Card
9. Master Card Operation 9.1 Added Card Read added card Read 1st user card Read 2nd user card … Read added card. Note: The added card is used to add user card continuously and quickly. Read the added card first time, sounds twice short beep beep sound, the indicator light turn to orange, which means you have entered into adding user program. -
Page 10: Reset To Factory Default
11.2 Reset to Factory Default User could return all programmable options to the factory default values by resetting, when the master code is forgotten, or the default setting has been modified. Operation is as below: Disconnect power from the device, press and hold down the # key or the exit button, apply power to the device more than 1 sec, keep holding the # key or the exit button until hearing twice beep sound.
