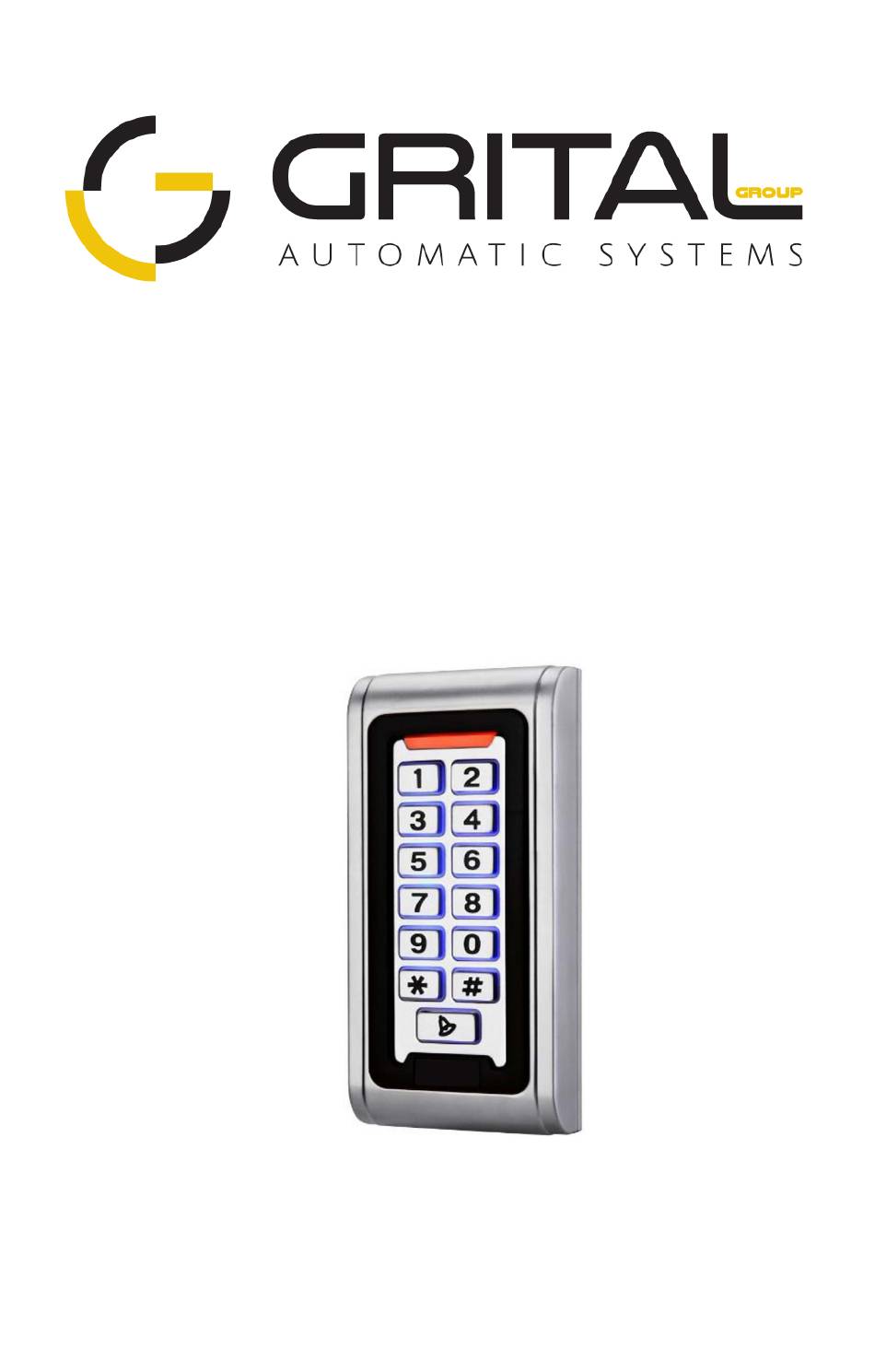

  • Page 1 A1 - W Metal Standalone Waterproof IP68 Access Control User Manual Code : 3001014 Please read the manual carefully before use this unit...
  • Page 2: Packing List

    GRITAL ACCESS CONTROL 1. Packing List Name Quantity Remarks A1-W Access Control User manual Screw driver φ20mmx60mm,Special for keypad Rubber plug φ6mmx30 mm, used for fixing Self tapping screws φ4mmx28 mm, used for fixing Star screws φ3mmx6mm, used for fixing Please ensure that all the above contents are correct.
  • Page 3: Specifications

    GRITAL ACCESS CONTROL 3. Description The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting indoor or outdoor. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish.
  • Page 4: Installation

    Operating Humidity 10%- 90% RH Waterproof Conforms to IP68 Adjustable Door Relay time 0 -99 seconds Adjustable Alarm Time 0- 3 minutes Wiegand Interface Wiegand 26 bit Wiring Connections Electric Lock, Exit Button, External Alarm.External reader 6. Installation • Remove the back cover from the keypad using the supplied special screw driver •...
  • Page 5 Blue Relay normally-on end(Connect positive electric lock"-") Purple Relay Public end, connect GND Orange Relay Closed end(connect negative electric lock"-") common power supply diagram: BELL_A BELL_B OPEN D_IN Alarm � ALARM PoMer en tie b:::k keep lri:ldu" +12V special power supply diagram: BELL_A BELL_B Doo<bell...
  • Page 6 8. To Reset to Factory Default a. Disconnect power from the unit b. Press and hold # key whilst powering the unit back up c. On hearing two "Di" release # key, system is now back factory settings Please note only installer data is restored, user data will not be affected 9.
  • Page 7 Setting the working mode: Set valid card only users Entry is by card only [I][[][] Set valid card and PIN users Entry is by card and PIN together [I]DJ[] w [] Entry is by either card or PIN (default) Set valid card or PIN users To add a user in either card or PIN mode, i.e.
  • Page 8 To delete a card user by card. Note users [] I Read Card deleted continuously without exiting programming mode To delete a card user by user ID. This [] I User ID I option can be used when a user has lost their card To delete a card user by card number.
  • Page 9 card and PIN user For a !Read card! then enter � 11.2 Door Settings Relay Output Delay Time !Ma ster cod e! � To set door relay strike time 0 ~ 99 0-99 is to set the door relay time 0-99 seconds Door Open Detection Door Open Too Long (DOTL) warning.
  • Page 10 BELL_A BELL_B � Bell • □ ALARM � • □ OPEN (Yellow) • □ D_IN (Brown) □ +12V • Access Controller � • (Purple) • (orang e) Connect...
