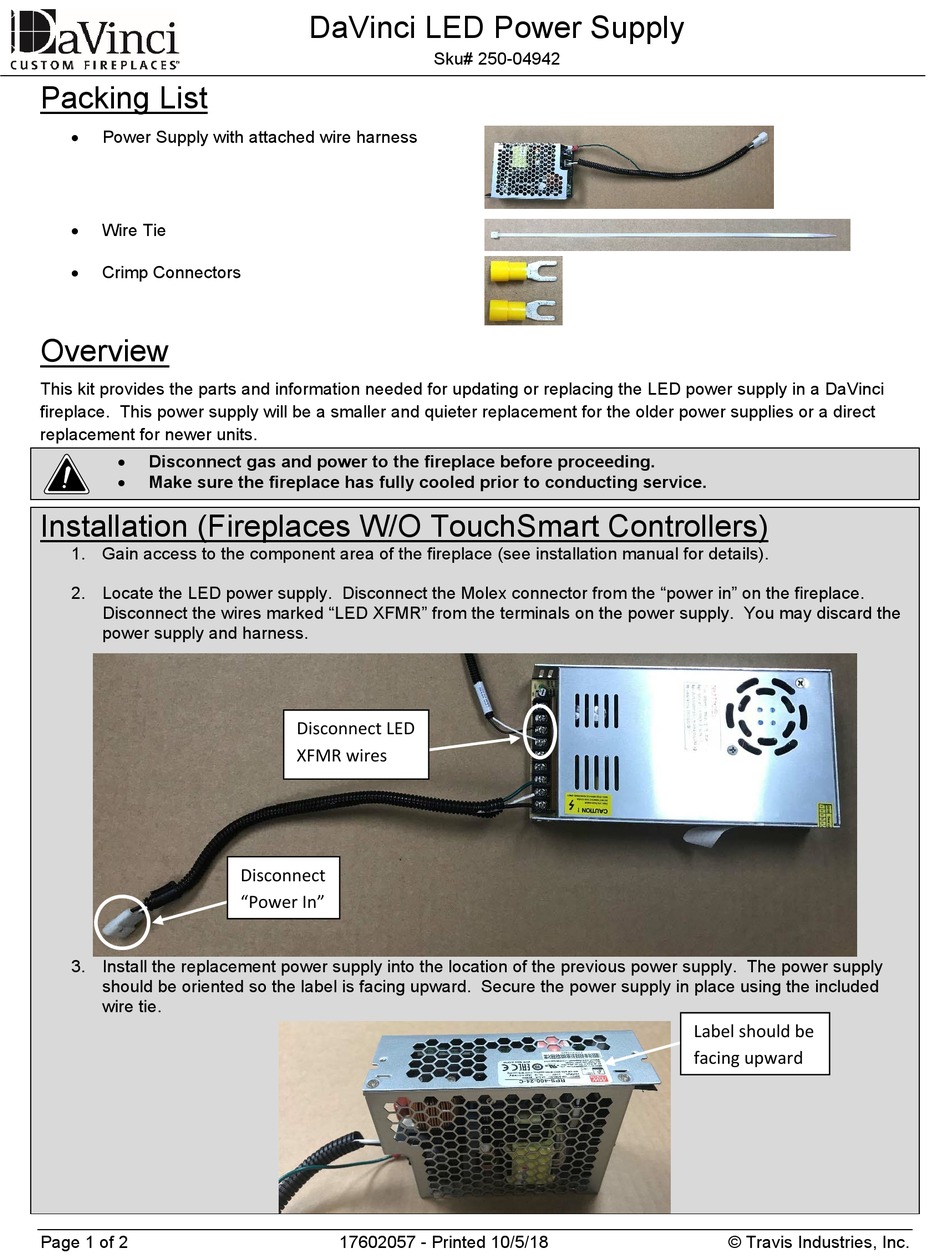

DaVinci 250-04942 Quick Start Manual

Packing List


Power Supply with attached wire harness

Wire Tie

Crimp Connectors

Overview

This kit provides the parts and information needed for updating or replacing the LED power supply in a DaVinci
fireplace. This power supply will be a smaller and quieter replacement for the older power supplies or a direct
replacement for newer units.

Disconnect gas and power to the fireplace before proceeding.

Make sure the fireplace has fully cooled prior to conducting service.

Installation (Fireplaces W/O TouchSmart Controllers)

1. Gain access to the component area of the fireplace (see installation manual for details).
2. Locate the LED power supply. Disconnect the Molex connector from the "power in" on the fireplace.
Disconnect the wires marked "LED XFMR" from the terminals on the power supply. You may discard the
power supply and harness.
3. Install the replacement power supply into the location of the previous power supply. The power supply
should be oriented so the label is facing upward. Secure the power supply in place using the included
wire tie.
Page 1 of 2
DaVinci LED Power Supply
Disconnect LED
XFMR wires
Disconnect
"Power In"
17602057 - Printed 10/5/18
Sku# 250-04942
Label should be
facing upward
© Travis Industries, Inc.
