jbc RWT Instruction Manual

Rework adjustable arm without base
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
RWT
Rework Adjustable Arm
without Base

Advertisement

loading
Need help?

Need help?

Do you have a question about the RWT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc RWT

Summary of Contents for jbc RWT

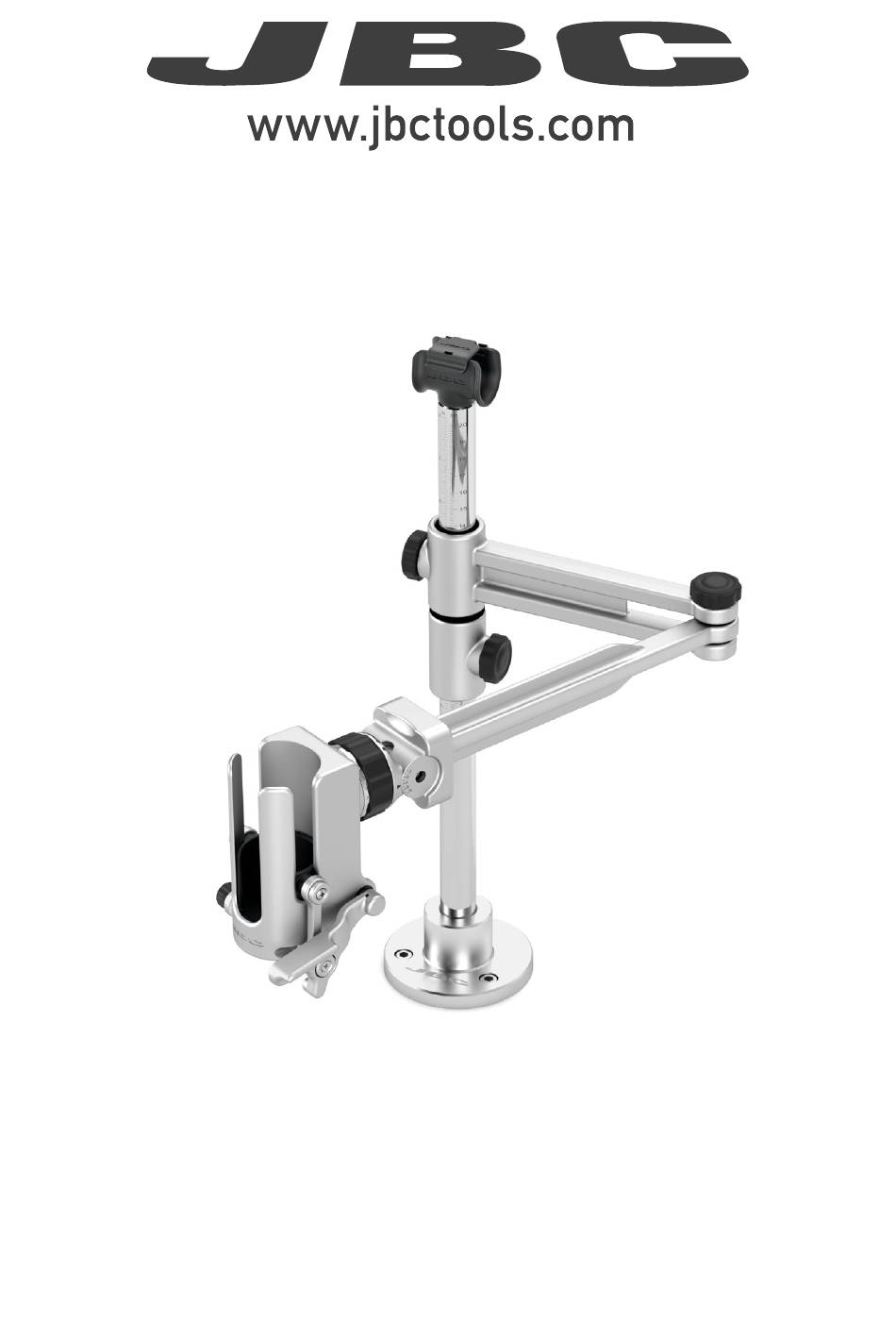

  • Page 1 INSTRUCTION MANUAL Rework Adjustable Arm without Base...

  • Page 2: Packing List

    This manual corresponds to the following reference: RWT-B Packing List The following items are included: Hose Clamp ....1 unit Height Adjustment Ref. 0017056* Flange ......1 unit Ref. 0023991* Tool Arm ......1 unit Adapter for TET ... 1 unit Adapter for JTT ...
  • Page 3 w w w.jbctools.com Features Scaled Vertical Axis (mm / in) Hose Clamp Tool Arm Hight Adjustment Flange Tool Holder Adapter for JTT / TET Headless Screw (at the rear) Flange Flange Screw (Washer and Nut at the rear)
  • Page 4 Tool Arm Assembly Flange Assembly Screws 3x Flange Fix the flange onto the work tabel with the supplied screws, nuts and washers. Work tabel Washers 3x Nuts 3x Setting up the Tool Arm Tool Arm Fit the tool arm into the flange (1) and tighten the headless screw (2) by using the allen key.
  • Page 5 w w w.jbctools.com Fit Heater into Tool Holder Insert the tool as far as possible into the tool holder with its adapter previously assembled. Lower the Tool Turn the lever to lower the tool. After having finished the working process raise the tool to lower / raise free up the workspace.
  • Page 6 Tool Arm Height Adjustment Make sure the tool arm knob is loosened (1) before adjusting the tool holder height. Slide the tool arm to the appropriate height (2) and secure its position by tightening the height Tool Arm Knob adjustment flange knob (3). The scale on the vertical aixis (4) allows to adjust Flange Knob the desired height easily.
  • Page 7 w w w.jbctools.com Tool Holder Adjustment Wheel Scale Wheel The tool holder head position enables an individual tool position adjustment. By pressing the button and/or loosen the wheel the tool holder head position can be adjusted. Both axes have a scale to carry out the task with higher precision.
  • Page 8 Accessories Preheater Sets JBC offers preheater sets for different PCB sizes. For small, medium, large and extra large PCBs. The set includes preheater with its console and PCB support. PHNK Nano Preheater Set PHSK Small Preheater Set - Heating area: - Heating area: 108 x 70 mm / 4.25 x 2.75 in...
  • Page 9 Accessories PCB Supports JBC offers preheater sets for different PCB sizes. For small, medium, large and extra large PCBs. The set includes preheater with its console and PCB support. PSN Nano PCB Support PSS Small PCB Support...

  • Page 10: Maintenance

    - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 11 w w w.jbctools.com Notes...

  • Page 12: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Rwt-b
