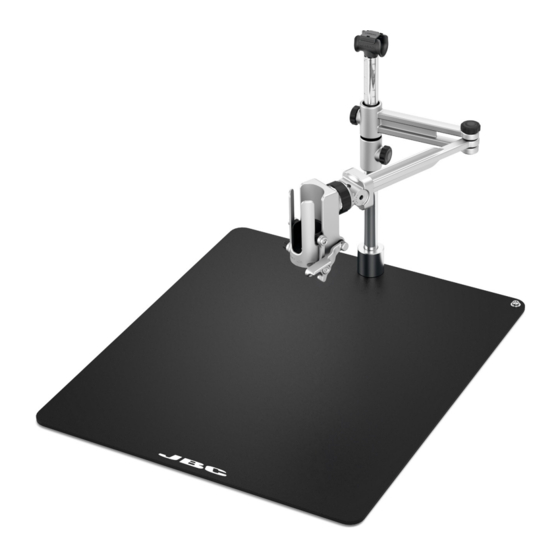

jbc RWB Instruction Manual

Rework adjustable arm for phb
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
RWB
Rework Adjustable Arm for PHB

Advertisement

loading
Need help?

Need help?

Do you have a question about the RWB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc RWB

Summary of Contents for jbc RWB

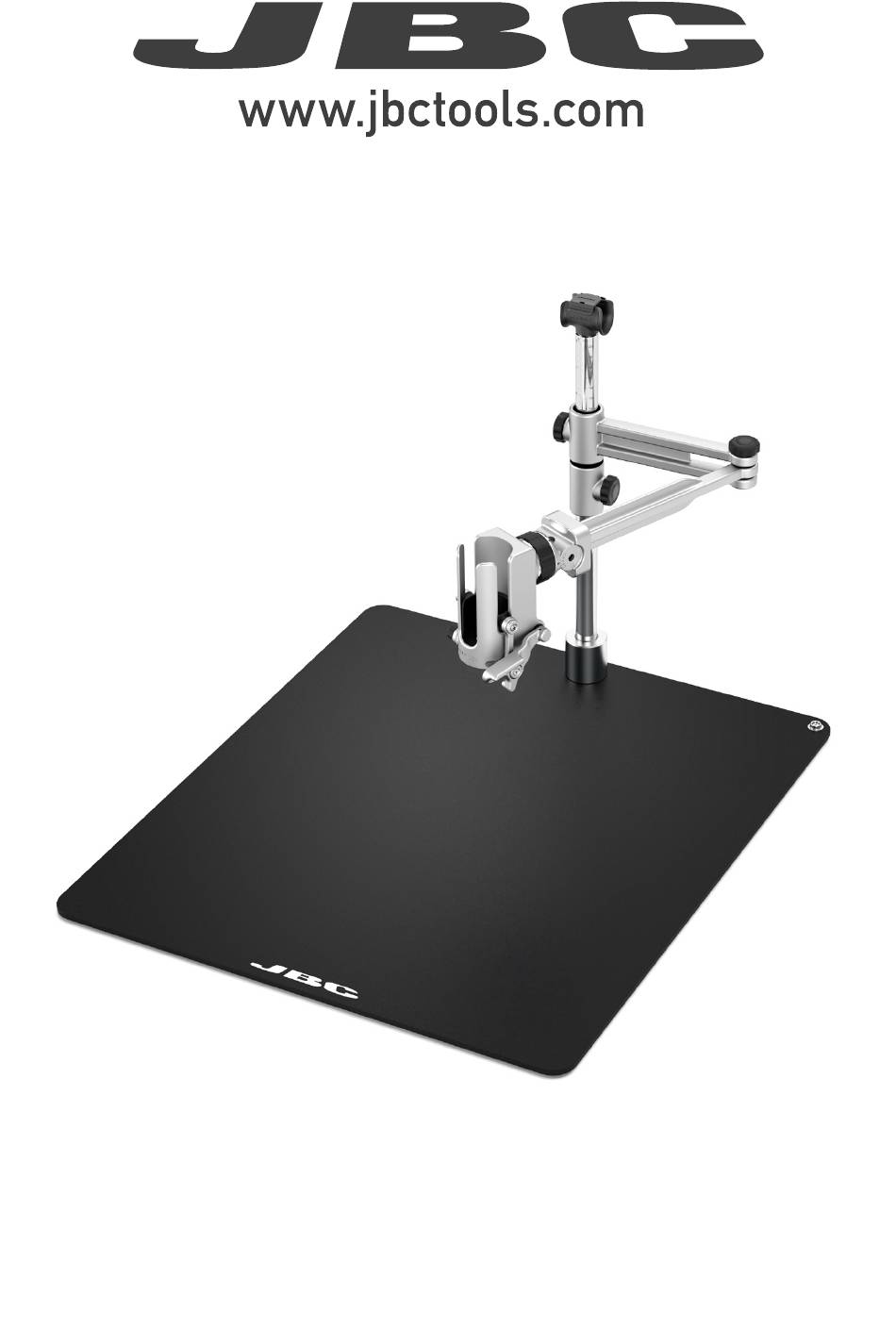

  • Page 1 INSTRUCTION MANUAL Rework Adjustable Arm for PHB...

  • Page 2: Packing List

    This manual corresponds to the following reference: RWB-B Packing List The following items are included: Tool Arm ......1 unit Base ........ 1 unit Height Adjustment Flange ......1 unit Ref. 0023991* Adapter for TET ... 1 unit Adapter for JTT ... 1 unit Hose Clamp ....
  • Page 3 w w w.jbctools.com Features Hose Clamp Scaled Vertical Axis (mm / in) Tool Arm Hight Adjustment Flange Tool Holder Headless Screw (at the rear) Adapter for JTT / TET ESD Connector (connect to ESD Common Grounding Point) Base...
  • Page 4 Tool Arm Assembly Vertical Axis Setting up the Tool Arm Fit the vertical axis into the tool arm (1) and then Tool Arm the tool arm onto the base bushing (2).Tighten the headles screw by using the allen key (3). Base Bushing Headless...
  • Page 5 w w w.jbctools.com Closure Fit Heater Hose to Hose Clamp Fit the heater hose into the hose clamp (1) and move the closure down (2). Tool Arm Height Adjustment Make sure the tool arm knob is loosened (1) before adjusting the tool holder height. Slide the tool arm to the appropriate height (2) and secure its position by tightening the height Tool Arm Knob...
  • Page 6 Tool Holder Adjustment Wheel Scale Wheel The tool holder head position enables an individual tool position adjustment. By pressing the button and/or loosen the wheel the tool holder head position can be adjusted. Both axes have a scale to carry out the task with higher precision .
  • Page 7 Accessories PHBK Large Preheater Set JBC offers PHBK for rework on medium and large PCBs. It features four thermocouple connections and a heating area which is divided in two zones: - 1 zone: 180 x 277 mm / 7.1 x 10.9 in - 2 zones: 360 x 277 mm / 4.2 x 10.9 in...

  • Page 8: Maintenance

    Maintenance Sliding Parts Axis - Check periodically that RWB is clean, especially the sliding parts and the axis. - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Replace any defective or damaged parts.
  • Page 9 w w w.jbctools.com Notes...
  • Page 10 Notes...

  • Page 11: Specifications

    Specifications Rework Adjustable Arm for PHB Ref. RWB-B - ESD safe connector - Base Dimensions (L x W): 480 x 550 mm / 18.90 x 21.65 in - Total Height: 386.5 mm / 15.22 in - Arm Height: 381.5 mm /15.02 in...
  • Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Rwb-b
