SLEIPNER AS
P.O. Box 519
N-1612 Fredrikstad
Norway
www.sleipnergroup.com
To download your language go to www.sleipnergroup.com
User Manual
Including Installation For Remote Controls
RCT-20E, RCT-21E, RCT-22E, RCT-23-E
RCR-2E, RCRS-2E
DOCUMENT ID:
DOCUMENT ID:
2955
2955
REVISION:
10
DATE:
2021
EN
LANGUAGE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCT-20E and is the answer not in the manual?

Questions and answers

Summary of Contents for Sleipner RCT-20E

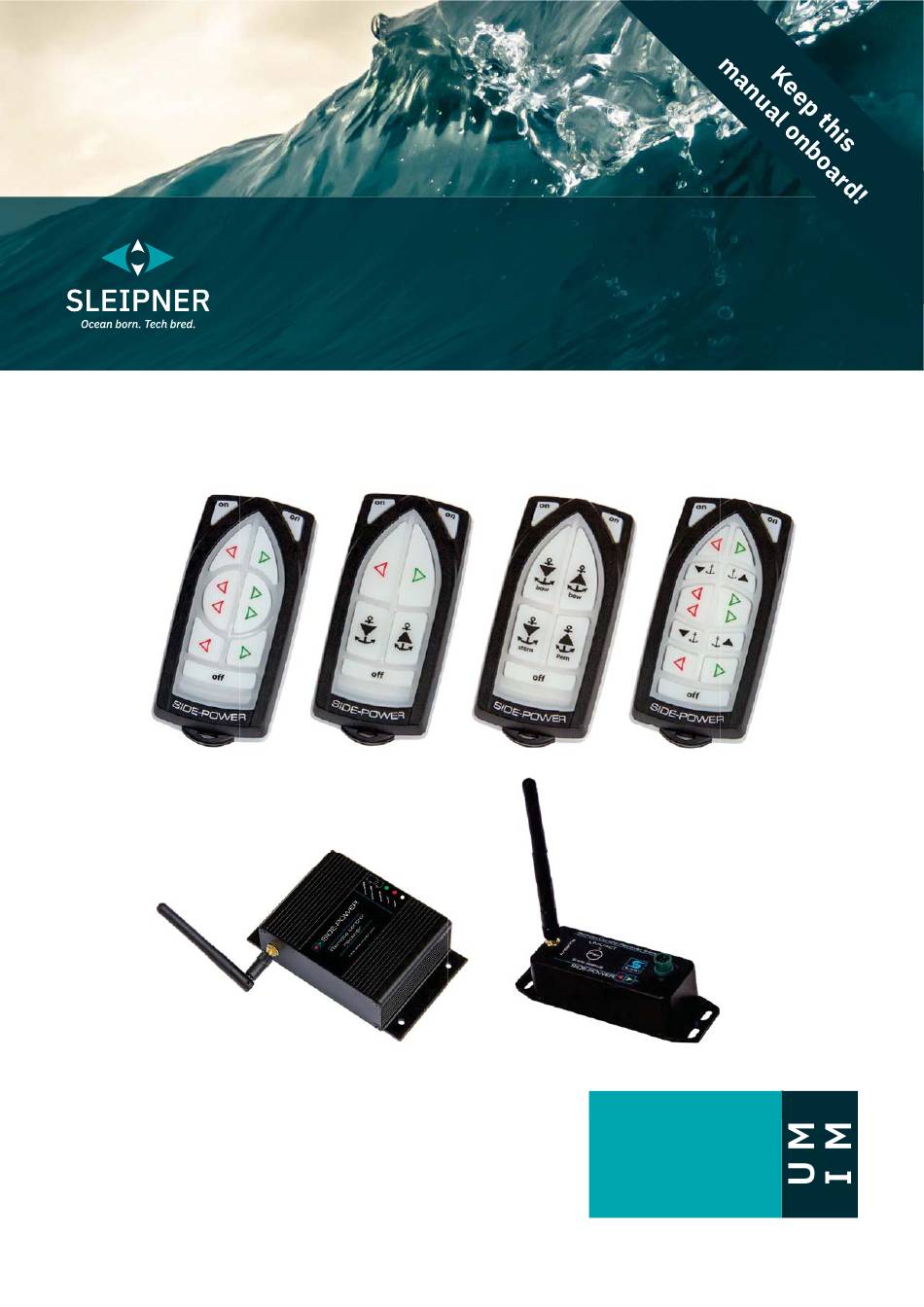

  • Page 1 User Manual Including Installation For Remote Controls RCT-20E, RCT-21E, RCT-22E, RCT-23-E RCR-2E, RCRS-2E SLEIPNER AS DOCUMENT ID: DOCUMENT ID: 2955 2955 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2021 Norway www.sleipnergroup.com LANGUAGE: To download your language go to www.sleipnergroup.com...
  • Page 2: Table Of Contents

    SM126327 | RC-22E - Fjernkontrollsett dbl. vinsj ..........6 SM126251 | RCR-2E - Fjernkontrollmottaker Receiver Installation ..............7 SM904984 | RCT-20E - Fjernkontrollsender baug/hekk Technical Wiring Diagram ..........8 - 11 SM126321 | RCT-22E - Fjernkontrollsender dbl. vinsj Output Signals Diagram ............12 Programming Additional Transmitters/ Remote Controls ..
  • Page 3: Considerations And Precautions

    If installing S-link products DO NOT connect any other control equipment to the S-link controlled products except Sleipner original S-link products or via a Sleipner supplied interface product made for interfacing with other controls. Any attempt to directly control or at all connect into the S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Sleipner products connected void and null.
  • Page 4: Remote Control Kits

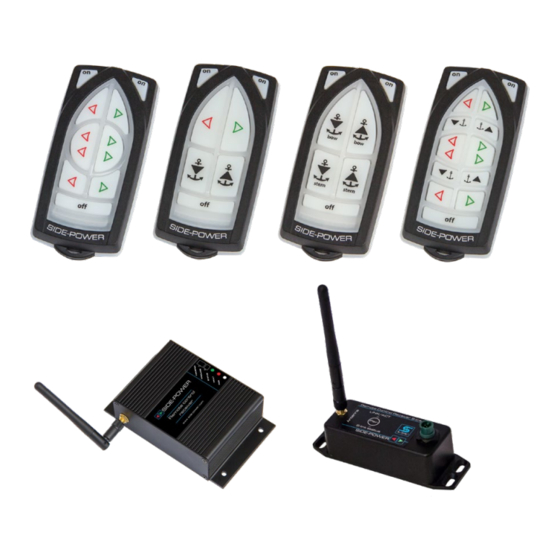

    Remote Control Kits MC_0228 Remote control kit RC-20U/E consists of: Remote control kit RC-21U/E consists of: - Receiver: Part no. RCR-2U/E - Receiver: Part no. RCR-2U/E - Holding bracket for transmitter unit: Part no. RC-HOLDER - Holding bracket for transmitter unit: Part no. RC-HOLDER Remote control kit RC-22U consists of: Remote control kit RC-23U consists of: - Receiver: Part no.
  • Page 5: Panel Layout & Functions

    Remote Layout & Functions MC_0175 Remote Transmitter RCT-20(U/E) RCT-21(U/E) Turn ‘ON’ the Turn ‘ON’ the remote radio remote radio Bow directional control for Dual Bow and stern Directional control the thruster. directional control for for the thruster. the thruster. Windlass release Stern directional control for Windlass the thruster.
  • Page 6 Ø 4.5 Ø 3 Ø 3 MG_0191 MC_0176 Transmitter Receiver Power feed 12V or 24V power source RF-power <10mW <10mW Operation temp. -10°C / +55°C -10°C / +55°C 107x47x21 83x136x36 Voltage 8-30V Standby power <300mW Load, max MC_0176 Transmitter Receiver Power feed 12V or 24V power source Operation temp.
  • Page 7: Receiver Installation

    Mount the receiver by using the 4 holes MG_0193 Receiver Installation MC_0177 ! Please refer to the graphic for special considerations relating to your model ! navigation instruments, radio communication devices, electric motors and generators. • Install the receiver outside of shielded areas for radio signals, i.e. boxes made of metals or other material with shielding properties. •...
  • Page 8: Technical Wiring Diagram

    Technical Wiring Diagram IMPORTANT Cables/wires must be cable tied well. To Thruster To Thruster Control Panel Control Panel RCT-20(U/E) RCT-20(U/E) STERN To Bow To Stern Thruster Thruster BLACK FUSE Battery 12/24V IMPORTANT Power cables must be connected to the battery as shown. Remaining wires must be cable tied well.
  • Page 9 Technical Wiring Diagram IMPORTANT Cables/wires must be cable tied well. To Thruster To Thruster Control Panel Control Panel RCT-21(U/E) RCT-21(U/E) STERN To Bow To Stern Thruster Thruster BLACK FUSE Battery 12/24V IMPORTANT Power cables must be connected to the battery as shown. Remaining wires must be cable tied well.
  • Page 10 Technical Wiring Diagram IMPORTANT Cables/wires must be cable tied well. To Thruster To Thruster Control Panel Control Panel RCT-22(U/E) RCT-22(U/E) STERN To Bow To Stern Thruster Thruster BLACK FUSE Battery 12/24V IMPORTANT Power cables must be connected to the battery as shown. Remaining wires must be cable tied well.
  • Page 11 Technical Wiring Diagram IMPORTANT Cables/wires must be cable tied well. To Thruster To Thruster Control Panel Control Panel RCT-23(U/E) RCT-23(U/E) STERN To Bow To Stern Thruster Thruster BLACK FUSE Battery 12/24V IMPORTANT Power cables must be connected to the battery as shown. Remaining wires must be cable tied well.
  • Page 12: Output Signals Diagram

    Output Signals Diagram RED - Thruster Positive Thruster Bow BLUE - Thruster STBD GREY - Thruster PORT YELLOW - Automatic Main switch Enable RED - Thruster Positive BLUE - Thruster STBD Thruster Stern GREY - Thruster PORT YELLOW - Automatic Main switch Enable RED - Common BLUE - Windlass IN Windlass Bow...
  • Page 13: Programming Additional Transmitters/ Remote Controls

    Pair Button Pair Button Pair Button Pair Button MG_0197 Programming Additional Transmitters/ Remote Controls MC_0181 ! Please refer to the graphic for special considerations relating to your model ! The original transmitter and receiver have the same factory pre-set code so that no programming is necessary. When additional transmitters remote controls are to be used, the additional transmitters/remote controls have to be paired with the receiver.
  • Page 14: S-Link Receiver Installation

    Mount the receiver by using the 4 holes MG_0193 S-Link Receiver Installation MC_0183 ! Please refer to the graphic for special considerations relating to your model ! navigation instruments, radio communication devices, electric motors and generators. • Install the receiver outside of shielded areas for radio signals, i.e. boxes made of metals or other material with shielding properties. •...
  • Page 15: Technical Wiring Diagram

    Technical Wiring Diagram MG_0195 RCT 20E, 21E, 22E, 23E & REMOTE RECEIVER 2955 2021...
  • Page 16: S-Link Receiver Installation

    Pair Button Pair Button Pair Button Pair Button MG_0200 Programming Additional Transmitters/ Remote Controls MC_0202 ! Please refer to the graphic for special considerations relating to your model ! The original transmitter and receiver have the same factory pre-set code so that no programming is necessary. When additional transmitters remote controls are to be used, the additional transmitters/remote controls have to be paired with the receiver.
  • Page 17: Transmitter Installation And Battery Replacement

    Battery MG_0194 Transmitter Installation and Battery Replacement MC_0178 ! Please refer to the graphic for special considerations relating to your model ! Open the transmitter case by removing the 3 torx screws. Remove the battery by inserting a screwdriver or similar between battery and holder at point A and flip the battery out, taking care not to damage the battery grips at point B.
  • Page 18: Important Thruster User Considerations And Precautions

    IMPORTANT Failure to follow the Considerations and precautions can cause serious injury / damage and will render all warranty given by Sleipner Motor AS VOID. be turned off in case of serious malfunction. • Always turn the control device off when the thruster is not in use.
  • Page 19: Thruster Operation

    Thruster Operation MC_0180 ! Please refer to the graphic for special considerations relating to your model ! Take time to practice operation in open water to become familiar with the thruster and to avoid damages to your boat or people. How to use a Bow Thruster 1.
  • Page 20 Activating the bow thruster Activating the stern thruster Activating both bow and Activating both bow and stern thruster to push the stern thruster to rotate the boat sideways boat on axis Activating lowers Anchor/ Activating raises Anchor/ Windlass Windlass MG_0190 RCT 20E, 21E, 22E, 23E &...
  • Page 21: Transmitter Led Operation And Alarm Indication

    Transmitter LED Operation and Alarm Indication MC_0182 State LED status Alarm status Transmitter ON The yellow LED’s No sound blink each second Buttons activated The yellow LED’s No sound blink fast Pairing mode All LED’s on No sound Connection lost Red LED is blink- 3 beeps from the ing once each...
  • Page 22: Service And Support

    Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents RCT 20E, 21E, 22E, 23E & REMOTE RECEIVER...
  • Page 23 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................RCT 20E, 21E, 22E, 23E & REMOTE RECEIVER 2955 2021...
  • Page 24 © Copyright Sleipner Motor AS, 2021 The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the...
