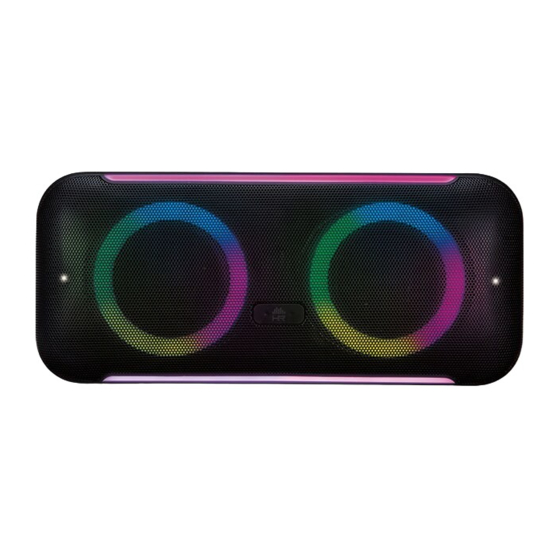

HEADRUSH HRSP 5039 Instruction Manual

WIRELESS SPEAKER
HRSP 5039
RAVE
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth
®
under license. Other trademarks and trade names are those of their respective owners.

COMPONENT IDENTIFICATION

1. TWS pair ON/OFF button
2. TWS function indicator
3. Light mode button
4. Play/Pause button
5. Decrease volume/Previous track button
6. Increase volume/Next track button
7. Power ON/OFF
8. Power LED indicator

PRODUCT OVERVIEW

You can use this item with any compatible, Bluetooth
read this manual first before using.
This speaker has an IPX6 rating: protected against high-pressure water jets from all directions.
OPERATION
TO
Play/pause
Next track
Previous track
Increase volume
Decrease volume
Disconnect Bluetooth ®
CHARGING
Use the included charging cable to fully charge the speaker before first use. It will take approximately
5 hours to fully charge.
• The red LED will be ON while the speaker is charging
• The red LED will turn OFF once charging is complete
When the battery is low, the speaker will beep every few seconds, please charge
TIP:
the speaker or it will turn OFF
.
PAIRING
1. Press and hold the button to turn the speaker ON. The white LED will flash.
2. Turn Bluetooth ON in your device settings and select "HRSP 5039".
®
3. Once paired successfully, the white LED will be ON and the speaker will chime.
4. If you fail to pair your device or you want to pair it with a new device, please repeat
the steps outlined above.
NOTE: If there is no device paired within 30 minutes the speaker will turn OFF. To un-pair, press the
button or disconnect in your device settings.
NOTE: The speaker will automatically pair with previously paired devices provided the Bluetooth
ON and within range. The speaker will chime to indicate that it has been successfully re-paired.
TWS (TRUE WIRELESS STEREO) CONNECTION
Connect two HR Rave speakers for a true wireless stereo experience. To connect:
1. Ensure neither speaker is connected to your device via Bluetooth
OFF on your device.
2. Press and hold the power buttons on each speaker to turn on speakers. Both speaker power
indicators will flash.
3. Press either of the two speaker unit's TWS Button for 1 second. The TWS indicator will start
flashing and you will hear a "beep" sound next. When you see the TWS indicator lights "ON"
after flashing on both speakers, the speakers are paired to each other.
4. Next, the power indicator on each speaker will keep flashing. Turn Bluetooth
device setting and select "HRSP 5039". The power indicator of both speakers will then stay "ON"
to confirm your pairing is successfully connected.
NOTE: Once paired, the two speakers will automatically pair each time they are turned ON, should
you wish to unpair them, press the button to disconnect. The TWS function indicator on both
speakers will be off, indicating that the two speakers are no longer paired.
LINE-IN (AUX) MODE
1. Press and hold the button to turn the speaker ON.
2. Use the included 3.5mm audio cable to connect the speaker into the headphone or line-out jack
of your audio device. Plug the other end of the cable into the Aux jack located on the back of the
device. Device will enter AUX mode automatically and the white LED indicator will turn ON.
3. Adjust the volume of your audio device to the desired level.
4. Press the or buttons on the device to adjust the system volume.
5. Press the button to MUTE the system volume.
BLUETOOTH MODE
®
If you are using a Bluetooth audio device, make sure you are within 20-30 ft.
®
1. Press and hold the button to turn the speaker ON. The speaker will beep to indicate
it is in Bluetooth mode and the white LED indicator (indicates mode) will flash quickly.
2. Turn ON Bluetooth in your device settings.
®
3. Select "HRSP 5039". No password is required.
4. Adjust the volume on your audio device to the desired level.
LIGHT EFFECT SELECTION WITHOUT PARTY LIGHTS
Press and hold the button to turn the lights ON.
1. Press and hold button to turn the top and bottom lights OFF.
2. Press and hold button again to turn the centre light OFF.
3. Press and hold button again to turn all lights OFF.
4. Press and hold button again to turn all lights ON.
5. Press the button twice to turn the white flashing lights on both sides of
the speaker ON. Press twice again to turn them OFF.
SIG, Inc. and any use of such marks by The Source (Bell) Electronics Inc. is
®
1 2 3 4 5
-enabled device to stream music. Please
®
DO THIS
Press the button.
Hold down the button.
Hold down the button.
Press the button.
Press the button.
Press and hold the button.
and turn Bluetooth
® ®
on in your
®
9. DC 5V charge in (5V/1000mA)
6 7 8
10. Charging LED indicator
11. Line-in input jack
LIGHT EFFECT SELECTION WITH PARTY LIGHTS ON
Press the button to turn the lights ON in party light mode. Press again to rotate through
the following light modes:
1. Rainbow: colours rotate in slow motion. Lights do not pulse to music.
2. Remix: blue–purple–red–yellow–green–sky blue, pulsing to music, flashing through one
colour at a time.
3. Rainbow rotation: blue purple–red purple–blue red. Lights do not pulse to music.
4. Lights flash: changing colours from sky blue–blue–purple–red–yellow–green and
pulsing to music.
5. Gradual: colours change from sky blue–blue–purple–red–yellow–green, rotating in slow
motion. Lights do not pulse to music.
6. Gentle streaming: colours changing from sky blue–blue–purple–red–yellow–green. Lights
do not pulse to music.
7. Frozen: stays on the last colour of the sixth light mode. (i.e. If you press the button when
the light is red, the LED will stay red.).
8. Lights OFF.
RESET SPEAKER UNIT:
Hold "Volume +" button for 3 seconds under Bluetooth
unit will reset and there is reset power on prompt tone come out.
TROUBLESHOOTING
No Power:
• Make sure the speaker is turned ON
• Make sure the speaker is fully charged
No Sound:
• Make sure the speaker volume is not at the minimum setting
• Make sure the connected audio device is playing audio
Sound is distored:
• Press and hold the button for 2 seconds
Cannot pair the speaker with my Bluetooth
• Make sure the Bluetooth mode is turned ON
®
• Your Bluetooth device may be out of range. Try moving it closer to the speaker
®
• Move your Bluetooth device and/or the speaker away from other devices that generate
®
electromagnetic interference, such as phones, microwave oven, wireless network routers, or other
Bluetooth devices
®
Light doesn't turn ON:
is • Press light button or hold light button for 2 seconds
®
NOTE: If the speaker beeps every few seconds, the battery is low. Please recharge
the speaker.
TECHNICAL SPECIFICATIONS
Bluetooth version: V5.1
®
Battery capacity: 7.4V, 3000mAh
Frequency response: 80Hz -18kHz
Operation distance: Up to 10m/33ft.
TWS distance: 3.5m/11.5ft.
Output power: 20Wx2 (Max)
Play time: 10 hours
Drivers: 77mm
Standby time: 22 hours
NOTE: his speaker is in compliance with the specified Bluetooth
not guarantee compatibility with all the functions on every Bluetooth
Please check your mobile phone's user manual for compatibility and functionality.
WARNING: Changes or modifications to this device not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
RSS 247
This device contains licence-exempt transmitter/receiver(s) that comply with Innovation Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
IC: 255A-8092919
INSTRUCTION MANUAL

WHAT'S INCLUDED:

• Speaker
• Micro USB charging cable
• 3.5mm audio cable
• Instruction Manual
DC 5V IN AUX IN
9 10 11
unpair status,
®
device:
®
version. It does
®
enabled device.
®
8092919
