APS 5 Battery Pack
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the APS 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar APS 5

Summary of Contents for Pulsar APS 5

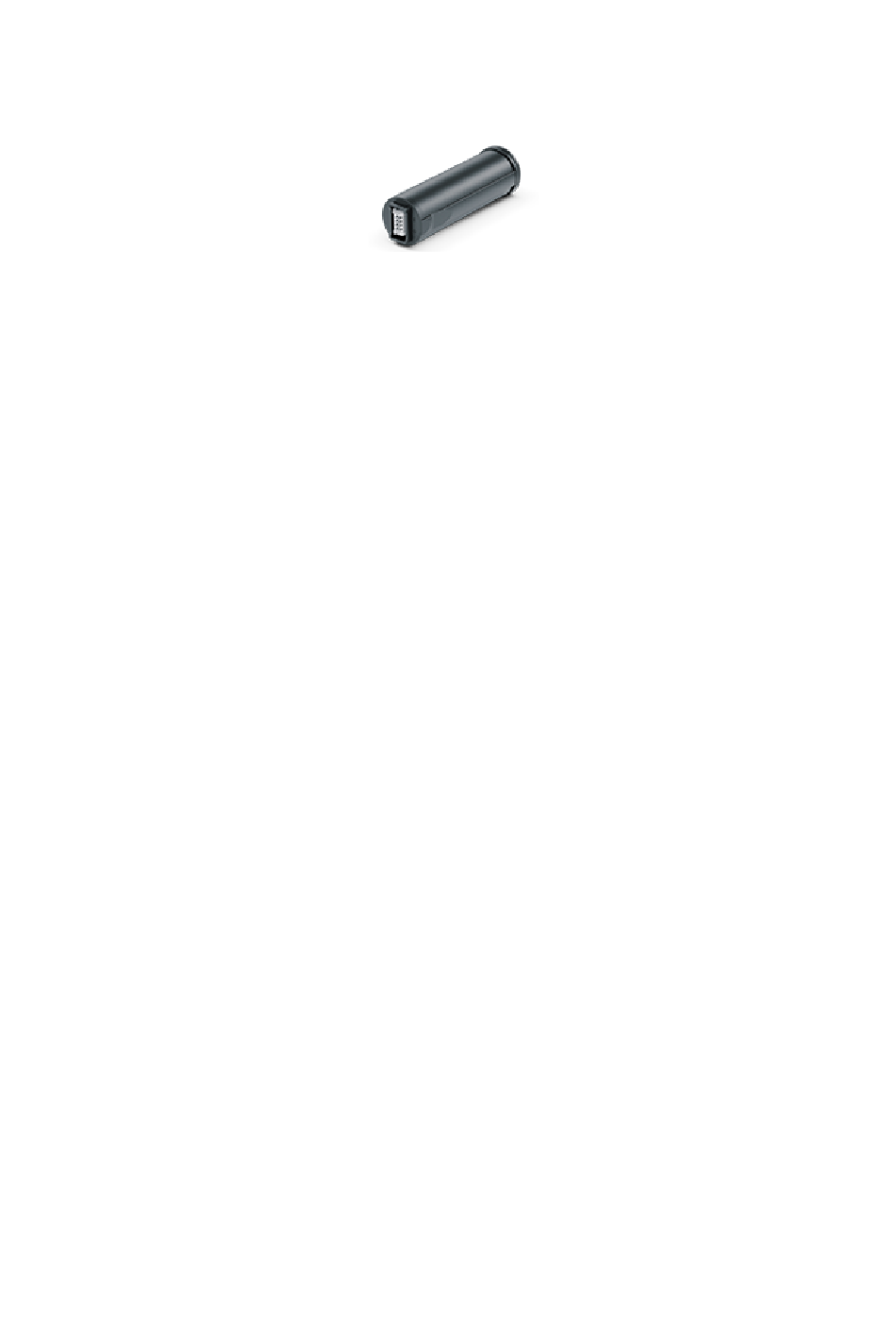

  • Page 1 APS 5 Battery Pack Manual...

  • Page 2: Table Of Contents

    Content Specifications Description Package Contents Battery Charging Precautions Recommendations for Use Legal Compliances and Disclaimers...

  • Page 3: Specifications

    Specifications APS 5 Model APS 5 79181 Type Li-ion Nominal capacity at +22°С 4900 mAh (72°F) Rated voltage 3.7 V Charge/discharge cycles, minimum* Charge/discharge ambient 0°С...+35°С/-25°С...+50°С temperature (+32°F…+95°F/-13°F…+122°F) 84 × 25 × 25 mm Dimensions (3.3 × 1 × 1 inches) Weight 0.08 kg (2.9 oz)

  • Page 5: Description

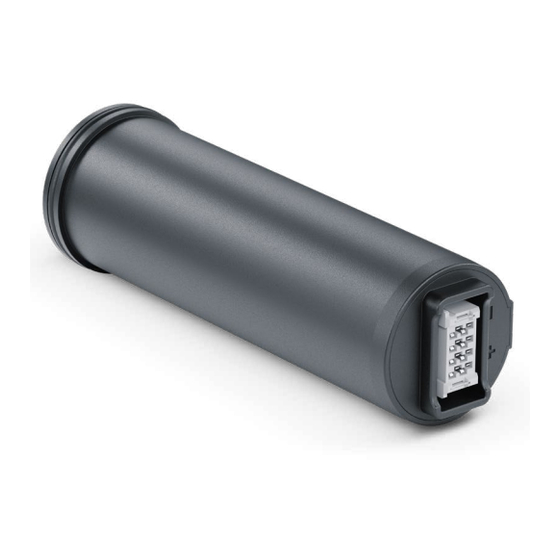

    Description APS 5 rechargeable lithium-ion power supplies are designed for use with Pulsar thermal imaging devices. APS 5 batteries support USB Power Delivery fast charging technology when using a standard charging set (charger, USB Type-C cable, power adapter). The rechargeable battery can be used separately, with a battery-locking cover (for Axion XQ/LRF XQ, Axion 2, Proton devices), or an adapter (for Talion devices).

  • Page 6: Package Contents

    Package Contents APS 5 battery APS 5 battery-locking cover Adapter for Talions Operating Manual Warranty card...

  • Page 7: Battery Charging

    Battery Charging 1. Insert the battery (1) along the guide to the stop into the APS 5* charger slot (4) (see. Fig.). 2. Connect the plug of the USB Type-C cable* (7) to the USB Type-C connector of the power adapter*(3). Plug the power adapter (3) into a socket 100-240 V (110 V for US) (6).
  • Page 8 LED indication (2) in the Battery Level battery charging mode Battery charge level is from 0% to 25% Battery charge level is from 26% to 50% Battery charge level is from 51% to 80% Battery charge level is from 81% to 99% Battery is fully charged.
  • Page 9 Attention! When using a power adapter that does not support USB Power Delivery fast charging technology, the flicker frequency of LED indicators is reduced by 3 times. Attention! The charger heats up during fast charging. Excess heat is removed through the radiator and does not affect the device operation. * Purchased separately or supplied as package contents of a device.

  • Page 10: Precautions

    Precautions Always use the APS 5 charger supplied with the device (or purchased separately) to charge APS 5 batteries. Using the unsuitable charger can cause irreparable damage to the battery and fire. Do not charge the battery immediately after brining it from cold to warm. Wait at least 30 minutes for the battery to warm up.

  • Page 11: Recommendations For Use

    Recommendations for Use The battery should be partially charged for long-term storage – 50 to 80 The battery should be charged at an ambient temperature of 0°C…+35°C (+32°F…+95°F). Otherwise, lifespan of the battery will decrease significantly. When using the battery at sub-zero temperatures, the battery capacity decreases, this is normal and not a defect.

  • Page 12: Legal Compliances And Disclaimers

    Legal Compliances and Disclaimers The manufacturer reserves the right at any time, without mandatory notice, to make changes to the package contents, design and characteristics that do not impair the quality of the product. Warranty for the Battery Pack is one year.
